[OpenLayers] 가시권 분석(WPS Plugin RadialLineOfSight)

DEM데이터로 GeoServer의 WPS Plugin RadialLineOfSight으로 가시권 분석을 하는 예제입니다.

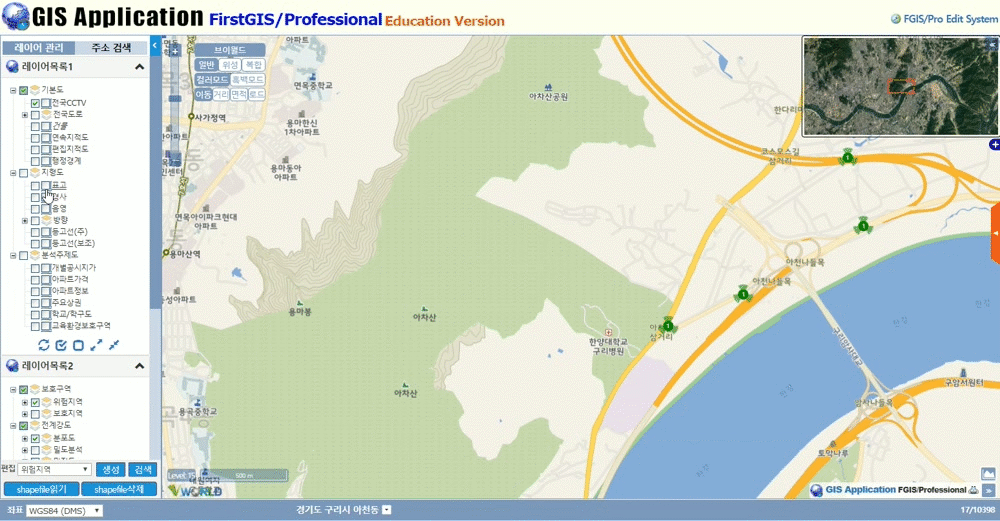

* 데모버젼 : "FirstGIS/Professional Education Version 1.0"

(위 링크를 PC용[IE에서는 흑백모드버튼 제거됨]이고, 모바일에서 실행하셔야 모바일용 UI모드로 실행합니다.

 단, 모바일 기종에 따라 WebGL 사용한 함수지원여부로 브이월드3D가 구동 안될수도있습니다)

* 주요소스

- WPS문에서 "BoundingBox"을 넣어야 속도가 난다.

- 결과값을 Json으로 가져온다, 단 결과의 "features"은 JSON형식이라 OpenLayers의 features로 바꾸고 스타일도 준다.

function RadialLineOfSight(myMapPoint){

    var sText =

        '<wps:Execute version="1.0.0" service="WPS"'

        +    ' xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://www.opengis.net/wps/1.0.0"'

        +    ' xmlns:wfs="http://www.opengis.net/wfs" xmlns:wps="http://www.opengis.net/wps/1.0.0"'

        +    ' xmlns:ows="http://www.opengis.net/ows/1.1" xmlns:gml="http://www.opengis.net/gml"'

        +    ' xmlns:ogc="http://www.opengis.net/ogc" xmlns:wcs="http://www.opengis.net/wcs/1.1.1"'

        +    ' xmlns:xlink="http://www.w3.org/1999/xlink"'

        +    ' xsi:schemaLocation="http://www.opengis.net/wps/1.0.0 http://schemas.opengis.net/wps/1.0.0/wpsAll.xsd">'

        +     '<ows:Identifier>statistics:RadialLineOfSight</ows:Identifier>'

        +     '<wps:DataInputs>'

        +       '<wps:Input>'

        +         '<ows:Identifier>inputCoverage</ows:Identifier>'

        +         '<wps:Reference mimeType="image/tiff" xlink:href="http://geoserver/wcs" method="POST">'

        +           '<wps:Body>'

        +             '<wcs:GetCoverage service="WCS" version="1.1.1">'

        +               '<ows:Identifier>FGIS:K_DEM</ows:Identifier>'

        +               '<wcs:DomainSubset>'

        +                 '<ows:BoundingBox crs="http://www.opengis.net/gml/srs/epsg.xml#3857">'

        +                   '<ows:LowerCorner>'+ (myMapPoint[0]-1010).toFixed()+' '+ (myMapPoint[1]-1010).toFixed()+'</ows:LowerCorner>'

        +                   '<ows:UpperCorner>'+ (myMapPoint[0]+1010).toFixed()+' '+ (myMapPoint[1]+1010).toFixed()+'</ows:UpperCorner>'

        +                 '</ows:BoundingBox>'

        +               '</wcs:DomainSubset>'

        +               '<wcs:Output format="image/tiff"/>'

        +             '</wcs:GetCoverage>'

        +           '</wps:Body>'

        +         '</wps:Reference>'

        +       '</wps:Input>'

        +       '<wps:Input>'

        +         '<ows:Identifier>observerPoint</ows:Identifier>'

        +         '<wps:Data>'

        +           '<wps:ComplexData mimeType="application/wkt"><![CDATA['

        +             'POINT(' + myMapPoint[0].toFixed() + ' ' + myMapPoint[1].toFixed() + ')'

        +           ']]></wps:ComplexData>'

        +         '</wps:Data>'

        +       '</wps:Input>'

        +       '<wps:Input>'

        +         '<ows:Identifier>observerOffset</ows:Identifier>'

        +         '<wps:Data>'

        +           '<wps:LiteralData>1.8</wps:LiteralData>'

        +         '</wps:Data>'

        +       '</wps:Input>'

        +       '<wps:Input>'

        +         '<ows:Identifier>radius</ows:Identifier>'

        +         '<wps:Data>'

        +           '<wps:LiteralData>1000</wps:LiteralData>'

        +         '</wps:Data>'

        +       '</wps:Input>'



        +     '</wps:DataInputs>'

        +    '<wps:ResponseForm>'

        +     '<wps:RawDataOutput mimeType="application/json">'

        +      '<ows:Identifier>result</ows:Identifier>'

        +     '</wps:RawDataOutput>'

        +    '</wps:ResponseForm>'

        +   '</wps:Execute>';



    MapControlMode("MOVE");

    MagBox_overlayShow(undefined, "");

    Drawsketch_VectorLayer.getSource().clear();

    LoadingWithMask();

    var urlstring = geoserverURL  + "ows";



    CALL_XMLHTTP_XML(urlstring, sText, Call_back, onFault);

    function Call_back (item_data){

        try{

            var New_Features = [];

            var _features = item_data.features;

            if(_features && _features.length >0){

                for(var i=0; i< _features.length; i++) {

                    var _feature = _features[i];

                    var _Visible = _feature.properties["Visible"];

                    var _color = (_Visible=="0")?"#FF0000":"#0000FF";

                    var _Style = new ol.style.Style({

                        stroke: new ol.style.Stroke({

                           color: _color,

                           width: 1,

                           opacity: 0.7

                         })

                    });

                    var New_feature =  (new ol.format.GeoJSON()).readFeature(_feature.geometry);

                    New_feature.id = _feature.id;

                    New_feature.setStyle(_Style);

                    New_Features.push(New_feature);

                }

            }

            Drawsketch_VectorLayer.getSource().addFeatures(New_Features);

        }catch (e){



        }

        closeLoadingWithMask();

    }

    function onFault(e){

        closeLoadingWithMask();

    }

}
