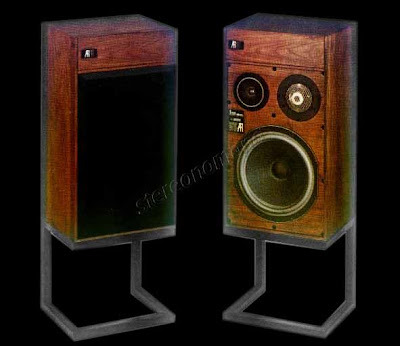

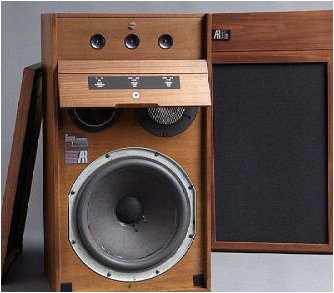

AR 10ㅠ speaker, ar10ㅠ(파이)스피커
AR 10 파이는 신설계라고 할 수 있는 WEC(우퍼 보정 회로)를 채용.
방에 설치 할 때 벽과 바닥과의 상호 관계에 의해 생기는 저음역의 특성 변화를 3단 스위치로 보정을 시켜 항상 적당한 벨런스를 얻어 최고의 성능을 발휘하도록 설계를 하였다
무게는 24.9kg이다.ar 3a와 동일한 유니트를 사용했다고 한다.텔레다인사의 모델입니다.
Victor Campos라는 신예 기술자의 작품인 AR-10파이, AR-11 등의 신제품을 1977년에 선보였다.
1977년 이후가 New AR(또는 Early Teledyne) 시기라 할 수 있다.
AR-10 pie 등에는 Unit(특히 고음 트위터)을 새로 설계하고,
Roy가 연구했던 음의 방사에 대한 고려를 가변 네트?의 기술을 적용하는 등
좀 더 현대적인 음으로 고역이 잘 뻗어나가고 저역이 좀더 단단하게 된다.
10π 과 11(ar-11의 우퍼는 ar-3a후기형 우퍼유닛을 사용) 두 모델은 고역 유니트와 중역 유니트를 소프트 돔 형식으로 설계하여 한차원 높은 소리를 들려준다
Drive units: 300mm (12 in.) acoustic suspension woofer, 38mm (1 1/2 in.) hemispherical dome midrange and 19mm (3/4 in.) hemispherical dome highrange.

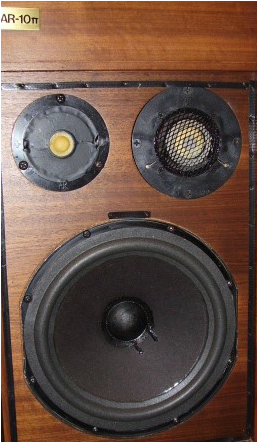

유닛구성은 12“페라이트 폼엣지 우퍼
1.5”돔형 페라이트 중음
0.75“돔형 페라이트 트윗으로 3Way
무 게; 약 24.9kg(1개당)
음 압; 4옴에 86db
크로스오버 주파스; 525hz~5000hz
재생주파수 : 27~30,000Hz 크 기; W35.4cm*H63.5cm*D27.3cm ( 폭354×높이635×깊이273mm

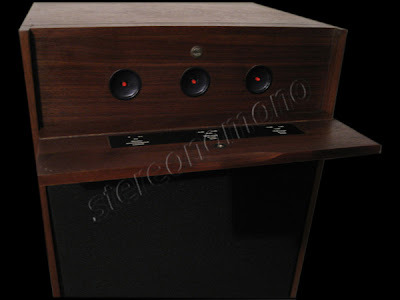

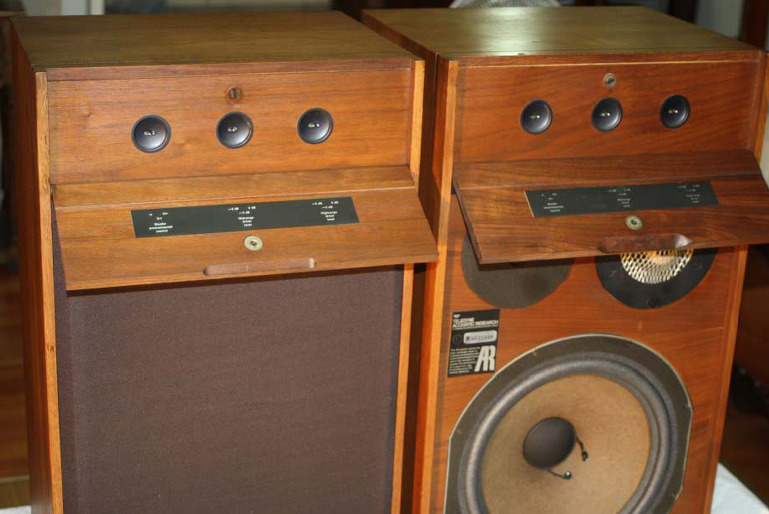

고음, 중음, 저음 각각의 조절 어테뉴에이터가 전면 상부에 부착되었다.
AR3a를 이어 받아 제조된 모델로 AR11과도 유사한 면도 있으나,훨씬 상급기이다.
소리성향은 ar3a보다 현대적인 성향으로 제작했다는 제작사의 소개가 있었다

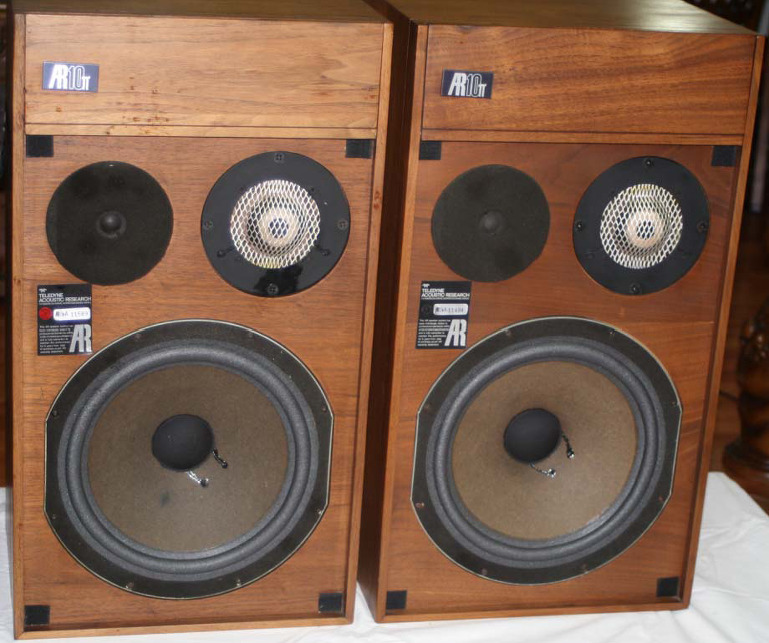

AR3A의 중기형 유닛일체를 채용하여 1977년 발매한 70년대 후반 텔레다인사의 AR 10파이입니다
텔레다인 모델은 실런트로 우퍼와 인클로져 사이를 밀폐하지 않습니다. 발포비닐로 우퍼 밀폐를 하게끔 되어 있습니다.
AR-10π 스피커는
AR3A의 중기형 유닛일체를 채용하여 1977년 발매한 스피커다
AR사는 음악을 좋아하는 에드가 빌쳐(Edgar Villchur)에 의해 설립되었다. 그는 세계 최초로 돔 트위터를 개발해 냈을 뿐만 아니라 턴테이블에 있어서도 당시로는 획기적인 프로팅 시스템(3점지지 부동 샤시구조)을 완성했다. 또한 AR사는 최초로 북셀프형 스피커를 개발한 회사이다. 당시에는 대형 플로어 타입 스피커가 강세였는데 AR사는 부단한 노력으로 북셀프타입의 완전밀폐형(Acoustic Suspension) 스피커를 개발했다. 그것이 AR-1이다. 구형 AR스피커의 특징은 밀폐형으로 무거운 저음과 자연스러운 고역에 있다.
피셔tr앰프 500tx와 매칭이 좋다.
매칭-쿼드33+303, 마란츠 2330 1180,1250,1300 등,매킨토시 MC7300,피셔 800T, Kenwood KR-9600 (8 옴으로 160w/channel)
The AR-10 π is a new speaker system from Acoustic Research that addresses itself to these considerations. Under actual listening conditions, the AR-10 π delivers as flat an energy response as the state of the art permits. And it is able to maintain this response characteristic under agreat variety of conditions of use. The result is a further significant improvement in the degree of realism with which music can be heard in the home.
The AR-10 π - is designed to reproduce music in the home as accurately as the state of the art permits. Its ability in this respect represents a number of significant evolutionary improvements over previous designs. Further the AR-10 π - is intended to offer an unprecedented degree of flexibility without any sacrifice in accuracy. The combination of these characteristic, we believe, represents a significant step forward in loudspeaker design.
The Ar 10 π is a no-compromise 3 way speaker system with excellent dispersion and even energy output all across the audible spectrum. A pair of 3 position switches allows the owner to adjust the mid and high-range drivers to the "liveliness" of the room while the 3-position woofer environmental control allows the owner to adjust the low-end response to speaker placement. This allows the owner to place the speakers on the center of the wall, on the floor against the wall or away from the wall.
Drive units :
300 mm (12 in.) acoustic suspension woofer,
38 mm (1 1/2 in.) hemispherical dome midrange,
19 mm (3/4 in.) hemispherical dome highrange.
Crossover frequencies: 525 Hz, 5000 Hz
Frequency range : 27 Hz - 30.000 Hz
Impedance : 4 - 8 ohm
Controls :
Three 3-position switches for woofer environmental control and for midrange and highrange level control
Impedance :
4 to 8 ohms nominal, depending on switch positions, highest impedance in π and -6 dB switch positions, lowest in 4 π and 0db
Efficiency :
1 watt will produce 86 dB SPL on axis at 1 meter.
Amplifier power requirement:
25 watts (into one speaker only) will produce 100 dB SPL in a 3000 cu π room of average reflectivity (energy absorption coefficient of 0,15), 50 watts (25 watts per channel) will produce 103 dB SPL in the same room.
Power handling ability :
May be used with amplifiers capable of delivering up to 150 watts continuous power per channel being driven to clipping 10 % of the time, on normal music material source
Nominal power handing: 100 watts (max, 250)
Crossover network :
Half-section LC network on each driver using air-core chokes and computer grade bi-polar electrolytic capacitors. acoustic output of midrange and highrange drivers as well as the normalizing of woofer output for the three basic environments accomplished via an autotransformer and individual switching networks
Driver resonance frequencies :
Woofer 18 Hz (free air), midrange 400 Hz, highrange 400 Hz
System resonance frequency : 42 Hz
System low frequency response : -3 db at 35 Hz
Effective System Q : 0.75
Flux density : Woofer 9800 gauss, midrange 13000 gauss, highrange 14000
Volume of enclosure : 41.9 liters (1.48 cu. ft.)
Cabinet dimensions : 354 x635 x 273 mm deep (13 15/16 x 25 x 10 3/4 in.)
Weight : unpacked 24.9 kg (55 lb.)
1997년 8월에 Woodstock 자택 연구실에서의 모습.

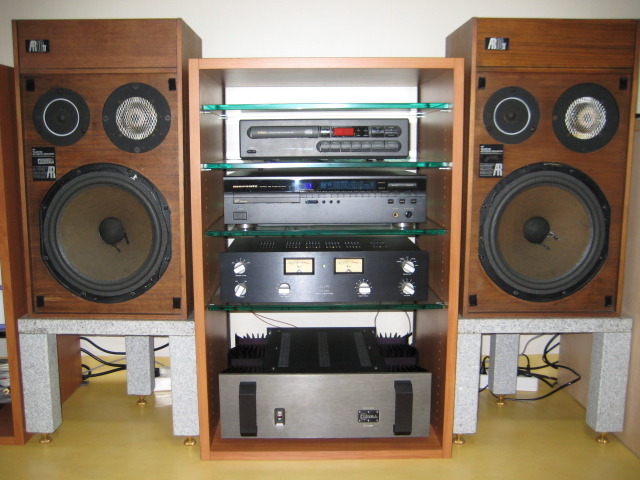

황순국님 시스템 전경입니다
AR1 스피커

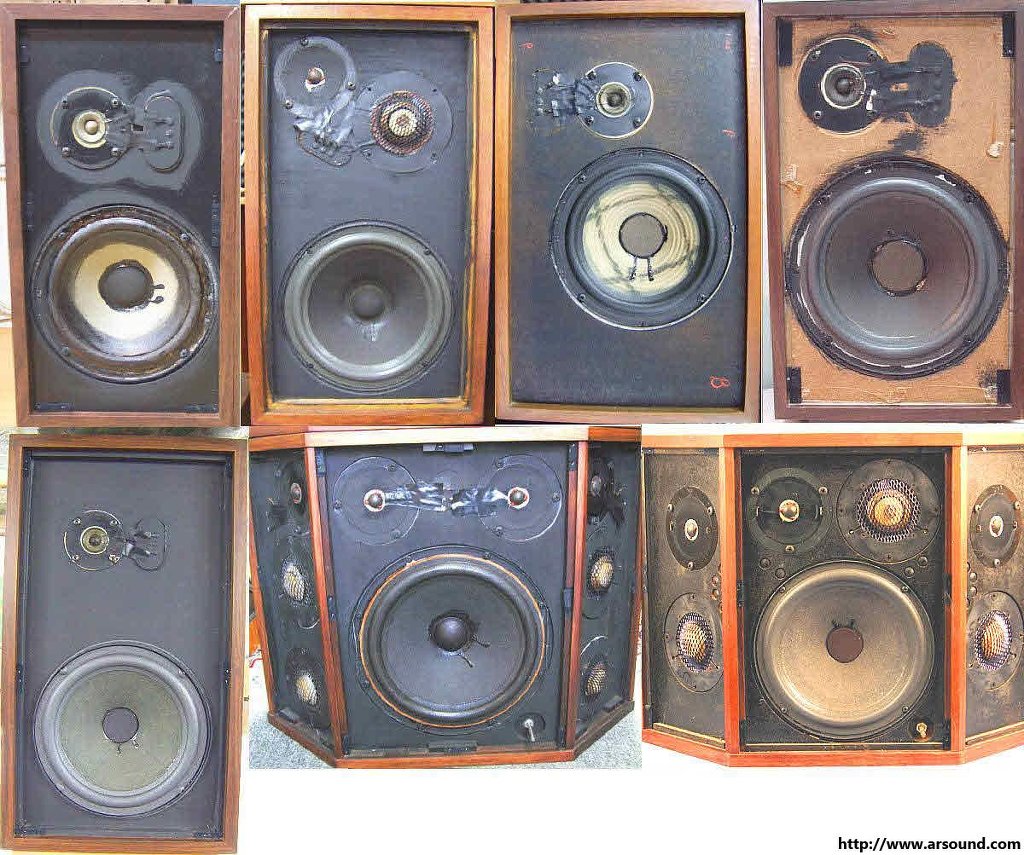

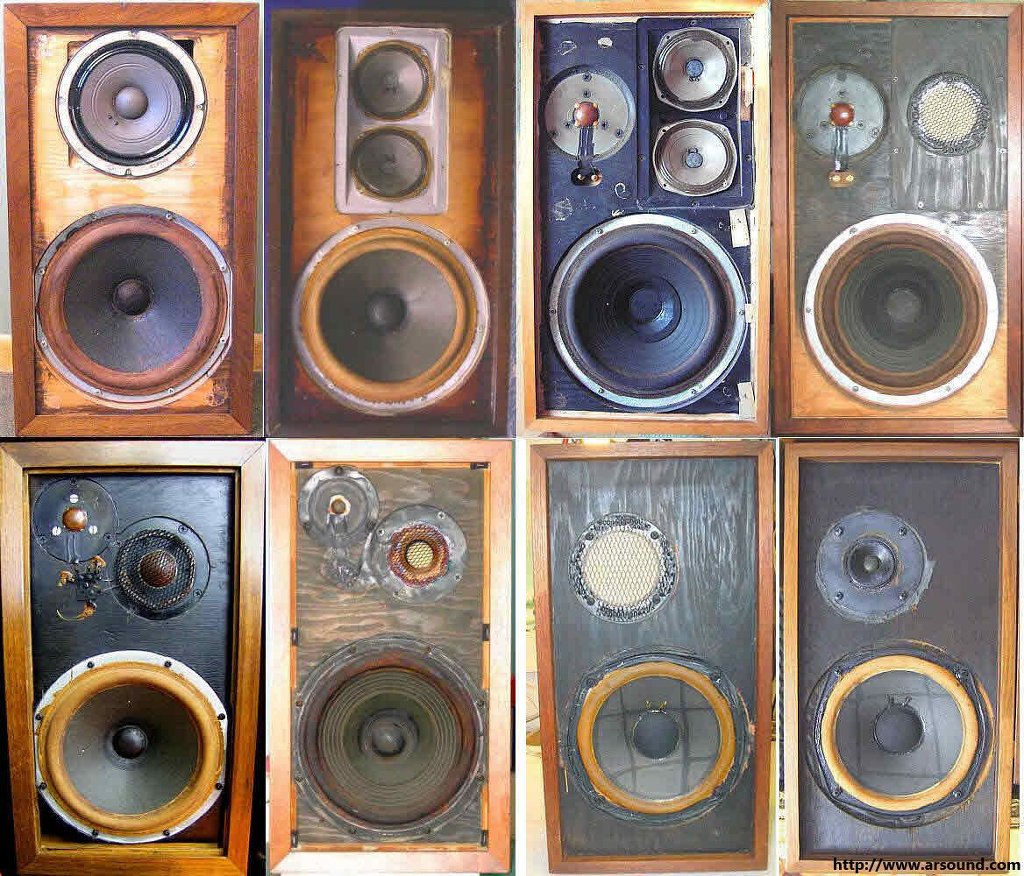

1954 -1974년 Original Models (1 ,2,2a,2ax,3,3a,4,4 x,5,6,7,8,LST,LS T2....)
MODEL
INTRO
DISC
WOOFER
MID
TYPE
TWEETER
TYPE
FREQ
SPL
XOVER
POWER
OHMS
SIZE
WT
PRICE
DATE
MODEL
AR-1
1954
1962
12"
8"
Cone
-
-
-
-
-
10- w
4 ohms
25x14x11.38
50.0 lbs
$185.00
AR-1
AR-1U
1954
-
12"
8"
Cone
-
-
-
-
-
10- w
4 ohms
25x14x11.5
-
-
AR-1U
AR-1W
1954
1961
12"
-
-
-
-
-
-
-
10-w
4 ohms
25x14x11.5
-
$145.00
AR-1W
AR-2
1957
1964
10"
2x5"
Cone
-
-
-
-
2000hz
20- w
8 ohms
24x11.5x13.5
32.0 lbs
$96.00
AR-2
AR-3
1958
1969
12"
2"
Dome
1.375"
Dome
20-20k
85 db
1000/7500hz
25- w
4 ohms
25x14x11
52.5 lbs
$216.00
AR-3
AR-3T
1959
1969
-
2"
Cone
1.375"
Dome
1k-20k?
-
1000hz?
-
4 ohms
8x14x6.75
-
$92.00
AR-3T
AR-2A
1959
1969
10"
2x5"
Cone
1.375"
Dome
40-20k*
-
2000/7500hz
-
8 ohms
13.5x11.5x24
36 lbs
$122.00
AR-2A
AR-2X "early"
1964
1970
10"
3.5"
Cone
-
-
-
-
2000hz
20- w
8 ohms
24x11.5x13.5
33.0 lbs
$102.00
AR-2X "early"
AR-4
1964
1965
8"
-
-
3.5"
Cone
-
85 db
1200hz
-
8 ohms
19x10x9
16 lbs
$57.00
AR-4
AR-2AX "early"
1964
1970
10"
3.5"
Cone
.75"
Dome
-
86 db
1400/5000hz
20-100 w
8 ohms
13.5x24x11.5
36.5 lbs
$165.00
AR-2AX "early"
AR-4X
1965
1973
8"
-
-
2.5"
Cone
-
-
1200hz
15- w
8 ohms
19x9x10
18.5 lbs
$63.00
AR-4X
AR-3A
1967
1973
12"
1.5"
Dome
.75"
Dome
-
86 db
575/5000hz
25-100 w
4 ohms
25x14x11.5
53 lbs
$295.00
AR-3A
AR-5
1968
1976
10"
1.5"
Dome
.75"
Dome
-
86 db
650/5000hz
20-100 w
8 ohms
13.5x24x11.5
39.0 lbs
$215.00
AR-5
AR-2X "late"
1970
-
10"
2.5"
Cone
-
-
-
-
-
-
8 ohms
13.5x24x11.5
39.0 lbs
-
AR-2X "late"
AR-2AX "late"
1970
1976
10"
3.5"
Cone
.75"
Dome
-
-
-
-
8 ohms
13.5x24x11.5
36.5 lbs
-
AR-2AX "late"
AR-6
1970
1976
8"
-
-
1.5"
Dome/Cone
-
86 db
1500hz
20-100 w
8 ohms
12x19.5x7
20.0 lbs
$99.00
AR-6
AR-LST
1971
1976
12"
4x1.5"
Dome
4x.75"
Dome
-
86 db
525/5000hz
-
4-16 ohms
27x20x9.75
90.0 lbs
$600.00
AR-LST
AR-4XA
1973
1974
8"
-
-
1.25"
Cone
-
86 db
1600hz
-100 w
8 ohms
10x19x9
18.5 lbs
$79.00
AR-4XA
AR-7
1973
1974
8"
-
-
1.25"
Dome/Cone
-
86 db
2000hz
-100 w
8 ohms
9.75x15.7x6
11.0 lbs
$75.00
AR-7
AR-8
1973
1974
10"
-
-
1.25"
Cone
-
-
1800hz
15- w
8 ohms
13.5x24x11.5
32.0 lbs
$119.00
AR-8
LST-II
1974
1975
10"
3x1.5"
Dome
3x.75"
Dome
-
-
650/5000hz
-
8-16 ohms
25.5x18.5x9.7
56.0 lbs
$400.00
LST-II
pi One
1974
1975
12"
1.5"
Dome
.75"
Dome
-
-
-
-
-
14x25x11
56.0 lbs
$329.00
p One
AR-10 pi
1977
1979
12"
1.5"
Dome
.75"
Dome
34-25K
86 db
525/5000hz
25-150 w
4-16 ohms
14x25x11
55.0 lbs
$450.00
AR-10 p
AR-11
1977
1979
12"
1.5"
Dome
.75"
Dome
35-25K
86 db
525/5000hz
25-150 w
4 ohms
14x25x11
50.0 lbs
$345.00
AR-11
AR-12
1977
1979
10"
2.25"
Cone
.75"
Dome
43.25K
86 db
700/4000hz
25-150 w
8 ohms
14x25x11
37.5 lbs
$250.00
AR-12
AR-14
1976
1979
10"
-
-
1"
Dome
43.24K
86 db
1300hz
15-100 w
8 ohms
14x25x11
35.0 lbs
$180.00
AR-14
AR-15
1977
1979
8"
-
-
1"
Dome
48-24K
85 db
1700hz
10-100 w
8 ohms
12x21.5x8
24.0 lbs
$130.00
AR-15
AR-16
1977
1977
8"
- -
1"
Dome
-
85 db
1300hz
25-100 w
8 ohms
9x19x8
21.0 lbs
$125.00
AR-16
AR-17
1977
1979
8"
-
-
1.25"
Pressure
48-21K
86 db
2000hz
10-100w
8 ohms
10x18.5x9
17.0 lbs
$95.00
AR-17
AR-18
1977
1982
8"
-
-
1.25"
Pressure
58-21K
86 db
2000hz
10-100 w
8 ohms
10x16.5x6
13.5 lbs
$70.00
AR-18
AR-9
1978
1982
2x12"
8"/1.5"
Cone/Dome
.75"
Dome
18-30K
87 db
200/1200/7000hz
15-400w
3.2-4 ohms
52.75x15x15
130.0 lbs
$900.00
AR-9
AR-25
1979
1982
8"
-
-
1.25"
Cone
48-22K
86 db
-
-
-
11.75x21.5x7
24.0 lbs
$240.00
AR-25
AR-90
1979
1982
2x10"
8"/1.5"
Cone/Dome
.75"
Dome
32-25K
87 db
100/1200/7000hz
15-300 w
3.2-4 ohms
43.38x14.5x1_
75.0 lbs
$700.00
AR-90
AR-91
1979
1982
12"
1.5"
Dome
.75"
Dome
35-25K
87 db
700/7500hz
15-200 w
3.2-4 ohms
31.5x14x11.5
53.0 lbs
$425.00
AR-91
AR-92
1979
1982
10"
1.5"
Dome
.75"
Dome
44-25K
87 db
700/7500hz
15-200 w
3.2-4 ohms
31.5x14x11.5
46.0 lbs
$325.00
AR-92
AR-93
1980
1982
2x8"
8"
Cone
1.25"
Cone
44-22K
87 db
-
15-125 w
6 ohms
30.63x14x10.
50.0 lbs
$260.00
AR-93
AR-94
1980
1982
8"
8"
Cone
1.25"
Cone
44-22k
87 db
-
15-125 w
6 ohms
30.6x14x10
43.0 lbs
$220.00
AR-94
AR-18s
1981
1983
8"
-
-
1.25"
Cone
62-22k
88 db
-
15-100 w
8 ohms
16.5x9x6.5
13.0 lbs
$99.00
AR-18s
AR-28s
1981
1983
8"
-
-
1"
Dome
50-24k
87 db
-
15-100 w
6 ohms
22x12x8
24.0 lbs
$130.00
AR-28s
AR-38s
1981
1983
10"
-
-
1.25"
Cone
45-22k
88 db
-
15-100 w
8 ohms
24x13.5x11
31.5 lbs
$160.00
AR-38s
AR-48s
1981
1983
10"
4"
Cone
1"
Dome
45-24k
87 db
-
15-100 w
6 ohms
25x14x11
38.0 lbs
$210.00
AR-48s
1MS
1982
1985
5.25"
-
-
.75"
Dome
95-25k
85 db
-
-
-
8x5x5
4.5 lbs
$130.00/ea
01Jn86
1MS
AR-93s
1982
1983
2x8"
8"
Cone
1.25"
Cone
44-22k
87 db
350/2000hz
15-125 w
4.5-6 ohms
31x14x11
50.0 lbs
$270.00
AR-93s
AR-94s
1982
1983
8"
8"
Cone
1.25"
Cone
44-22k
87 db
350/2000hz
15-125 w
5-6 ohms
31x14x11
43.0 lbs
$230.00
AR-94s
AR-98LS
1982
1985
12"
8"/1.5"
Cone/Dome
.75"
Dome
39-32k
87 db
200/1100/5500hz
15-250 w
3-4 ohms
29.5x15.5x10
63.0 lbs
$450.00
AR-98LS
AR-9LS
1982
1985
10"/12"
8"
Cone/Dome
.75"
Dome
28-32k
87 db
200/2300/5500hz
25-400 w
3.2-4 ohms
52x18.5x14.5
118.0 lbs
$750.00
AR-9LS
AR-18B
1983
1985
8"
-
-
1.25"
Dome
62-22k
88 db
2000hz
10-100 w
8 ohms
17x11x6
30.0 lbs
$252.00
AR-18B
AR-28B
1983
1985
8"
-
-
1.25"
Dome
52-22k
88 db
5000hz
10-100 w
8 ohms
20x11x7
38.0 lbs
$330.00
AR-28B
AR-58B
1983
1985
12"
4"
Cone
.75"
Dome
39-32k
87 db
600/4500hz
20-175 w
3.6-4 ohms
27x15x11
99.0 lbs
$700.00
AR-58B
AR-78LS
1983
1985
12"
1.5"
-
.75"
Dome
39-32k
87 db
400/5000hz
25-200 w
3.6-4 ohms
27x15x12
104.0 lbs
$900.00
AR-78LS
AR-8B
1983
1985
6"
-
-
1.25"
Cone
74-22k
88 db
5000hz
10-75 w
8 ohms
15x10x6
21.0 lbs
$192.00
AR-8B
AR-38B
1984
1985
10"
-
-
1"
Dome
42-22k
88 db
650/3500hz
10-100 w
4.5-6 ohms
23x14x11
65.0 lbs
$430.00
AR-38B
AR-48B
1984
1985
10"
4"
Cone
.75"
Dome
45-32k
87 db
400/3500hz
10-150 w
4.5-6 ohms
26x14x11
79.0 lbs
$550.00
AR-48B
AR-18BX
1985
1986
8"
-
-
1"
Dome
52-25k
87 db
-
-
-
17x11x8
17.5 lbs
$260.00
AR-18BX
AR-28BX
1985
1986
8"
-
-
1"
Dome
42-22k
89 db
-
-
-
27x13x10
35.0 lbs
$400.00
AR-28BX
AR-38BX
1985
1986
8"
4"
Cone
.75"
Dome
52-32k
88 db
-
-
-
22x13x7
27.5 lbs
$440.00
AR-38BX
AR-48BX
1985
1986
10"
4"
Cone
.75"
Dome
45-32k
88 db
-
-
-
27x13x10
38.5 lbs
$570.00
AR-48BX
AR-58BX
1985
1986
12"
4"
Cone
.75"
Dome
39-32k
90 db
-
-
-
30x14x10
48.5 lbs
$720.00
AR-58BX
AR-8BX
1985
1986
6"
-
-
1"
Dome
62-25k
87 db
-
-
-
15x10x7
14.5 lbs
$200.00
AR-8BX
AR-98LSi
1985
1987
12"
8"/1.5"
Cone/Dome
.75"
Dome
39-32k
87 db
-
-
-
30x16x10
63.0 lbs
$625.00/ea
01Jn86
AR-98LSi
AR-9LSi
1985
1987
12"/10"
-8"/1.5"
Cone/Dome
.75"
Dome
28-32k
87 db
-
-
-
51x19x15
120.0 lbs
$1000.00/ea
01Jn86
AR-9LSi
AR-18BXi
1986
1987
8"
-
-
1"
Dome
52-22k
87 db
-
-
-
17x10x8
18.0 lbs
$140.00/ea
01Jn86
AR-18BXi
AR-25BXi
1986
1987
8"
-
-
1"
Dome
49-22k
87 db
-
-
-
20x10x8
22.0 lbs
$180.00/ea
01Jn86
AR-25BXi
AR-28BXi
1986
1987
10"
-
-
1"
Dome
42-22k
89 db
-
-
-
27x13x10
35.0 lbs
$210.00/ea
01Jn86
AR-28BXi
AR-38BXi
1986
1987
8"
4"
Cone
.75"
Dome
52-32k
86 db
-
-
-
22x13x7
28.0 lbs
$235.00/ea
01Jn86
AR-38BXi
AR-48BXi
1986
1987
10"
4"
Cone
.75"
Dome
45-32k
88 db
-
-
-
27x13x9
38.0 lbs
$300.00
AR-48BXi
AR-58BXi
1986
1987
12"
4"
Cone
.75"
Dome
39-32k
85 db
-
-
-
30x13x10
48.0 lbs
$380.00/ea
01Jn86
AR-58BXi
AR-8BXi
1986
1987
6.5"
-
-
1"
Cone/Dome
64-25k
88 db
-
-
-
15x9x7
15.0 lbs
$100.00/ea
01Jn86
AR-8BXi
Connoisseur 19
1986
1988
6.5"
-
-
1"
Dome
65-22k
88 db
5000hz
10-75 w
8 ohms
16x10x7
15.0 lbs
$160.00/ea
01Jn86
Connoisseur 19
Connoisseur 20
1986
1988
8"
-
-
1"
Dome
57-22K
87 db
4000hz
10-100 w
6 ohms
18x11x8
19.0 lbs
$210.00/ea
01Jn86
Connoisseur 20
Connoisseur 40
1986
1988
10"
6.5"
Cone
1"
Dome
41-22K
87 db
200/5000hz
15-150 w
6 ohms
27x13x14
43.0 lbs
$500.00/ea
01Jn86
Connoisseur 40
Connoisseur 50
1986
1988
12"
6.5"
Cone
1"
Dome
37-32K
85 db
300/2500hz
20-200 w
4 ohms
32x14x13
78.0 lbs
$700.00/ea
01Jn86
Connoisseur 50
Connoisseur Sub
1986
1988
2x10"
-
-
-
-
31-100
85 db
90hz
15-200 w
4 ohms
16x31x18
70.0 lbs
$500.00/pr
01Jn86
Connoisseur Sub
MCG-1
1986
1987
2x8"
2x4"/6"
Cones
.75"/1"
Domes
35-32K
85 db
200/1100/5300hz
25-250 w
3.2-4 ohms
52x26x16
150.0 lbs
$3600.00/pr
01Jn86
MGC-1
MGC-II
1986
1987
12"
2x4"/6.5"
Cones
1"
Dome
35-32K
85 db
250/3500hz
25-200 w
3.2-4 ohms
44x17x12
80.0 lbs
$2000.00/pr
01Jn86
MGC-II
MGC-I
1987
1988
2x8"
2x4"/6"
Cones
.75"/1"
Domes
39-32K
85 db
-
-
-
52x26x16
150.0 lbs
$3800.00
MGC-I
MGC-II
1987
1988
12"
2x4"/6.5"
Cones
1"
Dome
39-27K
85 db
-
-
-
45x17x12
100.0 lbs
$2000.00
MGC-II
TSW-100
1987
1988
6.5"
-
-
1"
Dome
72-25K
89 db
6000hz
10-50 w
6-8 ohms
14x10x8
12.0 lbs
$225.00
TSW-100
TSW-110
1987
1989
6.5"
-
-
.75"
Dome
68-40K
88 db
5000hz
10-75 w
5-8 ohms
15x10x8
14.0 lbs
$280.00
TSW-110
TSW-210
1987
1989
8"
-
-
.75"
Dome
54-40K
87 db
5000hz
10-100 w
6-8 ohms
17x10x8
15.0 lbs
$380.00
TSW-210
TSW-310
1987
1989
10"
-
-
.75"
Dome
45-40K
89 db
3800hz
10-100 w
4-6 ohms
28x12x12
35.5 lbs
$540.00
TSW-310
TSW-410
1987
1989
8"
6.5"
Cone
.75"
Dome
46-40K
86 db
450/3800hz
10-100 w
3-4 ohms
24x12x12
30.5 lbs
$550.00
TSW-410
TSW-510
1987
1989
10"
6.5"
Cone
.75"
Dome
44-40K
87 db
700/5000hz
15-150 w
3.6-4 ohms
30x14x13
49.0 lbs
$800.00
TSW-510
TSW-610
1987
1989
12"
6.5"
Cone
.75"
Dome
40-40K
87 db
700/5000hz
15-175 w
3.6-4 ohms
33x14x13
57.0 lbs
$1000.00
TSW-610
TSW-810
1987
1989
2x10"
2x6.5"
Cone
1"
Dome
33-32K
87 db
350/4000hz
25-250 w
2.6-4 ohms
42x16x19
95.0 lbs
$1930.00
TSW-810
TSW-910
1987
1989
2x12"
2x6.5"
Cone
1"
Dome
28-32K
87 db
200/550hz
35-400 w
3.2-4 ohms
53x16x19
140.0 lbs
$2200.00
TSW-910
STC-660
1988
1991
6"
4"
Cone
.75"
Dome
-
-
-
-
-
3 pieces
-
$849.00
STC-660
TSW-115P
1988
1989
4"
-
-
.75"
Dome
-
-
-
-
-
11x7x7
11.0 lbs
$400.00
TSW-115P
TSW-315
1988
1989
2x6.5"
-
-
.75"
Dome
48-40K
89 db
-
-
-
23x12x12
30.5 lbs
$550.00
TSW-315
TSW-710
1988
1989
2x8"
6.5"
Cone
.75"
Dome
40-40K
90 db
-
-
-
39x14x13
46.0 lbs
$1300.00
TSW-710
SPIRIT 112
1989
1991
8"
-
-
1"
Dome/Cone
85-25K
90 db
-
-
-
14x8x7
9.5 lbs
$289.00
SPIRIT 112
SPIRIT 122
1989
1991
6"
-
-
1"
Dome/Cone
85-25K
90 db
-
-
-
15x8x9
11.5 lbs
$349.90
SPIRIT 122
SPIRIT 132
1989
1991
8"
-
-
1"
Dome
55-22K
90 db
-
-
-
18x9x10
16.0 lbs
$499.90
SPIRIT 132
SPIRIT 142
1989
1991
8"
6"
Cone
1"
Dome/Cone
52-25K
90 db
-
-
-
26x9x11
23.5 lbs
$799.90
SPIRIT 142
SPIRIT 162
1989
1991
2x8"
6"
Cone
1"
Dome
45-22K
91 db
-
-
-
37x9x14
43.5 lbs
$1199.90
SPIRIT 162
TSW-110A
1989
1991
6.5"
-
-
.75"
Dome
58-40K
88 db
-
-
-
15x10x8
14.0 lbs
$280.00
TSW-110A
TSW-115PA
1989
1990
4"
-
-
.75"
Dome
-
-
-
-
-
11x7x7
11.0 lbs
$400.00
TSW-115PA
TSW-210A
1989
1991
8"
-
-
.75"
Dome
54-40K
87 db
-
-
-
17x10x8
15.0 lbs
$380.00
TSW-210A
TSW-310A
1989
1990
10"
-
-
.75"
Dome
45-40K
89 db
-
-
-
28x12x12
35.5 lbs
$549.00
TSW-310A
TSW-315A
1989
1990
2x6.5"
-
-
.75"
Dome
48-40K
89 db
-
-
-
23x12x12
30.5 lbs
$550.00
TSW-315A
TSW-410A
1989
1991
8"
6.5"
Cone
.75"
Dome
46-40K
86 db
-
-
-
24x12x12
30.5 lbs
$600.00
TSW-410A
TSW-415A
1989
1990
8"
-
-
.75"
Dome
44-40K
90.5 db
-
-
-
30x12x12
31.5 lbs
$360.00
TSW-415A
TSW-510A
1989
1991
10"
6.5"
Cone
.75"
Dome
44-40k
87 db
-
-
-
30x14x13
49.0 lbs
$800.00
TSW-510A
TSW-610A
1989
1991
12"
6.5"
Cone
.75"
Dome
40-40k
87 db
-
-
-
33x14x13
57.0 lbs
$1000.00
TSW-610A
TSW-710A
1989
1991
2x8"
6.5"
Cone
.75"
Dome
40-40k
90 db
-
-
-
39x14x13
48.0 lbs
$1200.00
TSW-710A
TSW-810A
1989
1990
2x10"
2x6.5"
Cone
1"
Dome
33-32k
87 db
-
-
-
42x16x19
95.0 lbs
$1900.00
TSW-810A
TSW-910A
1989
1991
2x12"
8"
Cone
1"
Dome
28-32k
87 db
-
-
-
53x16x19
140.0 lbs
$2200.00
TSW-910A
AR-102
1990
1991
6.5"
-
-
1"
Dome
-
88 db
-
-
-
12x7x6
6.5 lbs
$200.00
AR-102
SPRIT 152
1990
1991
8"
6"
Cone
1"
Dome
55-22k
89 db
-
-
-
17x9x10
19.5 lbs
$950.00
SPRIT 152
M1
1991
1994
6"
-
-
.75"
Dome
65-20k
88 db
3600hz
10-100 w
4-8 ohms
11x8x12
10.5 lbs
$230.00
M1
M2
1991
1994
8"
-
-
.75"
Dome
58-20k
90 db
3600hz
10-125 w
4-8 ohms
16x9x14
17.0 lbs
$300.00
M2
M3
1991
1993
8"
2.5"
Cone
.5"
Dome
53-23k
89 db
1200/7000hz
20-125 w
4-8 ohms
9x15x22
23.5 lbs
$399.90
M3
M4
1991
1994
6"
6"
Cone
.75"
Dome
50-20k
88 db
100/3600hz
20-150 w
4-8 ohms
29x8x15
26.0 lbs
$500.00
M4
M5
1991
1993
8"
5.25"
Cone
.75"
Dome
48-20k
90 db
150/3400hz
20-175 w
4-8 ohms
8x10x36
37.5 lbs
$1079.90
M5
M6
1991
1993
2x8"
5.25"
Cone
.75"
Dome
42-20k
90 db
150/3400hz
20-200 w
4-8 ohms
8x10x42
742.0 lbs
$1399.90
M6
TSW-110B
1991
1992
6.5"
-
-
.75"
Dome
68-40k
88 db
-
-
-
15x10x8
14.0 lbs
$280.00
TSW-110B
TSW-210B
1991
1992
8"
-
-
.75"
Dome
54-40k
87 db
-
-
-
17x10x8
15.0 lbs
$380.00
TSW-210B
TSW-310B
1991
1992
10"
-
-
.75"
Dome
45-40k
90 db
-
-
-
28x13x12
70.0 lbs
$500.00
TSW-310B
TSW-410B
1991
1992
8"
6.5"
Cone
.75"
Dome
46-40k
88 db
-
-
-
24x12x12
30.5 lbs
$600.00
TSW-410B
TSW-510B
1991
1992
10"
6.5"
Cone
.75"
Dome
44-40k
87 db
-
-
-
30x14x13
49.0 lbs
$800.00
TSW-510B
TSW-610B
1991
1992
12"
6.5"
Cone
.75"
Dome
40-40k
87 db
-
-
-
33x14x13
57.0 lbs
$1000.00
TSW-610B
ATHENA
1992
1994
8"
2x3.5"
Cone
2x.75"
Dome
48-20k
89 db
-
-
-
3 pieces
40.0 lbs
$599.00
ATHENA
CLASSIC-10
1992
1992
2x5"
-
-
1"
Dome
40-20k
89 db
-
-
-
8x11x26
40.0 lbs
$1200.00
CLASSIC-10
CLASSIC-18
1992
1994
8"
2x5"
Cone
1"
Dome
42-20k
88 db
200/2000hz
-
4 ohms
10x13x36
63.0 lbs
$1300.00
CLASSIC-18
CLASSIC-26
1992
1994
2x8"
2x5"
Cone
1"
Dome
40-20k
88 db
200/2000hz
-
4 ohms
10x13x46
76.0 lbs
$1800.00
CLASSIC-26
CLASSIC-30
1992
1994
2x10"
2x5"
Cone
1"
Dome
38-20k
88 db
200/2000hz
-
4 ohms
11x15x52
153.0 lbs
$2200.00
CLASSIC-30
AR Limited Model 3
1992
-
12"
2x3"
Domes
1"
Dome
38-20k
88 db
300/2500hz
200/800 w peak
4 ohms
49x13x13
85.0 lbs
$8875.00
AR Limited Model 3
M.5
1992
1994
5.25"
-
-
.5"
Dome
68-23k
88 db
-
-
-
6x9x7
7.5 lbs
$200.00
M5
M4.5
1992
1994
8"
8"
Cone
.75"
Dome
47-23k
88 db
-
-
-
36x9x12
37.5 lbs
$700.00
M4.5
MC.1
1992
1994
4"
-
-
.75"
Dome
80-20k
87 db
-
-
-
5x7x18
11.0 lbs
$150.00
MC.1
CLASSIC-12
1993
1994
2x6"
-
-
1"
Dome
46-20k
88 db
2000hz
-
4 ohms
9x11x3_
50.0 lbs
$1000.00
CLASSIC-12
CLASSIC-5
1993
1994
5"
-
-
1"
Dome
60-20k
88 db
-
-
-
7x9x14
13.5 lbs
$300.00
CLASSIC-5
CLASSIC-6
1993
1994
6"
-
-
1"
Dome
55-20k
88 db
-
-
-
9x11x19
21.5 lbs
$350.00
CLASSIC-6
CLASSIC-8
1993
1994
8"
-
-
1"
Dome
50-20k
88 db
-
-
-
10x13x22
30.0 lbs
$450.00
CLASSIC-8
AR302T
1995
1998
10"
1.5"
Dome
.75"
Dome
32-20k
85 db
650/5500hz
35-250 w
4-6 ohms
36x11x13
47.0 lbs
-
AR302T
AR338T
1995
1998
8"
1.5"
Dome
.75"
Dome
47-20k
86 db
900/6000hz
35-150 w
4-8 ohms
32x9x11
38.0 lbs
-
AR338T
AR208V
1995
1998
5.25"
-
-
.75"
Dome
75-20k
86 db
3000hz
10-75 w
6-8 ohms
10.66x7.25x5.63
6.5 lbs
-
AR208V
AR218V
1995
1998
6.5"
-
-
.75"
Dome
55-20k
86 db
3000hz
15-125 w
4-8 ohms
13x8.25x8.25
13.5 lbs
-
AR218V
AR228
1995
1998
8"
-
-
.75"
Dome
49-20k
86 db
2500hz
30/125 w
4-8 ohms
17.5x10.38x9
20.5 lbs
-
AR228
AR338
1995
1998
8"
1.5"
Dome
.75"
Dome
49-20k
86 db
90/6000hz
35-150 w
4-8 ohms
19x10.34x9
23.0 lbs
-
AR338
AR302
1995
1998
10"
1.5"
Dome
.75"
Dome
35-20k
85 db
650/5500hz
35-250 w
4-6 ohms
24x13x10.5
37.0 lbs
-
AR302
AR303
1995
1998
12"
1.5"
Dome
.75"
Dome
32-20k
85 db
650/5500hz
50-250 w
4-6 ohms
25x14.75x11.19
54.0 lbs
-
AR303
ARSW30
1995
1998
12"
-
-
-
-
-
-
50-200hz
-
-
16x16x16
49.0 lbs
-
ARSW30
AR205VC
1995
1998
2x5.25"
-
-
1:
Dome
65-21k
90 db
2400hz
30-120 w
4-8 ohms
6.75x23.5x8.75
18.0 lbs
-
AR205VC
AR303A
1995
1998
12"
1.5"
Dome
.75"
Dome
32-20k
85 db
650/5500hz
50-250 w
4-6 ohms
25x14.75x11.19
54.0 lbs
-
AR303A
*+/- 5 db, Heath specs for the AS-2 s
(영화 '반지의 제왕' 테마)
ar1-1 (1).jpg
