[=신차소식=]2010 Suzuki V-Strom 650/ABS Preview

작성자베이베기린(김상수)|작성시간09.12.23|조회수1,560 목록 댓글 1

Introduction

To begin with the recipe behind the standard Suzuki V-Strom 650, we must say the bike was created to satisfy as many riding demands as possible and implicit address to a very large category of riders. And things ended up staying the same in practice as they did in theory.

The SV 650 V-twin engine proves very efficient both at highway cruising, city commuting and off-road riding, while the light chassis makes it master of winding roads, be them paved or not.

With the same remarkable features, a 2010 Suzuki V-Strom 650 model practically sells itself: the liquid-cooled 645cc 90-degree twin, DOHC 8-valve now has dual spark plug heads for greater fuel economy and environmental friendliness as well as Suzuki composite electrochemical plated cylinder ensuring years of enjoying the low-rpm grunt that this engine loves to deliver.

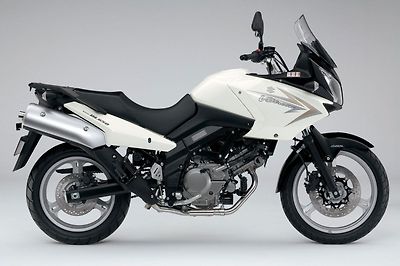

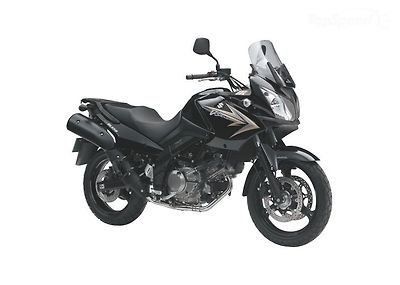

2010 Suzuki V-Strom 650 ABS

As on all modern bikes, the frame is made out of aluminum, as well as the swingarm. No wonder we’re starting to talk about suspensions as the preload-adjustable 43mm forks and rebound-adjustable link-type rear unit work together to deliver the best of feedback out where things get messy and still provide confidence when cruising down the highway.

Also, the cast aluminum wheels vote for pavement and with an upright riding position and height adjustable screen, the only problem a future V-Strom 650 owner will be facing is which way to go right after choosing a model. Apart from the standard one, Suzuki also offers an ABS model, which is obviously fitted with an antilock braking system and the very special V-Strom 650 SEA ABS Touring, which is packed with side mounted hard bags and matching top bag and craves for the open road.



Suzuki V-Strom 650 History



Competition

1. 2009 Honda XL700V Transalp

The Honda XL700V Transalp is a nightmare for the Suzuki as it is a totally reinvented motorcycle powered by a fuel-injected liquid-cooled, 680.2cc, SOHC, 52-degree V-twin engine that is not only around for decades, but stands for performance that is unmatched in both environments in which the V-Strom is a blast.

Actually, the Transalp is the bike that created this category and now is back to claim its share of the market. Potent and reliable, the engine is mated to a five-speed tranny and there is also an ABS model available. The Transalp is also more adequate for adventure riding as it has spoked wheels and a 177mm ground clearance, so it is one of the few Japanese choices for those who plan to go around the world.

9. 2009 Kawasaki KLR 650

Kawasaki also enters this competition with the KLR 650 model. Similar to the V-Strom in many aspects such as ergonomics, wind protection, versatility and to the Transalp by having a five-speed gearbox, spoked wheels and massive bodywork, but only backed up by a carbureted 651cc DOHC, four-valve single-cylinder engine, this bike does it all at a fairly smaller level than the V-Strom, not to mention the Transalp.

Exterior

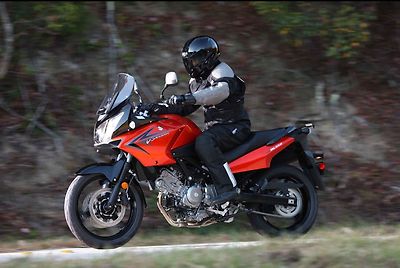

2010 Suzuki V-Strom 650 ABS

At a first glance, it is nothing wrong even with comparing the Suzuki V-Strom 650 with the Yamaha FZ6 as the bikes share a lot one with the other. For starters, V-Strom’s bodywork is pretty sleek considering the category in which you find it and those cast aluminum three-spoke wheels tend to position it more on the streets rather than off them, but that’s until the 165mm of ground clearance intervene. Also, the seat is low enough even for average-sized female riders (820mm) and the handlebars are at quick reach, allowing an upright riding position. This is where the 50mm manually height-adjustable windscreen makes an entry and gives a clue on the bike’s cruiser-like riding conditions. But the rest of the front end has nothing to do with a cruiser as the dominating headlights are integrated into a narrow fairing, giving that nice sporty look that tends us to position it right next to the FZ6.

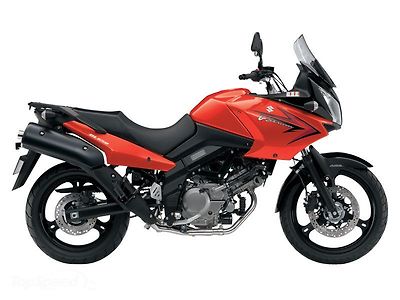

That very same fairing hugs the upper sides of the V-Strom body, blending in perfectly with the 5.8 gallons tank, which looks like a wall in relation to the low seat, but that’s how things are on do-it-all bikes. The Black or Orange (standard V-Strom 650), Black, White, Orange (V-Strom 650 ABS and V-Strom 650SEA ABS Touring) paint schemes enhance that sporty look.

At the back, the stainless steel exhaust is positioned high on the right side of the rider without disturbing the passenger and there’s also a top case support for those long weekend rides.



2010 Suzuki V-Strom 650 ABS

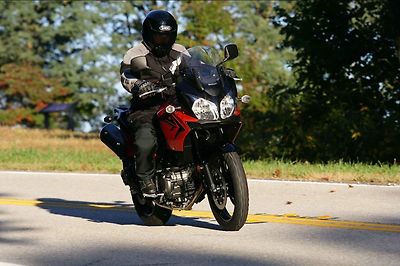

Suzuki V-Strom 650 Ride



Conclusion

2010 Suzuki V-Strom 650 SEA ABS Touring

Inspired by the Transalp, the middleweight V-Strom manages to occupy a decent second place in its category as it is a cheap, fuel-efficient (51 mpg) mean of transportation during the week and great fun in weekends as it also has a thing or two for adventure. The way it is styled sits as testimony of the things it is capable of and that means pretty much a little bit of all you can imagine.

 ----

SPECIFICATIONS



Engine and Transmission

2010 Suzuki V-Strom 650 SEA ABS Touring

Displacement: 645 cc
Engine: 4-stroke, liquid-cooled, DOHC, 90?-degree V-twin
Bore Stroke: 81.0 mm (3.189 in) x 62.6 mm (2.465 in)
Compression Ratio: 11.5 : 1
Fuel System: Fuel injection
Lubrication: Wet sump
Ignition: Electronic ignition (Transistorized)
Transmission: 6-speed constant mesh
Final Drive: D.I.D 525V8, 118 links

Chassis and Dimensions

2010 Suzuki V-Strom 650 SEA ABS Touring

Suspension Front: Telescopic, coil spring, oil damped
Suspension Rear: Link type, coil spring, oil damped
Brakes Front: Disc brake, twin
Brakes Rear: Disc brake
Tires Front: 110/80 R19 M/C 59H, tubeless
Tires Rear: 150/70 R17 M/C 69H, tubeless
Overall Length: 2290 mm (90.2 in)
Overall Width: 840 mm (33.1 in)
Overall Height: 1390 mm (54.7 in)
Seat Height: 820 mm (32.3 in)
Ground Clearance: 165 mm (6.5 in)
Wheelbase: 1555 mm (61.2 in)
Curb Weight: 217 kg (478 lbs); 220 kg (485 lbs) - ABS model; 236 kg (520 lbs) - ABS Touring model
Fuel Tank Capacity: 22 L (5.8/4.8 US/Imp gal)

Features & Benefits



Key Features

2010 Suzuki V-Strom 650 SEA ABS Touring
  • Available with Anti-Lock Braking System (ABS) for optimum braking performance

  • The V-Strom 650SEA features 2 locking, side mounted hard bags and matching top bag which allow ample storage and are easily removable.

    Engine

    2010 Suzuki V-Strom 650 ABS

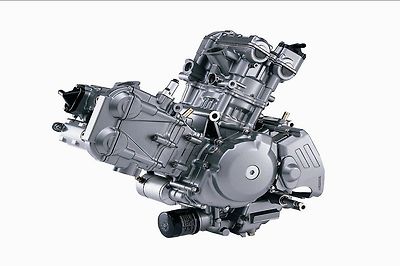

  • SV650-based 645cc 90 degree V-twin, DOHC 8-valve, liquid-cooled engine with dual spark plug heads for improved combustion and reduced emissions

  • Electronic fuel injection features the Suzuki Dual Throttle Valve System (SDTV) - maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response

  • Auto Fast Idling System (AFIS), automatically sets throttle valve opening during cold engine starts by monitoring coolant temperature

  • Digital ignition system provides optimum ignition timing with separate maps for each cylinder

  • Lightweight shim-under-bucket valve system operates 31mm intake and 25.5mm exhaust valves, plus valve timing with emphasis on low-rpm power

  • SCEM (Suzuki Composite Electro-chemical Material) plated cylinders minimize cylinder size and improve heat dissipation

  • Smooth shifting 6-speed transmission with cable operated clutch - final drive ratio lowered from SV650 for improved low rpm performance

  • High-efficiency liquid cooling system for optimum engine operating temperature - includes compact oil cooler

  • Plastic outer clutch cover and engine sprocket cover for reduced weight and noise

  • High-mounted stainless steel exhaust system with aluminum muffler tuned to enhance engine torque and low-to-midrange performance

  • PAIR - air injection system reduces CO and HC emissions - California model equipped with catalyst in exhaust to further reduce emissions

    Chassis

  • Black-painted frame and swingarm for stylish appearance

  • Slim and compact front fairing for maximum wind protection, plus large comfortable seat - fairing includes large multi-reflector 60/55W headlights

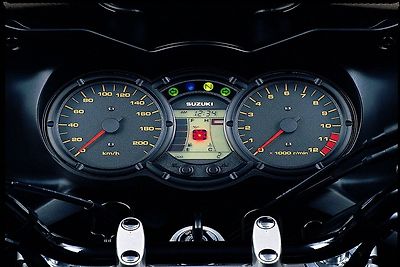

  • Compact step-motor speedometer and tachometer with LED illumination, plus LCD display for twin tripmeters, odometer temperature gauge, fuel gauge and digital clock

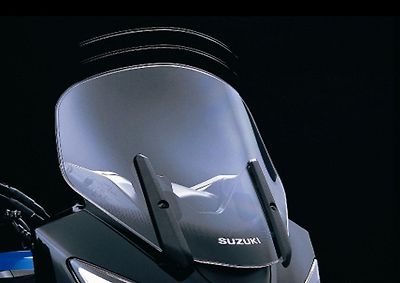

  • Height-adjustable windshield for maximum wind protection and comfort - can be manually adjusted to three positions in a 50mm vertical range

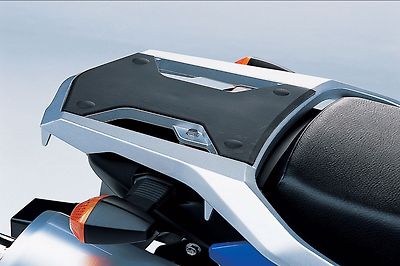

  • Large rear luggage rack with rubber-padded platform to help keep bags and luggage in place

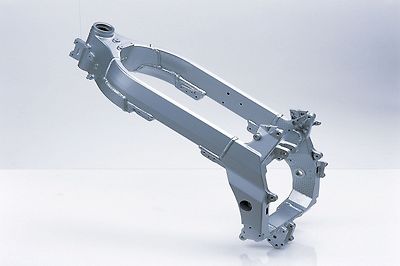

  • Aluminum twin-spar frame and aluminum swingarm are lightweight, compact and rigid - bolt-on sub-frame simplifies maintenance

  • Preload-adjustable 43mm front fork for a comfortable ride under all riding conditions

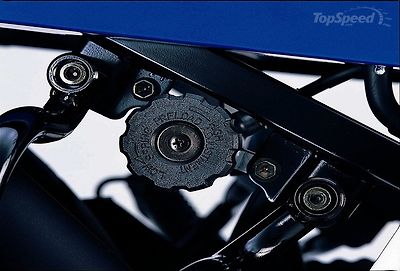

  • Link-type rear suspension features a single shock absorber with adjustable rebound damping and a knob-operated hydraulic preload adjuster for easy adjustment

  • Dual front disc brakes with large 310mm rotors and twin-piston calipers, plus single-disc rear brake with 260mm rotor and single-piston caliper

  • Lightweight cast aluminum wheels - F: 2.50 x 19 with 110/80R-19 radial tire, R: 4.0 x 17 with 150/70R-17 rear tire

  • Large 5.8 gallon fuel tank for long-range operation
  •
