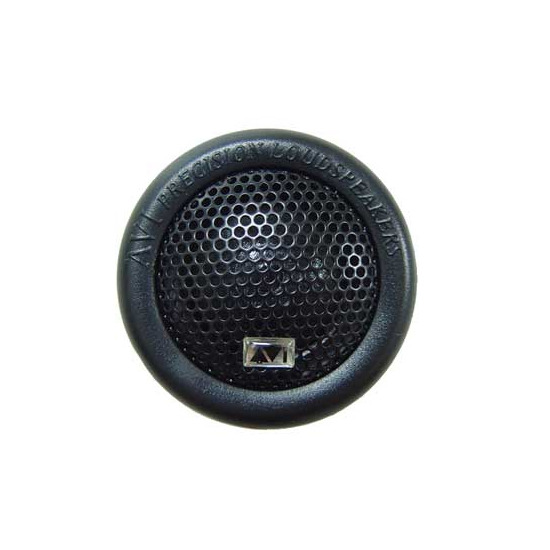

HF-25T
HF-25T, 25 mm (1") Dome Tweeter
The HF-25T is the new replacement for some of the older models (HF-25V and HF-25S). It is built with a much higher quality silk diaphragm and the power has increase by 33%. The increased performance actually comes in a smaller package now. The diameter (mounting hole) is only 45 mm. This is a tweeter for high performance 2, 3 or 4 way sound systems. The suggested operating range is 3 to 17 KHz., and the minimum crossover frequency is 3 KHz.
MODEL AVI HF-25T, 25mm (1") DOME TWEETER
PERFORMANCE 1 to 20 KHz frequency response range, without crossover.
80 watts music program power, at 2.5 KHz with 3rd order crossover.
50 watts AES pink noise rating, at 2.5 KHz with 3rd order crossover.
Less than 0.5% distortion at 10 watts.
90 dB average, at 1 watt and 1 meter.
4 ohm nominal, 3.4 ohm minimum.
FEATURES 32.5 mm (1.3") silk doped dome diaphragm.
30.5 mm (1.2 ") diameter voice coil.
Neodymium magnet.
Black high temperature and hardened ABS housing chassis.
Black punched metal protective grill.
PHYSICAL Element only: 50 mm (2") diameter, 23.5 mm (0.9") high without grill.
Surface mount: 55 mm (2.2") diameter, 37 mm (1.5") high with grill.
Angle mount: 55 mm (2.2") diameter, 42 mm (1.65") high with grill.
소비자금액 : 190,000원
HF-25D
HF-25D, 25 mm (1") Dome Tweeter
The HF-25D is newly designed for high power use. The neodymium magnet is twice as big, yet the mounting hole remains the same size as the HF-25T (45 mm). This is a tweeter for very high performance 2, 3 or 4 way sound systems. The suggested operating range is 3 KHz to 17 KHz., and the minimum crossover frequency is 3 KHz.
MODEL AVI HF-25D, 25mm (1") DOME TWEETER
PERFORMANCE 2 to 17 KHz frequency response range, without crossover.
60 watts music program power, at 3 KHz with 3rd order crossover.
40 watts AES pink noise rating, at 3 KHz with 3rd order crossover.
Less than 0.5% distortion at 10 watts.
94 dB average, at 1 watt and 1 meter.
4 ohm nominal, 3.2 ohm minimum.
FEATURES 26.5 mm (1.04") silk doped dome diaphragm.
25.4 mm (1") diameter voice coil.
Neodymium magnet.
Black high temperature and hardened ABS housing chassis.
Black punched metal protective grill.
PHYSICAL Element only: 45 mm (1.8") diameter, 19 mm (0.75") high without grill.
Surface mount: 50 mm (2") diameter, 30 mm (1.2") high with grill.
Angle mount: 50 mm (2") diameter, 36 mm (1.4") high with grill.
소비자금액 : 266,000원
HF-30B, 30 mm (1.2") Dome Tweeter
This tweeter is the king of all Tweets! It is currently the largest car audio tweeter available. The neodymium magnet is 3 times the size as the one used in the HF-25T. It produces the highest output of power among all of the tweeters. The mounting hole is 50 mm, so the increased performance you get is only by a 5 mm difference. This tweeter is for very high performance 2, 3 or 4 way sound systems. The suggested operating range is 2.5 to 20 KHz., and the minimum crossover frequency is 2.3 KHz.
MODEL AVI HF-30B, 30mm (1.2") DOME TWEETER
PERFORMANCE 1 to 20 KHz frequency response range, without crossover.
80 watts music program power, at 2.5 KHz with 3rd order crossover.
50 watts AES pink noise rating, at 2.5 KHz with 3rd order crossover.
Less than 0.5% distortion at 10 watts.
90 dB average, at 1 watt and 1 meter.
4 ohm nominal, 3.4 ohm minimum
FEATURES 32.5 mm (1.3") silk doped dome diaphragm.
30.5 mm (1.2 ") diameter voice coil.
Neodymium magnet.
Black high temperature and hardened ABS housing chassis.
Black punched metal protective grill.
PHYSICAL Element only: 50 mm (2") diameter, 23.5 mm (0.9") high without grill.
Surface mount: 55 mm (2.2") diameter, 37 mm (1.5") high with grill.
Angle mount: 55 mm (2.2") diameter, 42 mm (1.65") high with grill.
소비자금액 : 446,500원
