BSM-130

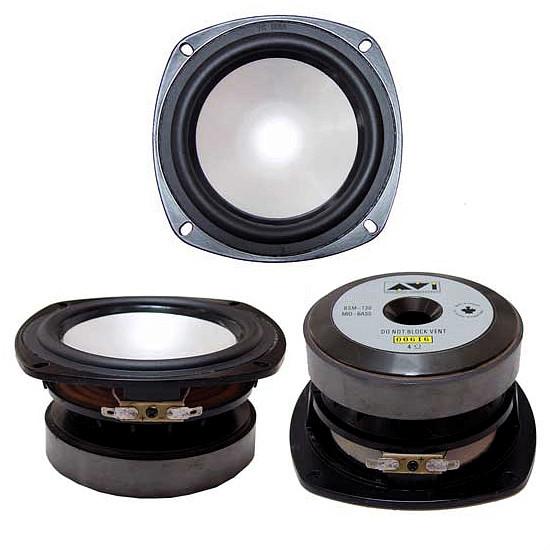

BSM-130, 130 mm (5.25") Midbass Device
The BSM Series is the flagship of the AVI mid devices. The goal of the BSM was to bring home audio sound quality to car audio. So these midbass devices were designed for superb sound quality. The most extraordinary characteristic of the BSMs are their ability to produce extremely warm sound. To achieve this goal, both models needed high-end parts such as: a 50 mm (2") aluminum ribbon voice coil, a 668 g (23.5 oz) magnet, and a white ceramic paper cone with composite rubber edge, just to name a few. The BSM-130 is for the ultimate performance sound system, and the operating range suggested is 80 Hz to 5 KHz.
MODEL AVI BSM-130, 130 mm (5.25") MIDBASS DEVICE
APPLICATIONS This is a midbass device for very high performance sound systems.
Suggested operating range is 80 Hz to 5 KHz.
PERFORMANCE 60 Hz to 6.5 KHz at -10 dB points, in test enclosure without crossover.
150 Hz to 4 KHz at -3 dB points, in test enclosure without crossover.
80 watts music program material.
50 watts AES pink noise rating.
87 dB average, at 1 watt and 1 meter, in half space.
4 ohm nominal, 3.1 ohm minimum.
FEATURES Black fiberglass frame with cavity vents.
Extended and vented pole piece with integrated bottom plate.
Both top and bottom plates with CNC and black absorbing finish.
White ceramic paper cone with composite rubber edge.
668 g (23.5 oz) magnet.
50 mm (2") aluminum ribbon voice coil.
PHYSICAL 134 X 134 mm (5.3" X 5.3") overall size.
67 mm (2.6") overall depth without grille.
120.5 mm (4.7") cut out hole diameter.
62 mm (2.4") mounting depth.
1.5 Kg (3.3 lbs) weight.
T/S DATA Znom 4 Ω Revc 3.1 Ω Fo 69.4 Hz
Sd 0.0095 M2 (14.7 in2) Le 0.189 mH SPL 87 dB
Xmax 2.75 mm (0.11 in) Qms 5.993 BL 5.29 TM
Vas 4.9 L (0.17 ft3) Qes 0.658 Pnom 50 W
Cms 382.3 μm/N Qts 0.593 Pmax 80 W
소비자금액 : 741,000원
BSM-160

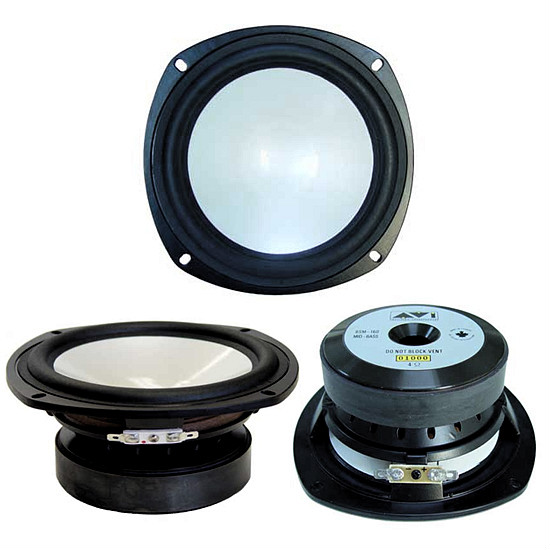

BSM-160, 160 mm (6.5") Midbass Device
The BSM Series is the flagship of the AVI mid devices. The goal of the BSM was to bring home audio sound quality to car audio. So these midbass devices were designed for superb sound quality. The most extraordinary characteristic of the BSMs are their ability to produce extremely warm sound. To achieve this goal, both models needed high-end parts such as: a 50 mm (2") aluminum ribbon voice coil, a 668 g (23.5 oz) magnet, and a white ceramic paper cone with composite rubber edge, just to name a few. The BSM-160 is for the ultimate performance sound system, and the operating range suggested is 70 Hz to 4.5 KHz.
MODEL AVI BSM-160, 160 mm (6.5") MIDBASS DEVICE
APPLICATIONS This is a midbass device for very high performance sound systems.
Suggested operating range is 70 Hz to 4.5 KHz.
PERFORMANCE 60 Hz to 5 KHz at -10 dB points, in test enclosure without crossover.
90 Hz to 4.5 KHz at -3 dB points, in test enclosure without crossover.
80 watts music program material.
50 watts AES pink noise rating.
88 dB average, at 1 watt and 1 meter, in half space.
4 ohm nominal, 3.26 ohm minimum.
FEATURES Black fiberglass frame with cavity vents.
Extended and vented pole piece with integrated bottom plate.
Both top and bottom plates with CNC and black absorbing finish.
White ceramic paper cone with composite rubber edge.
668 g (23.5 oz) magnet.
50 mm (2") aluminum ribbon voice coil.
PHYSICAL 155 X 155 mm (6.1" X 6.1") overall size.
67 mm (2.6") overall depth without grille.
141 mm (5.55") cut out hole diameter.
62 mm (2.4") mounting depth.
1.65 Kg (3.6 lbs) weight.
T/S DATA Znom 4 Ω Revc 3.26 Ω Fo 59.5 Hz
Sd 0.0125 M2 (19.4 in2) Le 0.186 mH SPL 88 dB
Xmax 3.25 mm (0.13 in) Qms 9.357 BL 5.46 TM
Vas 10.6 L (0.37 ft3) Qes 0.615 Pnom 50 W
Cms 475.9 μm/N Qts 0.577 Pmax 80 W
소비자금액 : 760,000원
