[ 신품 ] 전기구이치킨기계 전기구이통닭기게 바베큐기계 유로그릴 EURO GRILL
How first impressions stimulate onsumer impulses STW 5
How first impressions stimulate
consumer impulses

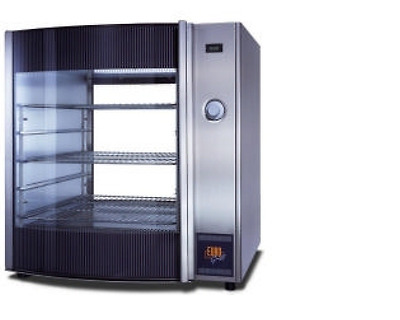

The STW 5
Technical Specifications STW 5
- power 2.8 kW
- voltage 1 N ~ 50…60
Hz
230 V
- standard accessories 3 grid shelves
Dimensions
- width 825 mm
- depth 650 mm
- height 860 mm
- weight 100 kg net
* subject to modifications
................................................................................................................
................................................................................................................
How first impressions stimulate
consumer impulses

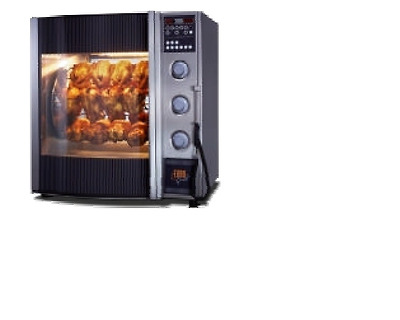

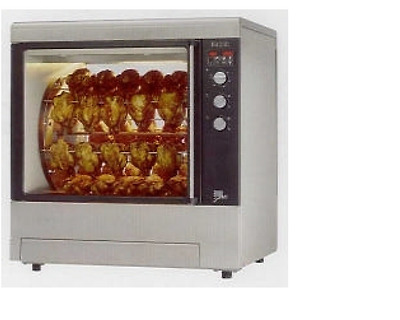

The STG 5
T e c h n i c a l s p e c i f i c a t i o n s S T G 5
- power 6.1 kW
- voltage 3 N ~ 5 0 … 6 0 H z
400 / 230 V
- standard accessories 1 standard rotor
5 double spits
meat thermometer
with p-version
- useable spit length 45 cm
- capacity 25 kg
Dimensions
- width 825 mm
- depth 650 mm
- height 860 mm
- weight 1 2 2 k g net
A c c e s s o r i e s
- double spits
- meat baskets
- chicken racks
- turkey spits
- double rotating rotor
.......................................................................................
....................................................................................
How first impressions stimulate
consumer impulses

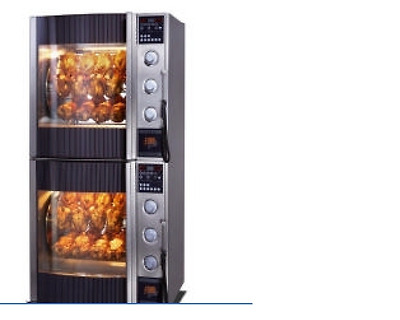

The STG and STG 5
T e c h n i c a l s p e c i f i c a t i o n s S T G 5
- power 6.1 kW
- voltage 3 N ~ 5 0 … 6 0 H z
400 / 230 V
- standard accessories 2 standard rotors
10 double spits
meat
thermometer
with p-version
- useable spit length 45 cm
- capacity 25 kg
Dimensions
- width 825 mm
- depth 650 mm
- height 860 mm
- weight 122 kg net
A c c e s s o r i e s
- double spits
- meat baskets
- chicken racks
- turkey spits
- double rotating rotor
................................................................................
................................................................................
How first impressions stimulate
consumer impulses
The STG and STW 5
T e c h n i c a l s p e c i f i c a t i o n s S T G 5
- power 6.1 kW
- voltage 3 N ~ 5 0 … 6 0 H z
400 / 230 V
- standard accessories 1 standard rotor
5 double spits
meat thermometer
with p-version
- useable spit length 45 cm
- capacity 25 kg
Dimensions
- width 825 mm
- depth 650 mm
- height 860 mm
- weight 1 2 2 k g net
A c c e s s o r i e s
- double spits
- meat baskets
- chicken racks
- turkey spits
- double rotating rotor
* subject to modifications
U n i q u e C h a r a c t e r i s t i c s
- a choice of control panel, electronic or
programmable
- perfect safety thanks to heat resisting insulating
double glass
- available with a single or double rotation system
- 25 to 30% faster than a conventional rotisserie
- can be opened on both sides to prevent contact
between fresh and grilled meat, so hygiene is
guaranteed
T e c h n i c a l S p e c i f i c a t i o n s S T W 5
- power 2.8 kW
- voltage 1 N ~ 5 0 … 6 0 H z
230 V
- standard accessories 3 grid shelves
Dimension
- width 825 mm
- depth 650 mm
- height 860 mm
- weight 100 kg net
* subject to modifications
..............................................................................
..............................................................................
How first impressions stimulate
consumer impulses

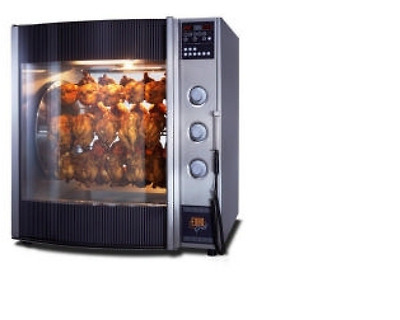

The STG 7
T e c h n i c a l s p e c i f i c a t i o n s S T G 7
- power 9.5 kW
- voltage 3 N ~ 5 0 … 6 0 H z
400 / 230 V
- standard accessories 1 standard rotor
7 double spits
meat thermometer
with p-version
- useable spit length 60 cm
- capacity 42 kg
Dimensions
- width 9 8 5 m m
- depth 8 5 0 m m
- height 1015 mm
- weight 1 8 1 k g net
A c c e s s o r i e s
- double spits
- meat baskets
- chicken racks
- turkey spits
- double rotating rotor
......................................................................................................................
......................................................................................................................
How first impressions stimulate
consumer impulses

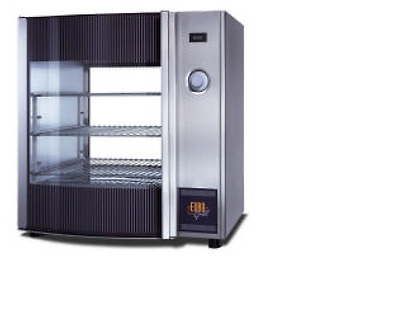

The STW 7
Technical Specifications STW 7
- power 3.5 kW
- voltage 1 N ~ 50…60
Hz
230 V
- standard accessories 3 grid shelves
Dimensions
- width 985 mm
- depth 850 mm
- height 1015 mm
- weight 150 kg net
* subject to modifications
...........................................................................................
.............................................................................................
How first impressions stimulate
consumer impulses

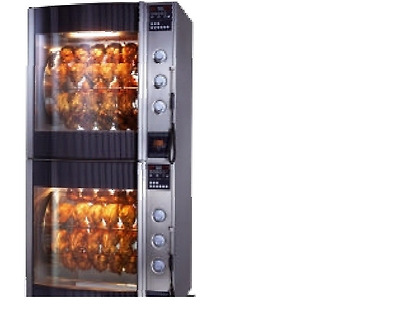

The STG and STG 7
T e c h n i c a l s p e c i f i c a t i o n s S T G 7
- power 9.5 kW
- voltage 3 N ~ 5 0 … 6 0 H z
400 / 230 V
- standard accessories 2 standard rotors
14 double spits
meat thermometer
with p-version
- useable spit length 60 cm
- capacity 42 kg
Dimensions
- width 9 8 5 m m
- depth 8 5 0 m m
- height 1015 mm
- weight 1 8 1 k g net
A c c e s s o r i e s
- double spits
- meat baskets
- chicken racks
- turkey spits
- double rotating rotor
..........................................................................................................
...........................................................................................................
How first impressions stimulate
consumer impulses

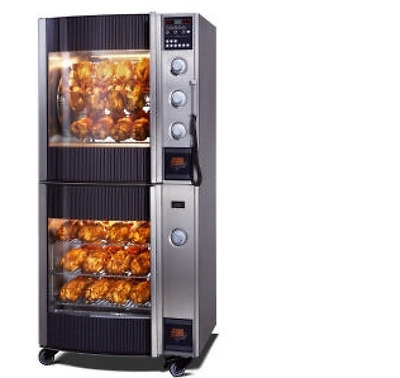

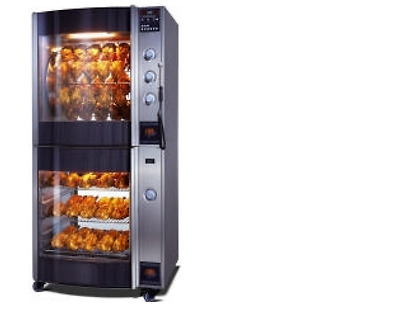

The STG and STW 7
T e c h n i c a l s p e c i f i c a t i o n s S T G 7
- power 9.5 kW
- voltage 3 N ~ 5 0 … 6 0 H z
400 / 230 V
- standard accessories 1 standard rotor
7 double spits
meat thermometer
with p-version
- useable spit length 60 cm
- capacity 42 kg
Dimensions
- width 985 mm
- depth 850 mm
- height 1015 mm
- weight 181 kg net
A c c e s s o r i e s
- double spits
- meat baskets
- chicken racks
- turkey spits
- double rotating rotor
* subject to modifications
U n i q u e C h a r a c t e r i s t i c s
- a choice of control panel, electronic or
programmable
- perfect safety thanks to heat resisting insulating
double glass
- available with a single or double rotation system
- 25 to 30% faster than a conventional rotisserie
- can be opened on both sides to prevent contact
between fresh and grilled meat, so hygiene is
guaranteed
T e c h n i c a l S p e c i f i c a t i o n s S T W 7
- power 3.5 kW
- voltage 1 N ~ 5 0 … 6 0 H z
230 V
- standard accessories 3 grid shelves
Dimension
- width 985 mm
- depth 850 mm
- height 1015 mm
- weight 150 kg net
* subject to modifications
...................................................................................................
..................................................................................................
How first impressions stimulate
consumer impulses

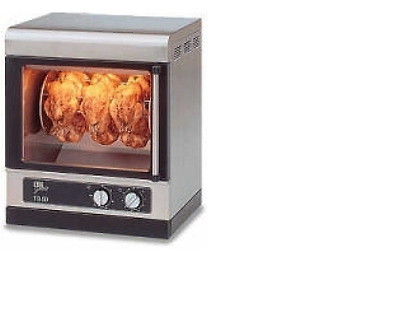

The TG50
Technical specifications TG50
- installed power 3.1 kW
- power supply 1 N ~ 50…60 Hz
230 V / 16 A
- standard accessories 3 meatforks
- effective spit length 36 cm
- capacity, max. 15 lb/ 9 kg
chicken
Dimensions
- width 570 mm
- depth 455 mm
- height 670 mm
- gross weight 60 kg
- net weight 53 kg
Accessories
- baking tray
- double basket
- shish kebab set
Unique characteristics
- for operators with high standards but little
space.
- unique heating system of convection
- direct infrared radiation
- offers many preparation possibilities for all
kinds of meat
- offers unprecedented possibilities in small
shops, cafeterias and sports arenas as well as
catering and companies!
- can be used virtually everywhere a 16 amp
mains outlet is available
............................................................................................
..............................................................................................
How first impressions stimulate
consumer impulses

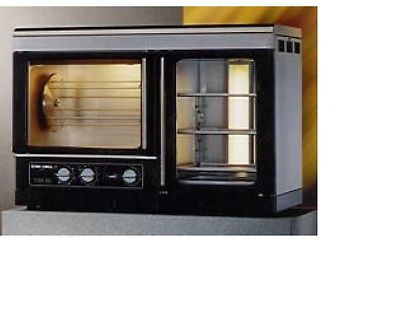

The TGW 50
Technical specifications TGW 50
- installed power 4.4 kW
- power supply 3 N ~ 50…60 Hz
400/230 V
- standard accessories 3 meatforks
- effective spit length 36 cm
- capacity, max. 15 lb/ 9 kg
chicken
Dimensions
- width 1000 mm
- depth 504 mm
- height 686 mm
- gross weight 90 kg
- net weight 80 kg
- temperature warmer 90°C maximal
(thermostatically controlled)
- maximum water tray 4 litres
capacity
Accessories
- baking tray
- double basket
- shish kebab hanger
..........................................................................................
...........................................................................................
How first impressions stimulate
consumer impulses

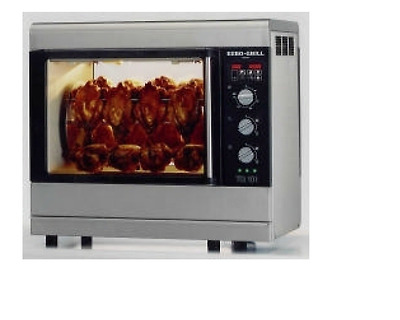

The TG 101
Technical specifications TG 101
- installed power 5.2 kW
- power supply 3 N ~ 50…60 Hz
400/230 V
- standard accessories 4 meatforks
- effective spit length 45 cm
- capacity, max. 24-30 lb/ 16-20 kg
chicken
Dimensions
- width 825 mm
- depth 500 mm
- height 750 mm
- gross weight 87 kg
- net weight 75 kg
Accessories
- meatbasket
- baking plate
- turkey spit
- meatforks
..................................................................................
..................................................................................
How first impressions stimulate
consumer impulses

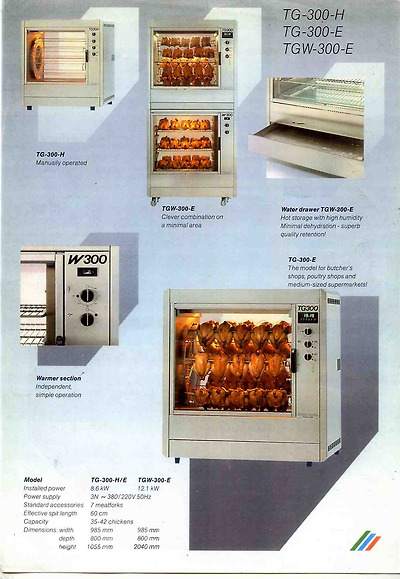

The TG 330
Technical specifications TG 330
- installed power 9.5 kW
- power supply 3 N ~ 50…60 Hz
400/230 V
- standard accessories 7 meatforks
- effective spit length 60 cm
- capacity, max. 70 lb/ 42 kg
chicken
Dimensions
- width 985 mm
- depth 800 mm
- height 1070 mm
- gross weight 179 kg
- net weight 153kg
Accessories
- meatbasket
- chickenrack
- turkey spit
- meatforks
- baking tray
.....................................................................................
......................................................................................
How first impressions stimulate
consumer impulses

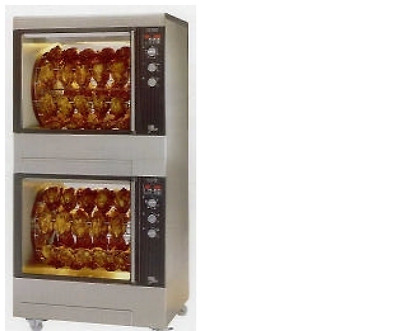

The TG 550
Technical specifications TG 550
- installed power 19 kW
- power supply 3 N ~ 50…60 Hz
400/230 V
- standard accessories 14 meatforks
- effective spit length 60 cm
- capacity, max. 140 lb/ 84 kg
chicken
Dimensions
- width 985 mm
- depth 800 mm
- height 2055 mm
- gross weight 336 kg
- net weight 303 kg
Accessories
- meatbasket
- chickenrack
- turkey spit
- meatforks
.........................................................................................................
.............................................................................................................

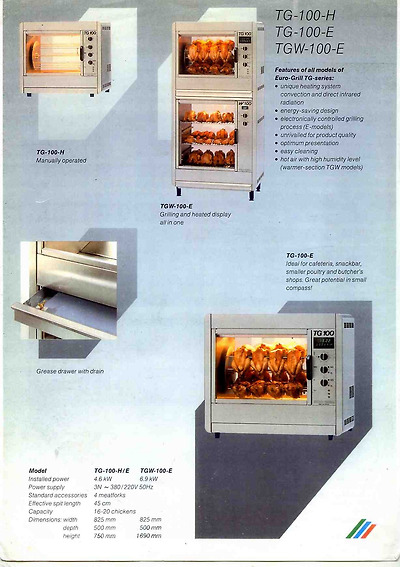

유로그릴 TG101 타입 종합카다록
........................................................................................................................
........................................................................................................................
유로그릴 100모델
.........................................................................................................................
...........................................................................................................................

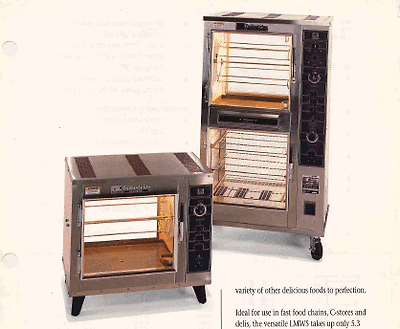

바베큐킹 미국산 제품
