예상하였던 일이 였지만...ㅡ.ㅡ 이렇게나 빨리 출시 되었네요! 출시가격이... 600이가 $1.069.99 그리고 700이가 $1,290 USD
둘다 엔진머플러 만 빠진 기자재 포함입니다...먼저 사신 분들은 큰 충격이겠지만!!!!!! 다들 떡실신 하겠구만요...
리미티드에디션하고 가격차이가 170$차이 나네요 700기준으로...오호! ^^* -K3DMC 훈마니-
| Focus Shot1(High precision metal main rotor assembly) | Focus Shot2(New elevator arm set) | Focus Shot3(Servo arm centering position visual aid, make the adjustment easier.) | |
 |
 |
 | |
| Focus Shot4(Metal stabilizer belt set) | Focus Shot5(Tail rotor assembly with double bearings and heavy duty tail with thrust bearings) | Focus Shot6(690D Carbon fiber blades) | |
 |
 |
 | |
| Focus Shot7(RCE-G600 Governor) | Focus Shot8(2 In 1 Voltage regulator combo) | Focus Shot9(DS610 Digital servo) | |
 |
 |
 | |
| Focus Shot10(DS650 Digital servo) | Focus Shot11(3G Programmable Flybarless System) | ||
 |
 |
||
| Package1: | |||
 | |||
| Package2: | |||
 | |||
|
Instruction(3G Programmable Flybarless System) : |
Specification(3G Programmable Flybarless System) : | ||
| ●3-axis gyroscopic flybarless system to simulate the stability of mechanical flybar system, yet at the same time achieving agile 3D performance. ●Utilizes Silicon Micro Machine (SMM) sensors for excellent stability. ●12 bit processors providing ultra high resolution, resulting in highly precise controls ●Software upgradable through PC interface adapter (sold eparately) ●Simplistic setup process without the need of external devices. Setup is done through 5 steps and 2 sensitivity adjustments. Rudder setup is identical to GP780 gyro, minimizing learning curve. ●Flybarless system dramatically improves 3D power output and efficiency, resulting in reduced fuel or electricity consumption. ●Highly sensitive gyroscopic sensors combined with advanced control detection routine providing higher hovering and aerobatic stability than other flybarless system. ●Suitable for all CCPM and mechanical mixing system. ●Comaptible with helicopter of all sizes from T-Rex 250 to T-Rex 700. ●Innovative Pitch Gau as an aid to facilitate pitch adjustments. ●High frame rate signal output for faster and higher precision servo response. ●Capable to operate between 4.5V to 8.4V, compatible with high voltage servos. ●Small footprint, light weight, minimalists and reliable design. |
●Suitable Voltage Range:DC 4.5~8.4V ●Current Comsumption:<80mA @ 4.8V ●Flip and Roll rate detection speed: :±300degrees/sec ●Rudder rate detection speed:±500degrees/sec ●Sensor resolution: 12bit ●Operating temperatur:-20℃~65℃ ●Operating humidity:0%~95% ●RoHS certified ●Dimension: Control box:42x26.5x14.5mm Sensor:22.3x21.7x14mm ●Weight: Control box:16g Sensor:9g |
||

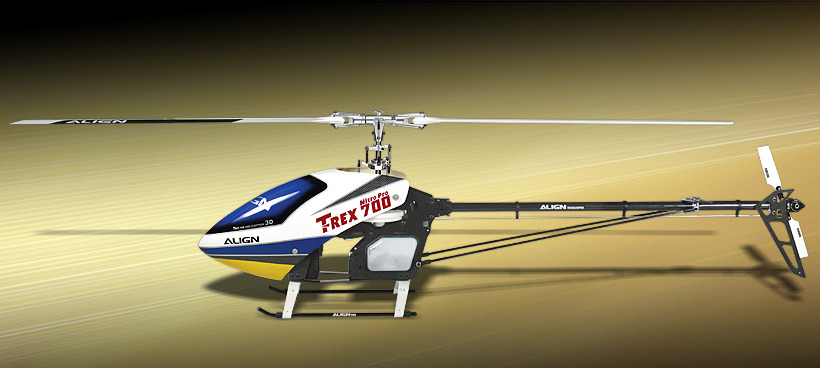

| Specification(T-REX 700NFL) : | |||
| ●Length:1335mm ●Height:450mm ●Main Blade Length:690~710mm ●Main Rotor Diameter:1562~1602mm ●Tail Rotor Diameter:281mm ●Engine Pinion Gear:20T ●Autorotation Tail Drive Gear:150T ●Drive Gear Ratio:8.2:1:4.54(E:M:T) ●Fuel Tank Capacity:630cc. ●Weight(Without Power System):Approx. 4100g | |||
|
Instruction(T-REX 700NFL) : |
Accessories: | ||
| ●Features 1.Simple and light weight design provides awesome flight performance. 2.+-15°collective pitch is possible for extreme 3D performance. 3.Heavy duty tail with thrust bearings. 4.Clutch, Fan and Bell assembly provide a very smooth operation even at high RPM. 5.Forward mounted tail servo helps to keep exhaust oil from entering servo also improves the CG. 6.Battery tray designed for easy and clean radio gear installation. 7.Fuel Tank Capacity 630cc. 8.Heavy duty tail with thrust bearings. 9.Torque Tube driven tail for incredible 90 sized performance. 10.Rigid frame design that can also handle hard crashes without damage. 11.Super engine cooling system very efficient airflow to provide unequaled cooling and horsepower. 12.New main gear with one-way bearing design for high torque. 13.Ready to fly weight (no fuel) is an incredible 4.1Kg. |
●T-REX 700 Nitro 3G Kits Set X1 Radio transmitter and electronic equipment required for assembly: | ||
| Product: | ||||
 | ||||
| Focus Shot1(High precision metal main rotor assembly) | Focus Shot2(High precision bearing mixing arms) | Focus Shot3(New elevator arm set, high rigidity metal main shaft bearing block) | ||
 |
 |
 | ||
| Focus Shot4(Metal canopy mounting bolt) | Focus Shot5(Metal stabilizer belt set) | Focus Shot6(Tail rotor assembly with double bearings and heavy duty tail with thrust bearings) | ||
 |
 |
 | ||
| Focus Shot7(600D Carbon fiber blade) | Focus Shot8(RCE-G600 Governor) | Focus Shot9(2 In 1 voltage regulator combo) | ||
 |
|
 | ||
| Focus Shot10(DS610 Digital servo) | Focus Shot11(DS620 Digital servo) | Focus Shot12(3G Programmable Flybarless System) | ||
 |
 |
 | ||
| Package1: | ||||
 | ||||
| Package2: | ||||
 | ||||
|
Instruction(3G Programmable Flybarless System) : |
Specification(3G Programmable Flybarless System) : | |||
| ●3-axis gyroscopic flybarless system to simulate the stability of mechanical flybar system, yet at the same time achieving agile 3D performance. ●Utilizes Silicon Micro Machine (SMM) sensors for excellent stability. ●12 bit processors providing ultra high resolution, resulting in highly precise controls ●Software upgradable through PC interface adapter (sold eparately) ●Simplistic setup process without the need of external devices. Setup is done through 5 steps and 2 sensitivity adjustments. Rudder setup is identical to GP780 gyro, minimizing learning curve. ●Flybarless system dramatically improves 3D power output and efficiency, resulting in reduced fuel or electricity consumption. ●Highly sensitive gyroscopic sensors combined with advanced control detection routine providing higher hovering and aerobatic stability than other flybarless system. ●Suitable for all CCPM and mechanical mixing system. ●Comaptible with helicopter of all sizes from T-Rex 250 to T-Rex 700. ●Innovative Pitch Gau as an aid to facilitate pitch adjustments. ●High frame rate signal output for faster and higher precision servo response. ●Capable to operate between 4.5V to 8.4V, compatible with high voltage servos. ●Small footprint, light weight, minimalists and reliable design. |
●Suitable Voltage Range:DC 4.5~8.4V ●Current Comsumption:<80mA @ 4.8V> ●Flip and Roll rate detection speed: :±300degrees/sec ●Rudder rate detection speed:±500degrees/sec ●Sensor resolution: 12bit ●Operating temperatur:-20℃~65℃ ●Operating humidity:0%~95% ●RoHS certified ●Dimension: Controlbox:42x26.5x14.5mm Sensor:22.3x21.7x14mm ●Weight: Control box:16g Sensor:9g |
|||

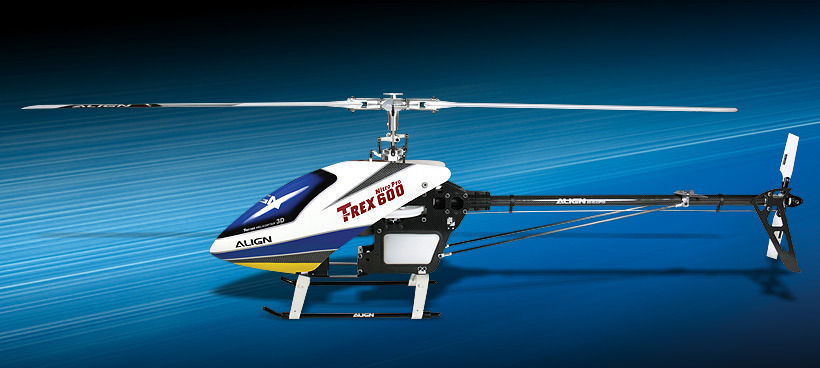

| Specification(T-REX 600NFL) : | ||||
| ●Length:1160mm ●Height:410mm ●Main blade length:600mm ●Main rotor diameter:1350mm ●Tail rotor diameter:240mm ●Engine pinion gear:20T ●Autorotation tail drive gear:180T ●Drive gear ratio:8.5:1:4.5(E:M:T) ●Flying weight:Approx. 3100g | ||||
|
Instruction(T-REX 600NFL) : |
Accessories: | |||
| ●Features 1.Bump resistance fiberglass painted canopy. Canopy also features a rigid easy clip on/off design for fast installation and removal. 2.Simple andlight weight design provides awesome flight performance nearly equal to larger helicopters while still maintaining very stable hovering and flight. 3.+-15° collective pitch is possible for extreme 3D performance. 4.Clutch, Fan and Bell assembly provide a very smooth operation even at high RPM. 5.Forward mounted tail servo helps to keep exhaust oil from entering servo also improves the CG. 6.Pitch and All servos moved forward for CG. 7.Battery tray designed for easy and clean radio gear installation. 8.Fuel Tank Capacity 440cc for about 10 minutes 3D flying. 9.Main Gear Radio 8.5:1, 1500-2200 Rotor RPM. 10.Heavy duty tail with thrust bearings. 11.95mm Tail Blades. 12.Highly efficient shaft driven tail design. 13.Rigid frame design that can also handle hard crashes without damage. 14.Carbon Fiber frames, fins and boom supports. 15.Super engine cooling system features large diameter fan and very efficient airflow to provide unequaled cooling and horsepower. 16.Clutch/Start shaft feature a 10mm ID one way bearing to eliminate any bearing problems during starting and flight. 17.Ready to fly weight (no fuel) is an incredible 3.10Kg. 18.Fuel Tank designed so that no additional header tank is required. 19.New main gear with one-way bearing design for high torque. 20.New tail boom supports. |
●T-REX 600 NFL kits set X1 ●3G Programmable Flybarless System X1 ●600D Carbon fiber blade X1 ●DS610 Digital servo X3 ●DS620 Digital servo X1 ●2 In 1 voltage regulator combo X1 ●RCE-G600 Governor X1 Radio transmitter and electronic equipment required for assembly: ●Transmitter(7-channel or more, helicoptersystem) ●Receiver(7-channel or more) ●Standard servo X1 ( for throttle) ●Align 50 engine X1 ●50 Muffler X1 ●Pitch gauge X1 ●Super starter X1 ●Engine fuel X1 ●Fuel pump X1 | |||
