[정보]각종 볼트,너트의 제원표

[master]

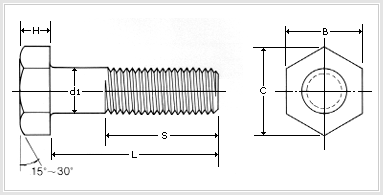

▣ Metric (KS B 1002 JIS B 1180)

Unit : mm

Bolt dia- meter	d1				H				B				C App	R Min	S	Pitch
	Basic	Tolerance			Basic	Tolerance			Basic	Tolerance						Coa- rse	Fine
		finish	Semi- finish	Regu lar		finish	Semi- finish	Regu lar		finish	Semi- finish	Regu lar
M6	6	0 -0.1 -	- 0 -0.2	+0.6 -0.15 -	4	±0.15	±0.25	±0.6	10	0 -0.2 -	0 -0.6 -	0 -0.6 -	11.5	0.25	18	1	-
M8	8	0		+0.7	5.5				13	0	0	0	15	0.4	22	1.25	1
M10	10	-0.15		-0.2	7				17	-0.25	-0.7	-0.7	19.6	0.4	26	1.5	1.25
M12	12				8				19				21.9	0.6	30	1.75	1.25
(M14)	14		0	+0.9	9		±0.3	±0.8	22	0	0	0	25.4	0.6	34	2	1.5
M16	16		-0.25	-0.2	10				24	-0.35	-0.8	-0.8	27.7	0.6	38	2	1.5
(M18)	18	0			12				27				31.2	0.6	42	2.5	1.5
M20	20	-0.2			13	±0.2			30				34.6	0.8	46	2.5	1.5
(M22)	22				14		±0.35	±0.9	32				37	0.8	50	2.5	1.5
M24	24		0	+0.95	15				36	0	0	0	41.6	0.8	54	3	2
(M27)	27		-0.35	-0.35	17				41	-0.4	-1.0	-1.0	47.3	1	60	3	2
M30	30				19				46				53.1	1	66	3.5	2
(M33)	33	0	0	+1.2	21	±0.25	±0.4	±1.0	50				57.7	1	72	3.5	2
M36	36	-0.25	-0.4	-0.4	23				55	0	0	0	63.51	1	78	4	3
M42	42				26				65	-0.45	-1.2	-1.2	75	1.2	90	4.5	-

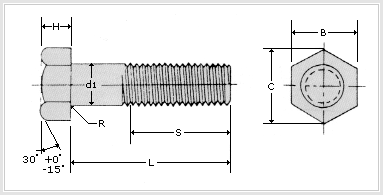

▣ Metric Hex Bolts (KS B 1002 JIS B 1180)

Unit : mm

Diameter	Pitch		d1		H		B		C	S
	Coarse	Fine	Basic	Tolerance	Basic	Tolerance	Basic	Tolerance	App.	App.
M12	1.75	1.25	12	0 -0.25	8	±0.3	19	0 -0.8	21.9	30
(M14)	2	1.5	14		9		22		25.4	34
M16	2		16		10		24		27.7	38
(M18)	2.5	1.5	18		12	±0.35	27		31.2	42
M20	2.5	1.5	20	0 -0.35	13		30		34.6	46
(M22)	2.5	1.5	22		14		32	0 -1	37	50
M24	3	2	24		15		36		41.6	54
(M27)	3	2	27		17		41		47.3	60
M30	3.5	2	30		19	±0.4	46		53.1	66
(M33)	3.5	2	33	0 -0.4	21		50		57.7	72
M36	4	3	36		23		55	0 -1.2	63.5	78
(M39)	4	3	39		25		60		69.3	84
M42	4.5	-	42		26		65		75	90
(M45)	4.5	-	45		28		70		80.8	96
M48	5	-	48		30		75		86.5	102
(M52)	5	-	52	0 -0.45	33	±0.5	80		92.4	110
M56	5.5	-	56		35		85	0 -1.4	98.1	118
(M60)	5.5	-	60		38		90		104	126
M64	6	-	64		40		95		110	134

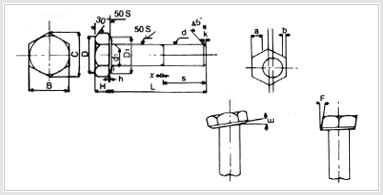

▣ DIMENSION : KS B 1010, JIS B 1186

Unit : mm

(d)	d1		H		B		C	D	D1	r	K	a-b	E	F	h	S
	Basic	Toleran ce	Basic	Toleran ce	Basic	Toleran ce	App.	App.	min.		App.	Max.	Max.	Max.		Basic	Toleran ce
M12	12	+0.7 -0.2	8	±0.8	22	0 -0.8	25.4	20	20	0.8~1.6	2	0.7	1˚	2˚	0.4 ~0.8	25	+5 0
M16	16		10		27		31.2	25	25	1.2~2.0		0.8				30
M20	20	+0.8 -0.4	13	±0.9	32	0 -1	37	30	29		2.5	0.9				35	+6 0
M22	22		14		36		41.6	34	33			1.1				40
M24	24		15		41		47.3	39	38	1.6~2.4	3	1.2				45
M27	27		17		46		53.1	44	43			1.3				50
M30	30		19	±1.0	50		57.7	48	47	2.0~2.8	3.5	1.5				55

▣ H/T NUTS

Unit : mm

Normal Size (d)	Bolt Dia	H		B		C	D	D1	a-b	E	F	H
		Basic	Tolerance	Basic	Tolerance	App.	App.	min.	Max.	Max.	Max.
M12	12	12	±0.35	22	0 -0.8	25.4	20	20	0.5	1˚	2˚	0.4 ~ 0.8
M16	16	16		27		31.2	25	25	0.8
M20	20	20	±0.4	32	0 -1	37	30	29	0.9
M22	22	22		36		41.6	34	33	1.1
M24	24	24		41		47.3	39	38	1.2
M27	27	27		46		53.1	44	43	1.3
M30	30	30		50		57.7	48	47	1.5

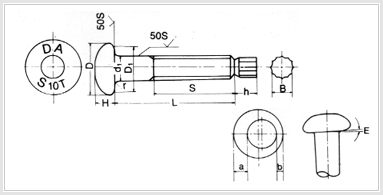

▣ ROUND HEAD T.S. BOLT

Unit : mm

Normal Diameter	d1		D1	D	H		h	B		r	a-b	E	S
	Basic	Tolerance	Min.	Max.	Basic	Tolerance	App.	Basic	Tolerance	App.	Max.	Max.	Basic	Tolerance
M16	16	+0.7 -0.2	26	27	10	±0.8	15	11.3	±0.3	1.2- 2.0	0.8	1˚	30	+5 0
M20	20	+0.8 -0.4	33	34	13	±0.9	18	14.1			0.9		35	+6 0
M22	22		37	38.5	14		19	15.4			1.1		40
M24	24		41	43	15		20	16.8		1.6- 2.4	1.2		45

▣ NUTS

Unit : mm

Normal Diameter	H		B		C	D	D1	a-b	E	F	h
	Basic	Tolerance	Basic	Tolerance	App.	App.	min.	Max.	Max.	Max.
M16	16	±0.35	27	0 -0.8	31.2	25	25	0.8	1˚	2˚	0.4 ~ 0.8
M20	20	±0.4	32	0 -1	37	30	29	0.9
M22	22		36		41.6	34	33	1.1
M24	24		41		47.3	39	38	1.2

▣ Hexagon Socket Head Cap Screws

Unit : mm

Thread Size (d)		M1.6	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)	M20	M24
Thread Pitch (p)		0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5	2.5	3
b (ref.)		15	16	17	18	20	22	24	28	32	36	40	44	48	52	60
ds	Nominal Size	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18	20	24
	Tolerance	0 -0.14				0 -0.18			0 -0.22		0 -0.27				0 -0.33
dk	Nominal Size	3	3.8	4.5	5.6	7	8.5	10	13	16	18	21	24	27	30	36
	Tolerance 1)	+0.14	±0.18			±0.22			±0.27			±0.33				±0.39
k	Nominal Size	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18	20	24
	Tolerance	0 -0.14				0 -0.18		0 -0.30	0 -0.36		0 -0.43				0 -0.52
v	Max	0.16	0.2	0.25	0.3	0.4	0.5	0.6	0.8	1.0	1.2	1.4	1.6	1.8	2	2.4
s	Nominal Size	1.5	1.5	2	2.5	3	4	5	6	8	10	12	14	14	17	19
	Tolerance 5)	+0.060 +0.020			+0.080 +0.020		+0.105 +0.030			+0.130 +0.040		+0.230 +0.050				+0.275 +0.065
e	Min	1.73	1.73	2.3	2.87	3.44	4.58	5.72	6.86	9.15	11.43	13.72	16.00	16.00	19.44	21.73
t	Min	0.7	1	1.1	1.3	2	2.5	3	4	5	6	7	8	9	10	12
r	Min	0.7	0.1	0.1	0.1	0.2	0.2	0.25	0.4	0.4	0.6	0.6	0.6	0.6	0.8	0.8
da	Min	2	2.6	3.1	3.6	4.7	5.7	6.8	9.2	11.2	14.2	16.2	18.2	20.2	22.4	26.4
Z1	Approx	-	-	-	-	-	0.9	1	1.

▣ KS B 1016, JIS B 1178

Unit : mm

d	d1		S			L1 (약)		R (약)		a (약)		b (약)	K (약)
	기준치수	허용차	L.J	LA.JA	허용차	L.LA	J	L.J	LA	LA	JA	JA
M8	8	±0.4		20	+6.3 0	32			8	41			1.2
10	10		25	30		40	45	20	10	51	50	35	1.5
12	12		32	35	+8 0	50	56	25	12	64	65	40	2
18	16	±0.5	40	40		63	71	32	16	81	85	55	2
20	20		50	50		80	90	40	20	102	105	70	2.5
24	24		63	80	+10 0	100	112	50	24	127	125	80	3
30	30	±0.6	80	90		125	140	63	30	158	155	100	3.5
36	36	±0.7	90	110		140	160	71	36	181	190	120	4
42	42	±0.8	112	125		180	200	90	42	226	220	140	4.5
48	48	±0.9	125	150	+12.5 0	200	244	100	48	252	250	160	5

▣ Material SS41, SUS 304

Unit : mm

Bolt Size			Plate Size		Tensil strength	Suitable drill
Bolt Size (A)	Total length (l)	Screw length(S)	Drgee (A")	Pipe length (B)
M6 (W1/4)	50	25	10.0	30	740 Kgf	11.0
M8 (W5/16)	60	30	12.0	35	2,120	12.5
M10 (W3/8)	75	45	14.0	40	2,930	14.5
	100	70
	125	85
	150	100
	200	150
	250	180
	300	230
M12 (W1/2)	100	60	17.0	50	4,710	18.0
	125	75
	150	100
	200	150
	250	180
	300	230
M16 (W5/8)	100	50			4,740	22.0
	125	70	21.0	65	5,200
	150	90
	200	140
	250	180
	300	230			7,690
M20 (W3/4)	150	80			6,500	26.5
	200	130	25.0	75	16,880
	250	180
	300	230
M22 (W7/8)	200	130	28.0	95	19,750	29.0
	250	180
	300	230
M24 (W1")	200	130	32.0	110	27,600	33.0
	250	180
	300	230

▶ 특징

플라스틱 인서트,주물 인서트 입니다. 거푸집등 건축현장에 쓰입니다. 단가표상 길이는 임의로 재질을 표기하였습니다.

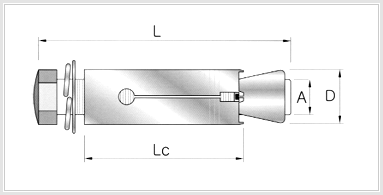

▣ Material SS41, SUS 304

Unit : mm

품 명	볼트 치수		슬리브 치수		적합드릴	비 고
	경(A)	전장(L)	경(D)	전장(Lc)
WCT	3/8 (10mm)	60.5mm	13.6mm	37.0mm	14 ~ 14.5mm
WP	3/8 (10mm)		13.6mm	37.0mm	14 ~ 14.5mm
WCT	1/2 (12mm)	82.0mm	16.6mm	45.5mm	17 ~ 17.5mm
WP	1/2 (12mm)		16.6mm	45.5mm	17 ~ 17.5mm

※ 비고 : 볼트치수는 사용자의 필요에 따라 교체 가능함.

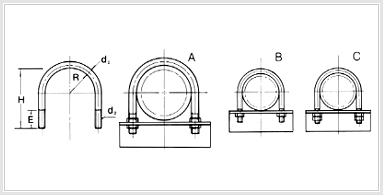

▣ Metric

Unit : mm

Nominal Size	Out dia of Pipe	U-BOLT
		R	d1	d2	TYPE A		TYPE B		TYPE C
					H	E	H	E	H	E
15	21.7	12	10	M10	-	-	39	20	47	30
20	27.2	15	10	M10	-	-	45	20	53	30
25	34.0	18	10	M10	-	-	52	20	60	30
32	42.7	23	10	M10	-	-	60	20	68	30
40	48.6	26	10	M10	-	-	66	20	74	30
50	60.5	32	10	M10	-	-	78	20	86	30
65	76.3	40	12	M12	-	-	98	25	108	35
80	89.1	46	12	M12	-	-	110	25	120	35
90	101.6	52	12	M12	-	-	123	25	133	35
100	114.3	59	16	M16	141	50	-	-	-	-
125	139.8	72	16	M16	167	50	-	-	-	-
150	165.2	85	16	M16	192	50	-	-	-	-
175	190.7	98	16	M16	218	50	-	-	-	-
200	216.3	111	20	M20	249	60	-	-	-	-
225	241.8	124	20	M20	274	60	-	-	-	-
250	267.4	137	20	M20	300	60	-	-	-	-
300	318.5	163	24	M24	357	70	-	-	-	-
350	355.6	181	24	M24	394	70	-	-	-	-
400	406.4	207	24	M24	444	70	-	-	-	-
450	457.2	233	30	M30	505	85	-	-	-	-

▣ Unified (Ref).

Unit : mm

Nominal Size	Pipe			U-BOLT
	Pipe Type		Pipe Out Dia	R	d1	d2	TYPE A		TYPE B		TYPE C
	A	B					H	E	H	E	H	E
15	15	1/2	21.7	11	10	3/8	-	-	38	16	47	25
20	20	3/4	27.2	14	10	3/8	-	-	44	16	53	25
25	25	1	34.0	18	10	3/8	-	-	50	16	59	25
32	32	1 1/4	42.7	22	10	3/8	-	-	58	16	67	25
40	40	1 1/2	48.6	25	10	3/8	-	-	64	16	73	25
50	50	2	60.5	31	10	3/8	-	-	76	16	85	25
65	65	2 1/2	76.3	39	13	1/2	-	-	96	20	106	30
80	80	3	89.1	45	13	1/2	-	-	110	20	120	30
90	90	3 1/2	101.6	51	13	1/2	-	-	122	20	132	30
100	100	4	114.3	58	16	5/8	140	50	-	-	-	-
125	125	5	139.8	71	16	5/8	166	50	-	-	-	-
150	150	6	165.2	84	16	5/8	192	50	-	-	-	-
175	175	7	190.7	97	16	5/8	218	50	-	-	-	-
200	200	8	216.3	110	19	3/4	248	60	-	-	-	-
225	225	9	241.8	122	19	3/4	274	60	-	-	-	-
250	250	10	267.3	135	19	3/4	300	60	-	-	-	-
300	300	12	318.5	161	25	1	359	75	-	-	-	-
350	350	14	355.6	179	25	1	395	75	-	-	-	-
400	400	16	406.4	205	25	1	445	75	-	-	-	-
450	450	18	457.2	230	32	1 1/4	507	95	-	-	-	-

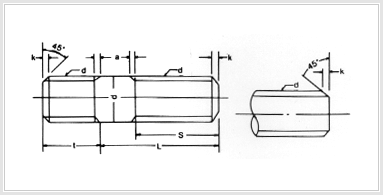

※ DIMENSION : KSV3032 JIS F3022

Stud Bolt for Pressure-Temperature Piping		Continuous Thread Stud (General Purpose)

▣ JIS B1173

Unit : mm

Diameter			M8	M10	M12	(M14)	M16	(M18)	M20
d3	Tolerance		0 -0.15		0 -0.18				0 -0.21
S	Basic		18	20	22	25	28	30	32
	Tolerance		+1.9 0	+2.2 0	+2.6 0	+3 0			+5 0
t	Class1	Basic		12	15	18	20	22	25
		Tolerance	+1.1 0				+1.3 0
	Class2	Basic	11	15	18	21	24	27	30
	Class3	Basic	16	20	24	28	32	36	40
		Tolerance	+1 0	+1.3 0			+1.6 0
L	Basic	20-30 32-50 55-80 90-120 140-150	Tolerance		±0.42 ±0.5 ±0.6 ±0.7 ±0.8

Nominal Size or Diameter of Stud D

Tolerances on Stud Lengths-in.

L Equal to 6 in. and Under

L Over 6 in.

No.	8 to 5/16 in. incl.
	Over 5/16 in. to 3/4 in. Over 3/4 in. to 1-1/4 in. Over 1-1/4 in.

±1/32
±1/16
±1/8
±1/4

±1/16
±1/8
±3/16
±1/4

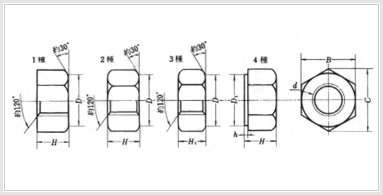

▣ KS B 1012-86 JIS B 1181-1985

Unit : mm

	나사의 호칭 (d)		H	H1	B	C (약)	D (약)	h (약)	D1(최소)
	보통나사	가는나사
육각너트 (미터나사) 상	M2	-	1.6	1.2	4	4.6	3.8	-	-
	(M2.2)	-	1.8	1.4	4.5	5.2	4.3	-	-
	M2.3	-	1.8	1.4	4.5	5.2	4.3	-	-
	M2.5	-	2	1.6	5	5.8	4.7	-	-
	M2.6	-	2	1.6	5	5.8	4.7	-	-
	M3 x 0.5	-	2.4	1.8	5.5	6.4	5.3	-	-
	M3.5	-	2.8	2	6	6.9	5.8	-	-
	M4 x 0.7	-	3.2	2.4	7	8.1	6.8	-	-
	M4.5	-	3.6	2.8	8	9.2	7.8	-	-
	M5 x 0.8	-	4	3.2	8	9.2	7.8	0.4	7.2
육각너트 (미터나사) 상 중 보통	M6	-	5	3.6	10	11.5	9.8	0.4	9.0
	(M7)	-	5.5	4.2	11	12.7	10.8	0.4	10
	M8	M8 x 1	6.5	5	13	15.0	12.5	0.4	11.7
	M10	M10 x 1.25	8	6	17	19.6	16.5	0.4	15.8
	M12	M12 x 1.25	10	7	19	21.9	18	0.6	17.6
	(M14)	(M14 x 1.5)	11	8	22	25.4	21	0.6	20.4
	M16	M16 x 1.5	13	10	24	27.7	23	0.6	22.3
	(M18)	(M18 x 1.5)	15	11	27	31.2	26	0.6	25.6
	M20	M20 x 1.5	16	12	30	34.6	29	0.6	28.5
	(M22)	(M22 x 1.5)	18	13	32	37.0	31	0.6	30.4
	M24	M24 x 2	19	14	36	41.6	34	0.6	34.2
	(M27)	(M27 x 2)	22	16	41	47.3	39
	M30	M30 x 2	24	18	46	53.1	44
	(M33)	(M33 x 2)	26	20	50	57.7	48
	M36	M36 x 3	29	21	55	63.5	53
	(M39)	(M39 x 3)	31	23	60	69.3	57
	M42	-	32	25	65	75	62
	(M45)	-	36	27	70	80.8	67
	M48	-	38	29	75	86.5	72
	(M52)	-	42	31	80	92.4	77
	M56	-	45	34	85	98.1	82
	(M60)	-	48	36	90	104	87
	M64	-	51	38	95	110	92
	(M68)	-	54	40	100	115	97
	-	M72 x 6	58	42	105	121	102
	-	(M76 x 6)	61	46	110	127	107
	-	M80 x 6	64	48	115	133	112
	-	(M85 x 6)	68	50	120	139	116
	-	M90 x 6	72	54	130	150	126
	-	M95 x 6	76	57	135	156	131
	-	M100 x 6	80	60	145	167	141
	-	(M105 x 6)	84	63	150	173	146
	-	M110 x 6	88	65	155	179	151
	-	(M115 x 6)	92	69	165	191	161
	-	(M120 x 6)	96	72	170	196	166
	-	M125 x 6	100	76	180	208	176
	-	(130 x 6)	104	78	185	214	181

▣ METRIC

Unit : mm

규 격(M)	H	D	B	규 격(M)	H	D	B
M4	5	10.5	7	M8	8.0	17.5	12.7
M5	5.5	12	8	M10	8.7	18.6	14
M6	6.0	14.0	10	M12	11.2	24	17
M8	8.0	17.5	12

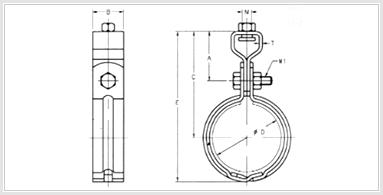

▣ load, dimentions (mm)

Nominal Pipe Size	B	T	M	M1	D	A	C	E	Maximun recommended load, kg
15	25	1.8	M10 (3/8")	M6 (1/4")	16	30	50	68	280
20	25	1.8	M10 (3/8")	M6 (1/4")	23	30	53	73	280
25	25	1.8	M10 (3/8")	M6 (1/4")	29	30	56	80	280
32	25	1.8	M10 (3/8")	M6 (1/4")	35	30	61	88	280
40	25	1.8	M10 (3/8")	M6 (1/4")	42	30	64	92	280
50	30	2.3	M10 (3/8")	M6 (1/4")	54	37	80	115	280
65	30	2.3	M10 (3/8")	M6 (1/4")	67	37	90	132	450
80	40	2.6	M10 (3/8")	M6 (1/4")	80	48	110	157	450
100	40	2.6	M10 (3/8")	M6 (1/4")	105	48	125	185	450
125	40	2.6	M12 (1/2")	M10 (3/8")	131	60	150	225	450
150	50	3.2	M12 (1/2")	M10 (3/8")	156	70	185	271	450
200	50	3.2	M12 (1/2")	M10 (3/8")	208	70	215	324	900
250	50	4.5	M12 (1/2")	M12 (1/2")	259	70	230	375	1350

HOME > 제품소개 > 행가 > 절연 파이프 행가

▶ Dimensions(㎜)

PIPE SIZE	ØD	t × B	M	M1	H	LOAD Kg
15	16	2.0 × 26	M10	M6	68	280
20	22	2.0 × 26	M10	M6	73	280
25	29	2.0 × 26	M10	M6	80	280
32	35	2.0 × 26	M10	M6	88	280
40	43	2.0 × 26	M10	M6	92	280
50	54	2.3 × 31	M10	M6	115	280
65	77	2.3 × 31	M10	M6	132	280
80	80	2.6 × 41	M10	M6	157	450
100	105	2.6 × 41	M10	M6	185	280
125	131	2.6 × 41	M12	M10	225	280
150	156	3.2 × 51	M12	M10	271	900
200	207	3.2 × 51	M12	M10	324	900
250	258	4.5 × 51	M12	M12	375	1350
300	300	4.5 × 56	M16	M16	450	1800

▣ 칼부럭

Unit : mm

FD 플라스틱 앵커						PVC 칼부럭
품 명	드릴직경(￠)	길 이	구멍길이	포장량(EA)		품 명	드릴직경(￠)	길 이	구멍길이	포장량(EA)
FD5	5	25	30	200		F6	6.5	30	35	200
FD6	6	30	35	200		F8	8.5	40	45	200
FD8	8	40	45	200
FD10	10	50	55	100

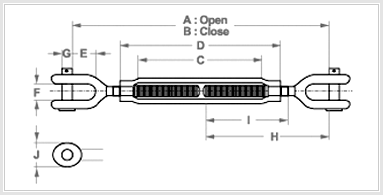

▣ 턴버클

규 격 (Inch)	길이 (Length mm)						치수 (mm)		사용하중 (Ton)		무게 (kg)
	A			B			C	D
	EYE	JAW	HOOK	EYE	JAW	HOOK	All Type	All Type	EYE JAW	HOOK	EYE	JAW	HOOK
3/8x6	443.8	410	-	291.3	257.6	-	152.4	180.8	0.54	-	0.3	0.4	-
1/2x6	510	470	-	332.2	292.1	-	152.4	190.5	1	-	0.5	0.7	-
1/2x9	662.4	622.3	-	408.4	368.3	-	228.6	266.7	1	-	0.7	0.8	-
1/2x12	814.8	774.7	-	484.6	444.5	-	304.8	342.9	1	-	1	1.1	-
5/8x6	557	509.3	520.7	372.9	325.1	336.6	152.4	200.2	1.59	1.02	1.3	1.2	1.2
5/8x9	709.4	661.7	673.1	449.1	401.3	412.8	228.6	276.4	1.59	1.02	1.5	1.6	1.5
5/8x12	861.8	814.1	825.5	525.3	477.5	489	304.8	352.6	1.59	1.02	1.6	1.8	1.6
3/4x6	606.5	546.1	568.5	416.1	355.6	378	152.4	209.6	2.36	1.36	1.7	1.9	1.8
3/4x9	759	698.5	720.9	492.3	431.8	454.2	228.6	285.8	2.36	1.36	2.1	2.5	2.4
3/4x12	911.4	850.9	873.3	568.5	508	530.4	304.8	362	2.36	1.36	2.5	2.9	2.5
3/4x18	1216.1	1155.7	1178.1	720.9	660.4	682.8	457.2	514.4	2.36	1.36	3.3	3.7	3.7
7/8x12	941.6	891.8	914.4	592.3	542.5	565.2	304.8	371.3	3.27	1.82	3.3	3.7	3.7
7/8x18	1246.4	1196.6	1219.2	744.7	694.9	717.6	457.2	523.7	3.27	1.82	4.5	4.9	4.5
1x6	710.4	627.9	651	507.2	424.7	447.8	152.4	228.6	4.54	2.27	4.1	4.6	4.2
1x12	1015.2	932.7	955.8	659.6	577.1	600.2	304.8	381	4.54	2.27	5.2	5.7	5.4
1x18	1320	1237.5	1280.6	812	729.5	752.6	457.2	533.4	4.54	2.27	6.4	6.9	6.4
1x24	1624.8	1542.3	1565.4	964.4	881.9	905	609.6	685.8	4.54	2.27	7.8	8.2	7.8
1 1/4x12	1087.4	1011.9	1027.2	719.1	643.6	658.9	304.6	384	6.9	2.95	8.6	9.3	9.3
1 1/4x18	1392.2	1316.7	1332	817.5	796	811.3	457.2	536.4	6.9	2.95	10.4	11.2	10.4
1 1/4x24	1697	1621.5	1637.8	1023.9	948.4	963.7	609.6	688.8	6.9	2.95	12.3	12.8	12.3
1 1/2x12	1155.7	1054.1	-	774.7	673.1	-	304.8	400.1	9.72	-	12.5	13.9	-
1 1/2x18	1460.5	1358.9	-	927.1	825.5	-	457.2	552.5	9.72	-	14.1	16.7	-
1 1/2x24	1765.3	1663.7	-	1079.5	977.9	-	609.6	704.9	9.72	-	17	18.5	-
1 3/4x18	1457.5	1355.9	-	1000.3	898.7	-	457.2	568.5	12.71	-	23.8	24.5	-
1 3/4x24	1762.2	1660.7	-	1152.7	1051.1	-	609.6	720.9	12.71	-	26.3	28.8	-
2x24	1922.5	1766.3	-	1312.9	1156.7	-	609.6	736.6	16.8	-	38.7	42.8	-
2 1/2x24	1997	1853.7	-	1387.3	1244.1	-	609.6	788.9	27.24	-	65.5	74.9	-
2 3/4x24	2057.4	1898.7	-	1447.8	1289.1	-	609.6	788.9	34.05	-	88.1	89.9	-

HOME > 제품소개 > 파이프슈 > 동파이프 슈

▶ Dimensions(㎜)

호칭	치수 mm
	W (최소)	L1 (최소)	L2 (최소)	L3 (최소)	L4 (최소)	G1	G2	G3	G4	G5 (최소)	H (최소)	M (최소)	∮ (최소)	T1 (최소)	T2 (최소)
15	72	200	240	78	56	25	50	50	38	15	72	M10	12	해 당 없 슴	5
20				84	62
25				90	68
32				99	77
40				105	83									4.5
50				117	95
65				133	111
80	96			145	123
90				158	136
100				171	149
125				196	174
150				222	200
175
200				273	251
225
250				324	302
300				375	353
350	146	300	340	412	390	32		75		18				6	9
400				463	441
450				513	491
500				564	542
550				615	593
600				666	644

호칭	치수 mm								최대사용 하중 kg
	T3 (최소)	T4 (최소)	T5 (최소)	T6 (최소)	T7 (최소)	D
						동및 동합금관 기준치수	스테인리스강및 강판기준수치	허용차
15	6	3	3	3	3	16	2	+ 8% 0	280
20						23	28
25						29	34
32						35	43
40						42	49
50						54	61
65						67	77		450
80						80	89
90							102
100						105	115	+ 5% 0
125						131	140
150						156	166
175									900
200						207	217	+ 4% 0
225									1350
250							268	+ 3% 0
300							319		1800
350	9		4.5	4.5	4.5		356	+ 2% 0	2250
400							407		2700
450							457		3600
500							508		4500
550							559
600							610		5900

HOME > 제품소개 > 파이프슈 > 파이프 슈

▶ 제품특성
- 난연성특수 PVC
- 소음 방지용 카바 부착

HOME > 제품소개 > 인서트 플레이트

▶ SIZE RANGE ; 150mm through 300mm

▶ MATERIAL ; carbon steel

▶ FINISH ; black

▶ Specify model name ; 인서트 플레이트 SH510

▶ Dimensions(㎜)

TYPE	t	t1	L x W	H
A	6	12	200 x 200	100
B	6	12	150 x 150	100
C	9	12	150 x 150	100
D	9	12	200 x 200	100
E	9	12	250 x 250	100

유니온센터;02-2273-8910
