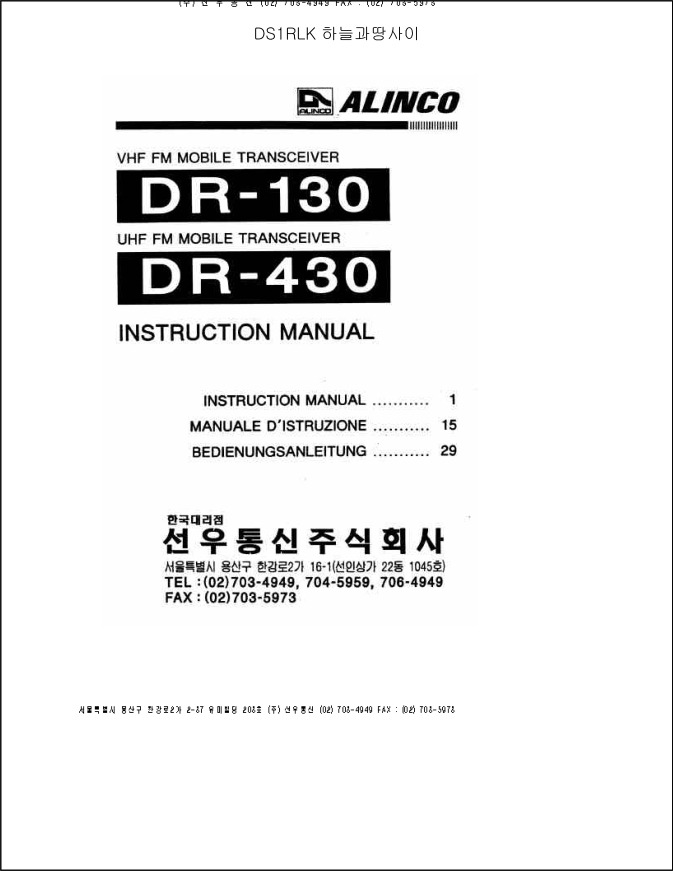

ALINCO DR-130 DR-430 manual

Features
20 Memories VFO Scanning Memory Scanning Odd Offsets CTCSS Encode	1750 Hz Tone Burst Timer Out Timer Optional CTCSS Decode Reverse Key DTMF Microphone

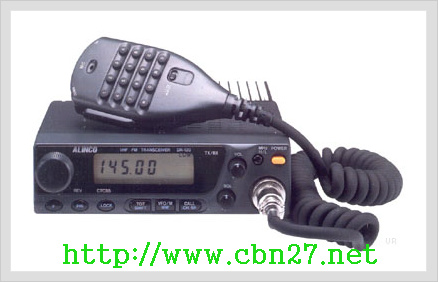

The Alinco DR-130T is a full-featured 2 Meter 35 watt FM transceiver with a backlit display, 20 memory channels plus extended receive. Other refinements include:  CTCSS Encode, 1750 Hz European Tone Burst, time out timer, repeater reverse, scan and backlit display. Power output is 35 or 5 watts. The receive range is 136-173.995 MHz. 5.6 x 1.61 x 6.1 inches 1.9 Lbs (141x41x154mm 0.86 kg). With EMS-12 DTMF hand mic.

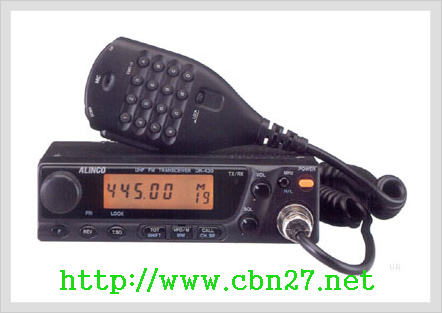

The Alinco DR-430T is similar but covers the 440 band rather than 2 meters. Power output is 35/5 watts.

//
