[스크랩] [용산알씨]할인묶음세트 TLR 22 4.0 SR+ (하비윙 밴딧 13.5T,V3.1 120A ESC,프로그램카드,국산 DT750서보 포함)
작성자하비센터 관리자작성시간17.08.24조회수293 목록 댓글 0말머리 선택하지 않고 작성되는글은 삭제처리하겠습니다,
사이트 주소와 사진만 올려두고 사이트 들어와서 구매 하란식의 홍보는 제한합니다.
1. 제품 설명 ::할인묶음 !!! 경량스톡버전!!!) TLR 22 4.0 SR 2WD SPEC Buggy Race Kit 전동버기 (카펫 및 아스트로터프)
2.가격 ::699,000원 (749,000원 )
3.쇼핑몰 주소 및 연락처 :: (수입사 주소및 연락처)
4.제품 상세 사진. :: (제품에 관한 주소 링크를 허용하지 않습니다!! 직접 찍어서 올려주시기 바랍니다,,)
안녕하세요.용산알씨입니다.

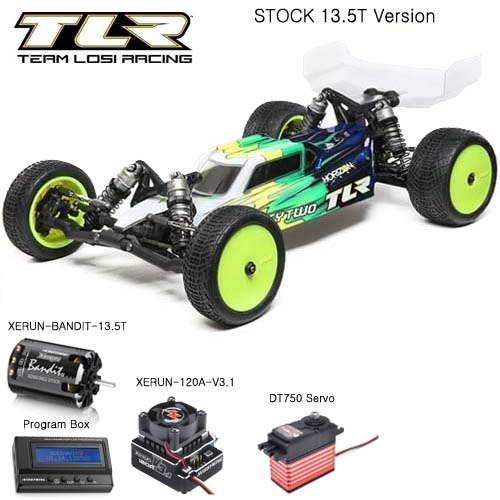

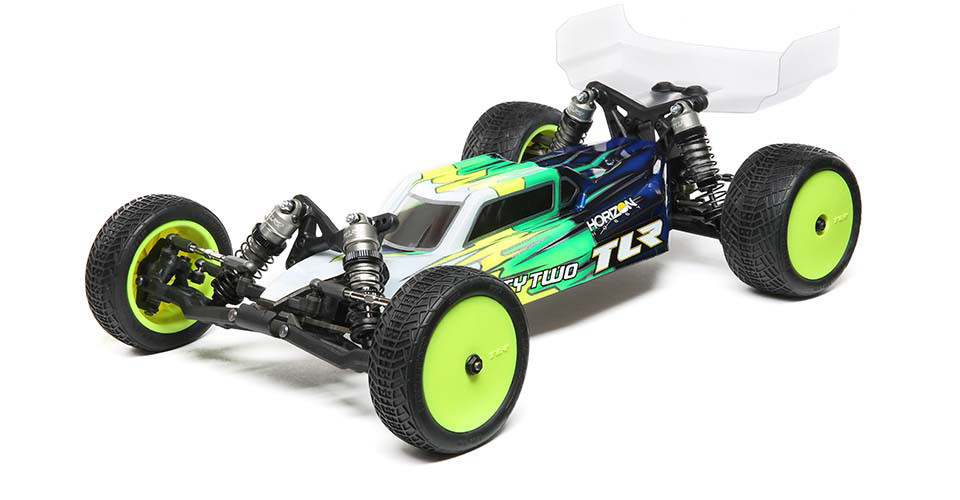

TLR(Team Losi Raing) 에서 출시한 22 4.0 SR 레이싱 1/10 2륜전동버기를 소개합니다.새로운 SR버전은 22 4.0 차량을 기반으로
설계하였고 2.5MM 7075-T6 경량강화알류미늄 샤시,VLA프론트 서스팬션,경량화된 드라이브트레인,3단기어(효율적인구동방식),Gen II 12MM 빅보쇽,알류미늄플레이트 리어허브,울트라 경량 바디...등이 특징입니다.ROAR 경기기준에 적합한 차량입니다.
무게는 오직 1499g !!!
여기에다 경기용 스톡 Bandit 13.5T+XERUN-120A-V3.1-BLACK 콤보세트로 할인묶음으로 출시하였습니다.하비윙사 최고급 프로드램카드도 포함되여있습니다.

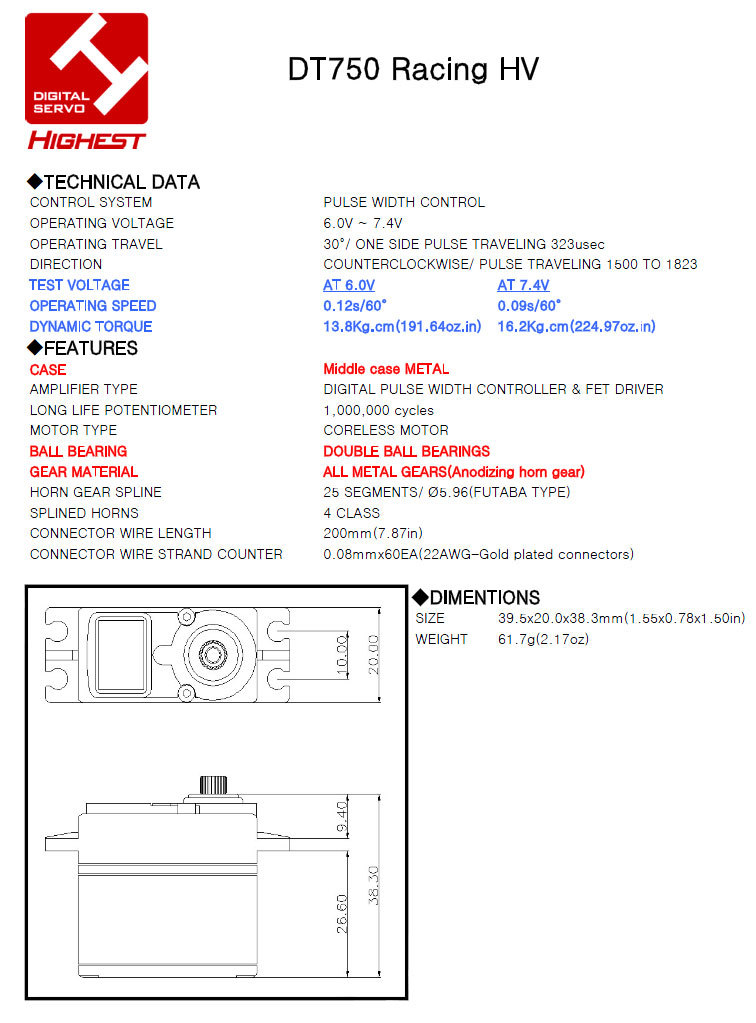

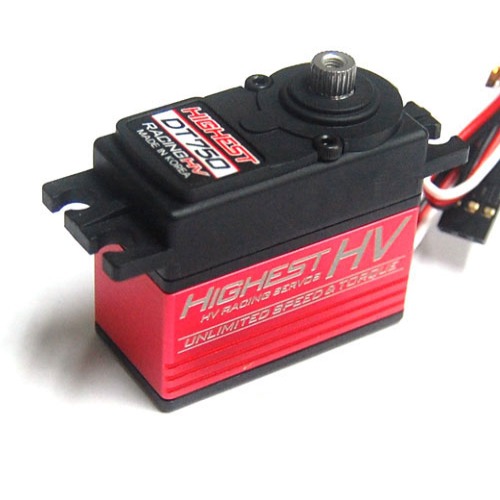

서보는 국산 하이스트 고성능 DT750서보가 포함되여있습니다.
도소매 전부 오픈한 상태입니다.^^

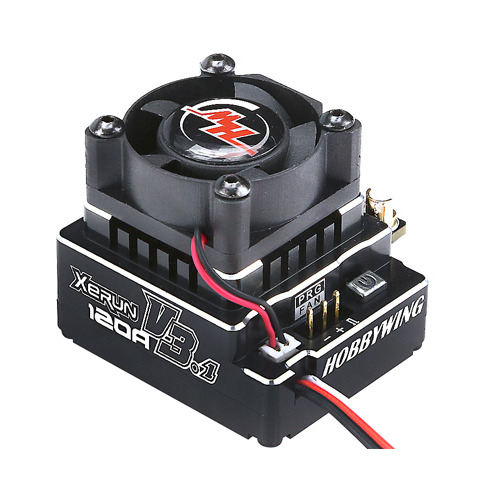

| Specification | XERUN-120A-V3.1 |
| Current | Continuous: 120A, Burst: 760A |
| Input * Note #1 | 4-9 cells NiMH/NiCd or 2-3S LiPo |
| Built-in BEC | 6V@3A (linear mode) |
| Resistance | 0.0003 Ohm |
| Motor Supported | Sensored and sensorless brushless motor |
| Suitable Motor | With 2 Lipo or 4-6 NiMH 1/10 on-road: >=3.5T, 1/10 off-road: >=5.5T With 3 Lipo or 7-9 NiMH 1/10 on-road: >=5.5T, 1/10 off-road: >=8.5T |
| Suitable Car | 1/10,1/12 all competitions 1/10,1/8 rock crawler |
| Cooling Fan | 5V |
| Size | 37.5mm(L) * 31mm(W) * 29.5mm(H), excludes wire connectors 37.5mm(L) * 37mm(W) * 29.5mm(H), includes wire connectors |
| Weight | 93g |

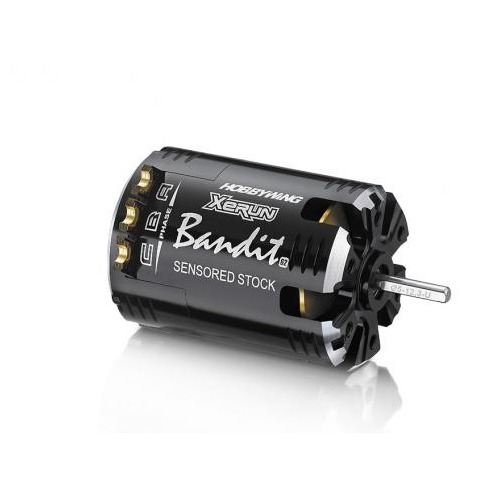

Features:
- Extreme powerful (the output power of BANDIT G2 motor is 20% higher than the standard V10 motors), specially designed for out-law STOCK races.
- Designed to withstand extreme levels of use at its highest peak performance.
- Complete new CNC cut motor case with extra front spoke ventilation slots.
- Works as a sensored unit and also sensorless without the sensor cable attached.
- Multiple steps of mechanical timing adjustable from 20 degree to 50 degree.
- Minimal maintenance is required with precise machining technology which ensures a minimum tolerance end play of the rotor shaft. Eliminating the copper shims used in most of today’s motors.
- 200°C high temperature tolerance and high purity copper windings maximize conductivity and reliability.
- 200°C high temperature tolerance sintered NdFeb magnets.
- Extreme low resistance multi-layered outlet PCB and high RPM NSK bearings.
- Includes two sensor wires - one 80mm and one 200mm
- Note: BANDIT G2 motor is compliant with IFMAR rules but not ROAR rules.
Specifications:
kV Without Load (RPM/V): 3000
Resistance: 0.0198
Input Voltage: 2-3S
Current Without Load (A): 2.4
Max. Output Power* (W): 265
Current @Max Output Power (A): 73
Motor Diameter x Length: 36x52.5mm
Shaft Diameter x Length: 3.175x14.6mm
Pole: 2
Weight: 180g
Application: 1/10 TC for stock racing
*The "Max. Output Power" is measured with 7.4V input voltage and ESC at ZERO timing. This parameter is neither the “maximum input power” nor the “rating power”, it is calculated by “RPM x Torque / 9550”

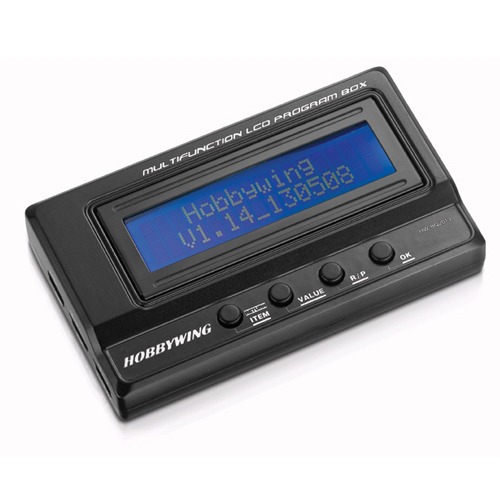

1. Setting or Updating the following ESC:
a) XERUN and EZRUN series Car ESC (Version 2.0 or later)
b) XERUN-120A V3 & V3.1 ESC
c) PLATINUM series helicopter/aircraft ESC
d) PLATINUM V3 series helicopter/aircraft ESC
2. Works as a Lipo battery voltmeter.
1 Working Modes
1.1 Works as an individual device to set the ESC, the value of each parameter is displayed on the LCD screen.
1.2 Works as an USB adapter to link the ESC with a PC to update the firmware of the ESC or set the ESC by HOBBYWING USB LINK SOFTWARE .
1.3 Works as a Lipo battery voltmeter to measure the voltage of the whole battery pack or each cell.
2 Specifications
2.1 Size: 90mm (L) * 51mm (W) * 17mm (H)
2.2 Weight: 65g
2.3 Input Voltage: 4.5-12.6V
(If the ESC hasn’t a built-in BEC, you must use an additional battery pack to supply the program box)
2.4 Displayer: 16*2 characters LCD.
2.5 Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug)
3 Compared with the "2 in 1 Professional LCD Program Box"
Models of LCD program boxes:
2 in 1 Professional LCD program box (Already stopped)
Multifunction LCD program box: It is a new priduct uses MCU (microprocessor) with larger memory, it has a new function to work as Lipo battery voltmeter to measure the voltage of the whole battery pack and each cell.
- 2 in 1 Professional LCD program box:
It has 2 types of firmware
a) Type A: The firmware with postfix “_V3” (eg. V1.11_120331_V3) is only suitable for XERUN-120A-SD V3 and V3.1 ESC
b) Type B: Firmware without postfix “_V3” (eg. V1.08_120504) is suitable for the ESC below except the XERUN-120A-SD V3 or V3.1 ESC.
(주)용산알씨 고객만족센터 : 02-711-0922
