1. 제품 설명 ::TLR 22 4.0 SR
2.가격 ::380,000원
3.쇼핑몰 주소 및 연락처 :: (수입사 주소및 연락처)
4.제품 상세 사진. :: (제품에 관한 주소 링크를 허용하지 않습니다!! 직접 찍어서 올려주시기 바랍니다,,)
안녕하세요,팀로시 한국수입사 용산알씨입니다.

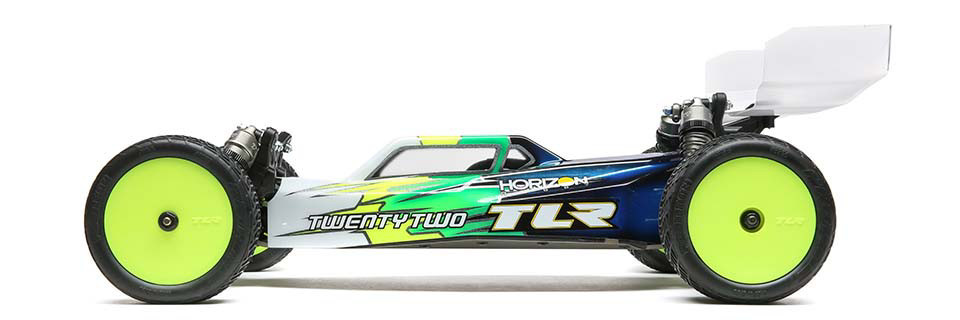

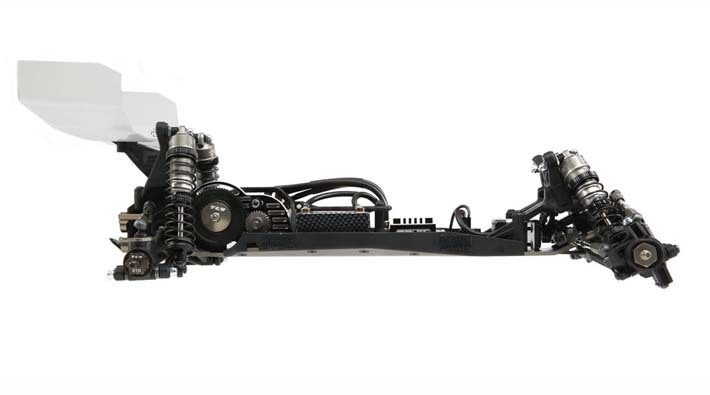

TLR(Team Losi Raing) 에서 출시한 22 4.0 SR 레이싱 1/10 2륜전동버기를 소개합니다.
새로운 SR버전은 22 4.0 차량을 기반으로설계하였고 2.5MM 7075-T6 경량강화알류미늄 샤시,VLA프론트 서스팬션,
경량화된 드라이브트레인,3단기어(효율적인구동방식),Gen II 12MM 빅보쇽,알류미늄플레이트 리어허브,울트라 경량 바디...등이 특징입니다.ROAR 경기기준에 적합한 차량입니다.
http://buyrc.co.kr/product/product_detail.asp?product_number=94302 (제품바로가기)

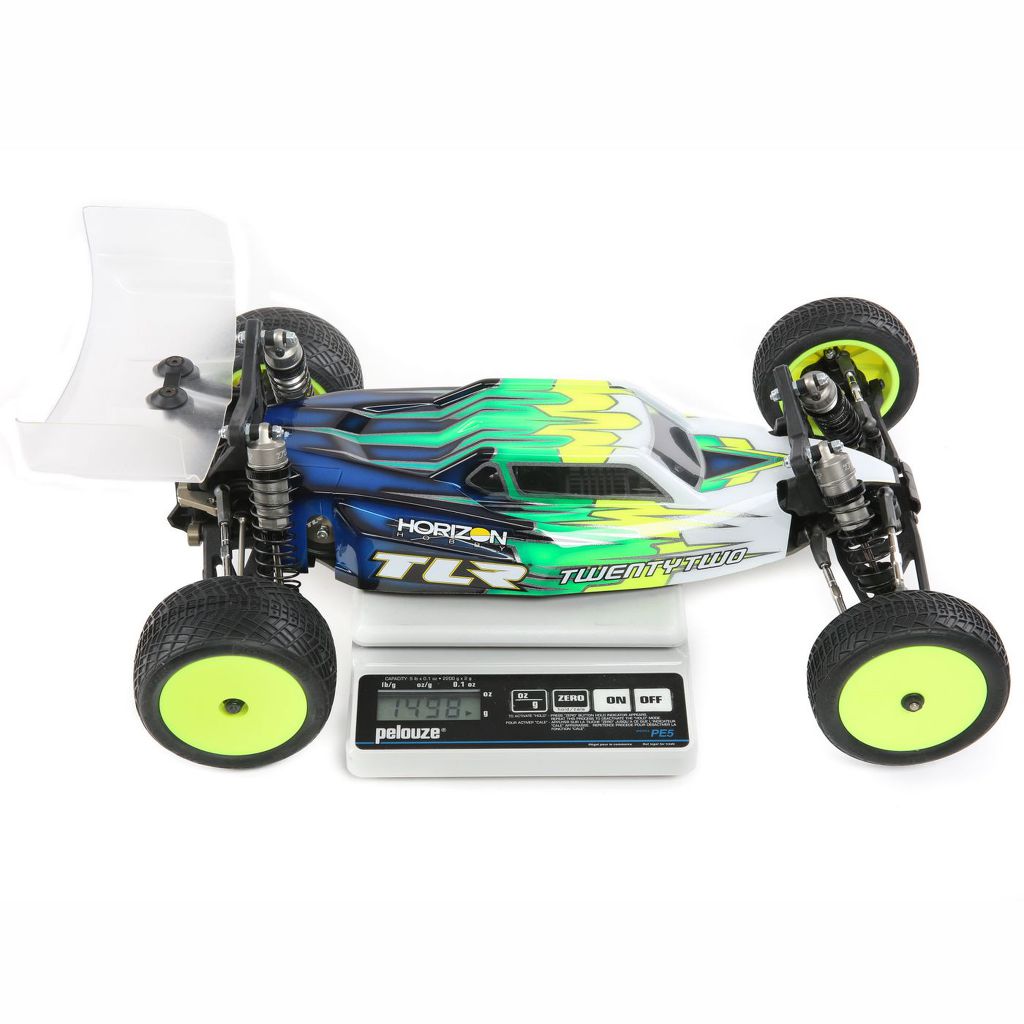

무게는 오직 1499g !!!

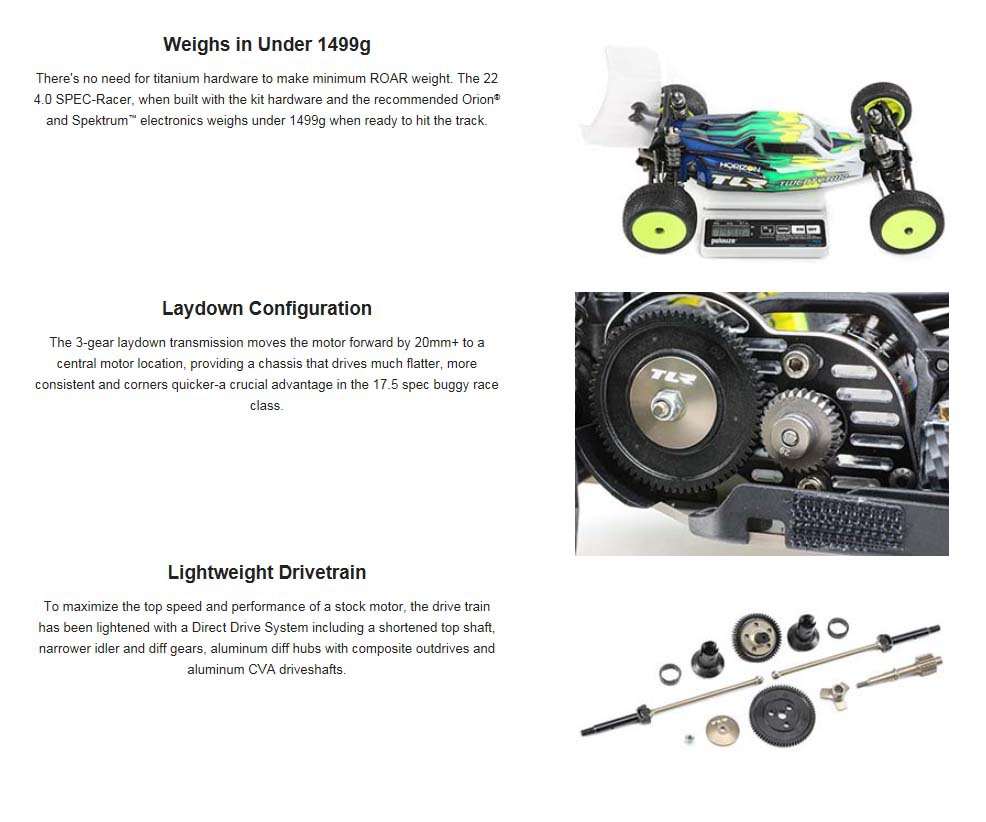

Weighs in Under 1499g
There's no need for titanium hardware to make minimum ROAR weight. The 22 4.0 SPEC-Racer, when built with the kit hardware and the recommended Orion® and Spektrum™ electronics weighs under 1499g when ready to hit the track.

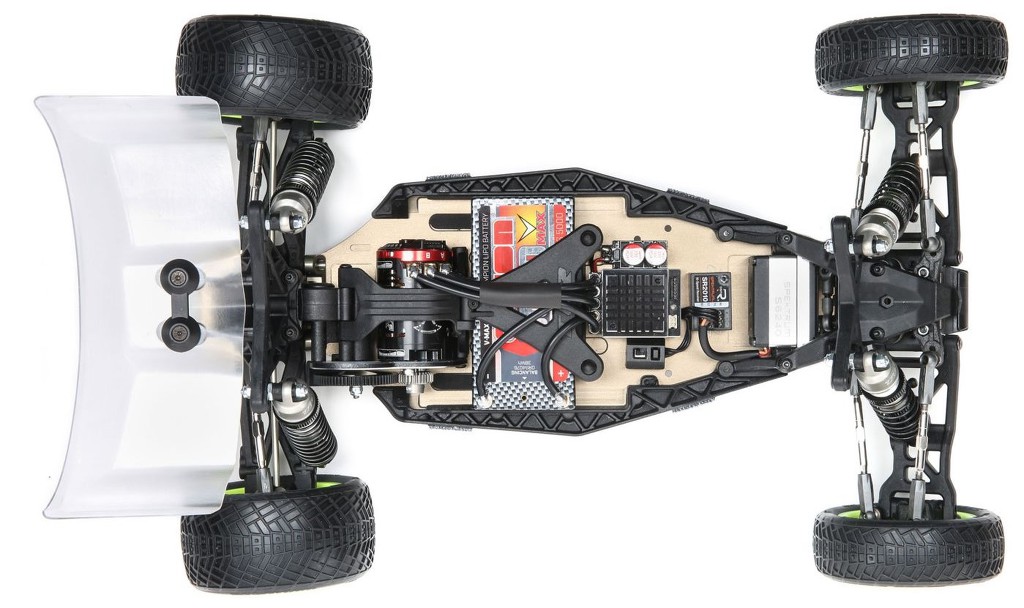

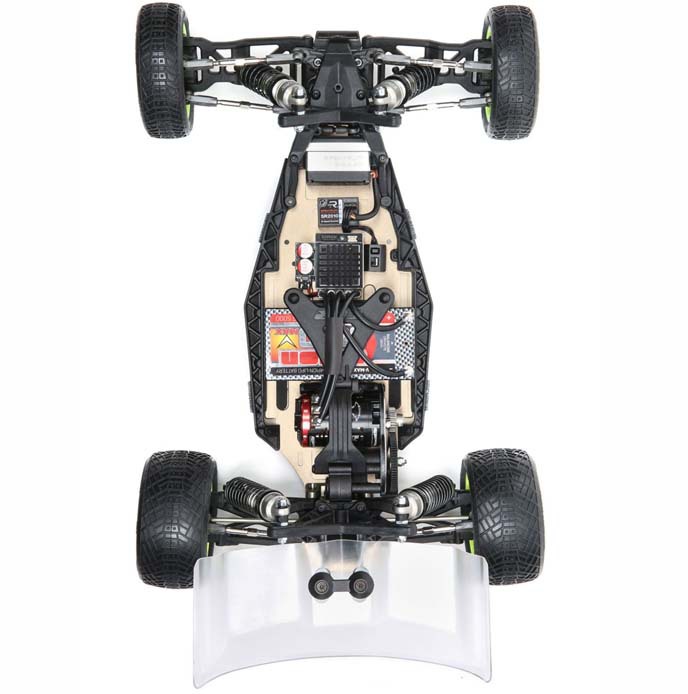

Laydown Configuration
The 3-gear laydown transmission moves the motor forward by 20mm+ to a central motor location, providing a chassis that drives much flatter, more consistent and corners quicker-a crucial advantage in the 17.5 spec buggy race class.
Lightweight Drivetrain
To maximize the top speed and performance of a stock motor, the drive train has been lightened with a Direct Drive System including a shortened top shaft, narrower idler and diff gears, aluminum diff hubs with composite outdrives and aluminum CVA driveshafts.

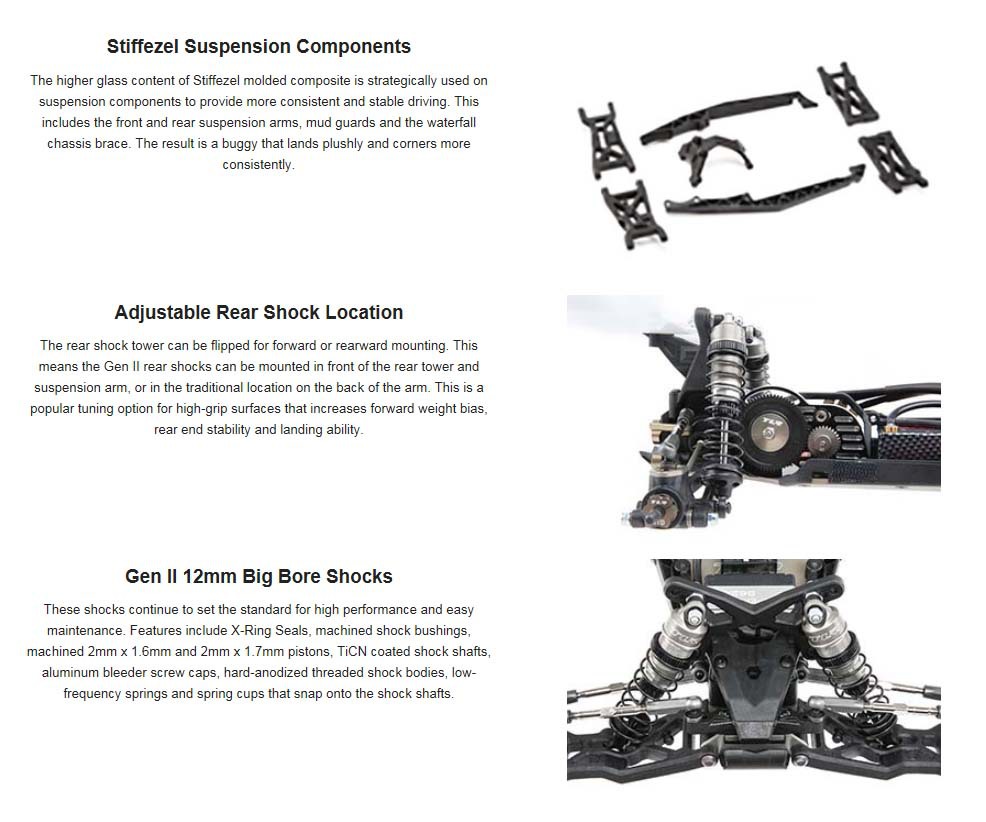

Stiffezel Suspension Components
The higher glass content of Stiffezel molded composite is strategically used on suspension components to provide more consistent and stable driving. This includes the front and rear suspension arms, mud guards and the waterfall chassis brace. The result is a buggy that lands plushly and corners more consistently.
Adjustable Rear Shock Location
The rear shock tower can be flipped for forward or rearward mounting. This means the Gen II rear shocks can be mounted in front of the rear tower and suspension arm, or in the traditional location on the back of the arm. This is a popular tuning option for high-grip surfaces that increases forward weight bias, rear end stability and landing ability.
Gen II 12mm Big Bore Shocks
These shocks continue to set the standard for high performance and easy maintenance. Features include X-Ring Seals, machined shock bushings, machined 2mm x 1.6mm and 2mm x 1.7mm pistons, TiCN coated shock shafts, aluminum bleeder screw caps, hard-anodized threaded shock bodies, low-frequency springs and spring cups that snap onto the shock shafts.

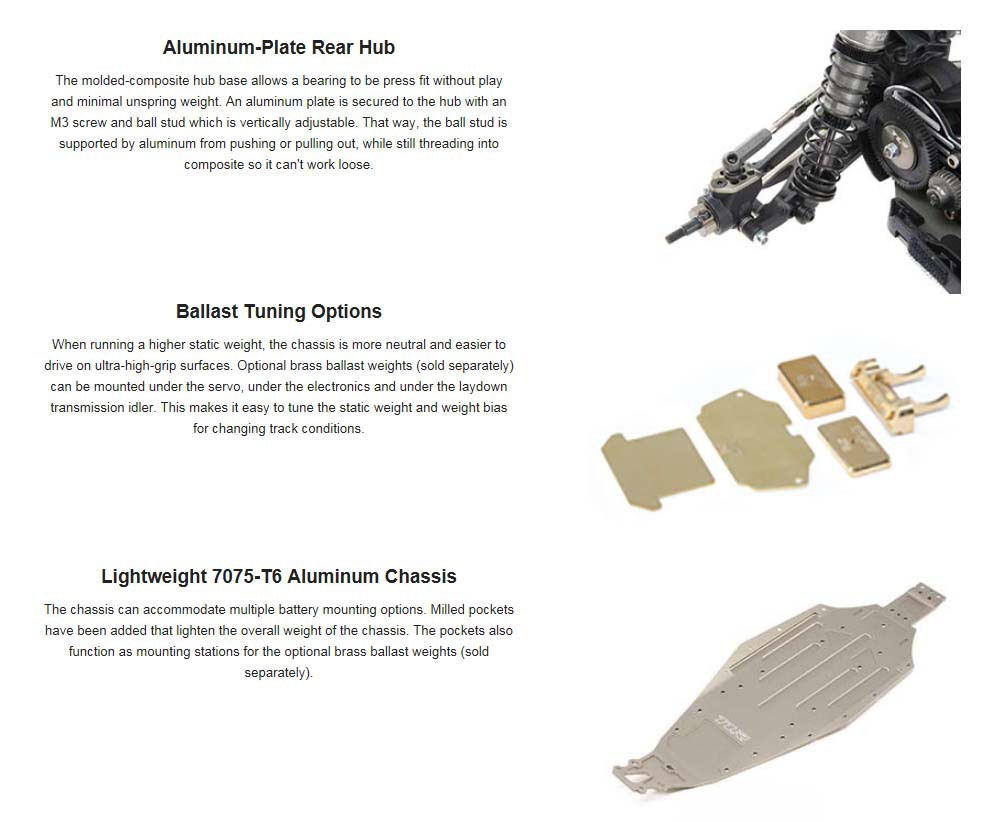

Aluminum-Plate Rear Hub
The molded-composite hub base allows a bearing to be press fit without play and minimal unspring weight. An aluminum plate is secured to the hub with an M3 screw and ball stud which is vertically adjustable. That way, the ball stud is supported by aluminum from pushing or pulling out, while still threading into composite so it can't work loose.
Ballast Tuning Options
When running a higher static weight, the chassis is more neutral and easier to drive on ultra-high-grip surfaces. Optional brass ballast weights (sold separately) can be mounted under the servo, under the electronics and under the laydown transmission idler. This makes it easy to tune the static weight and weight bias for changing track conditions.

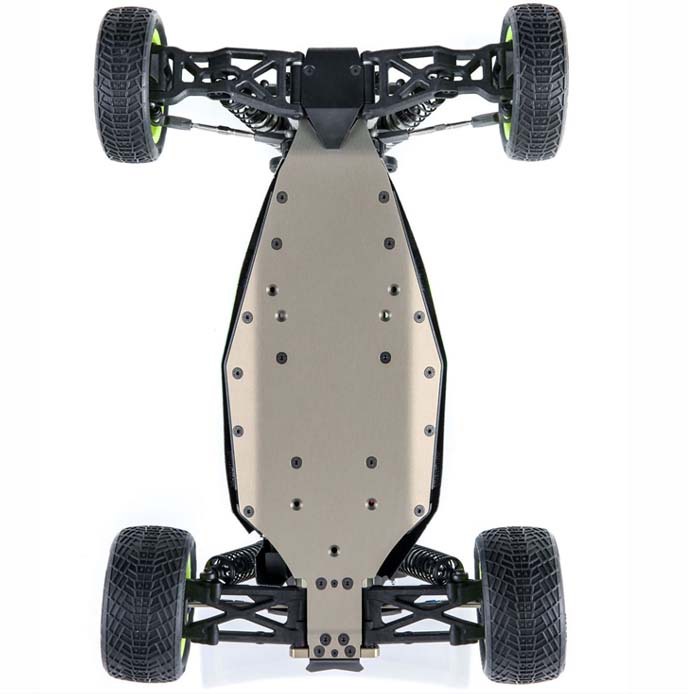

Lightweight 7075-T6 Aluminum Chassis
The chassis can accommodate multiple battery mounting options. Milled pockets have been added that lighten the overall weight of the chassis. The pockets also function as mounting stations for the optional brass ballast weights (sold separately).

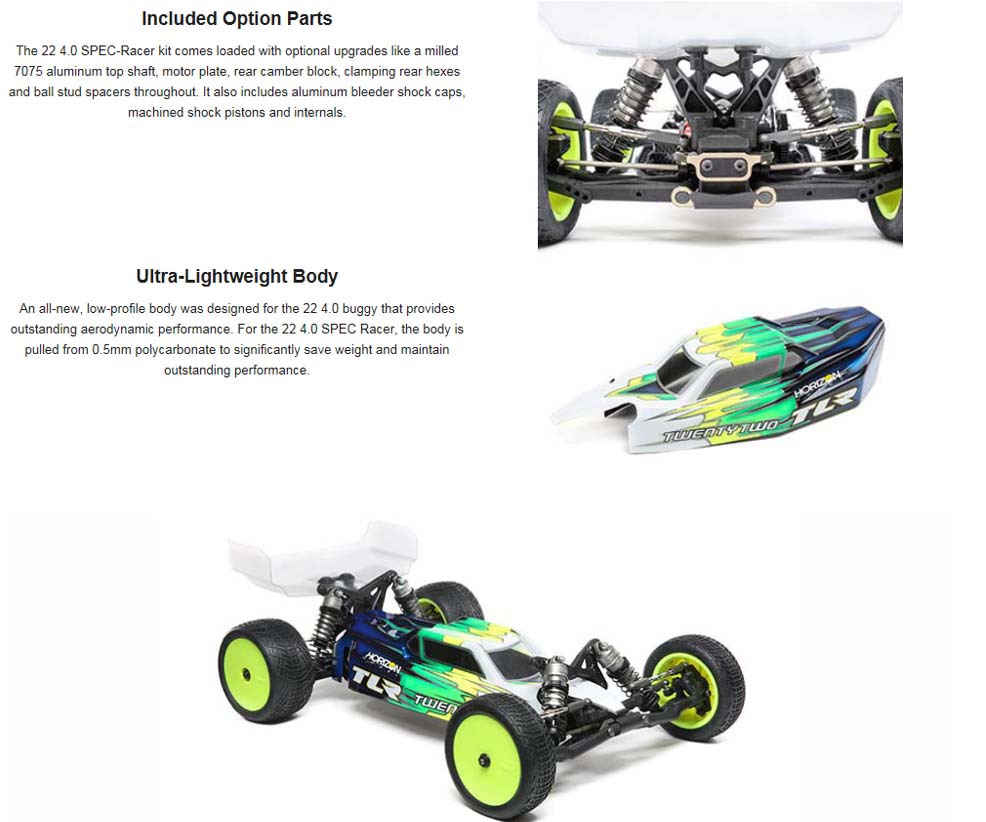

Included Option Parts
The 22 4.0 SPEC-Racer kit comes loaded with optional upgrades like a milled 7075 aluminum top shaft, motor plate, rear camber block, clamping rear hexes and ball stud spacers throughout. It also includes aluminum bleeder shock caps, machined shock pistons and internals.
Ultra-Lightweight Body
An all-new, low-profile body was designed for the 22 4.0 buggy that provides outstanding aerodynamic performance. For the 22 4.0 SPEC Racer, the body is pulled from 0.5mm polycarbonate to significantly save weight and maintain outstanding performance.
분해도 /upload/product_manual/1843_m2.pdf
