[[MALAYSIA]]PORT KLANG (NORTH PORT) INFORMATION

[도마사]

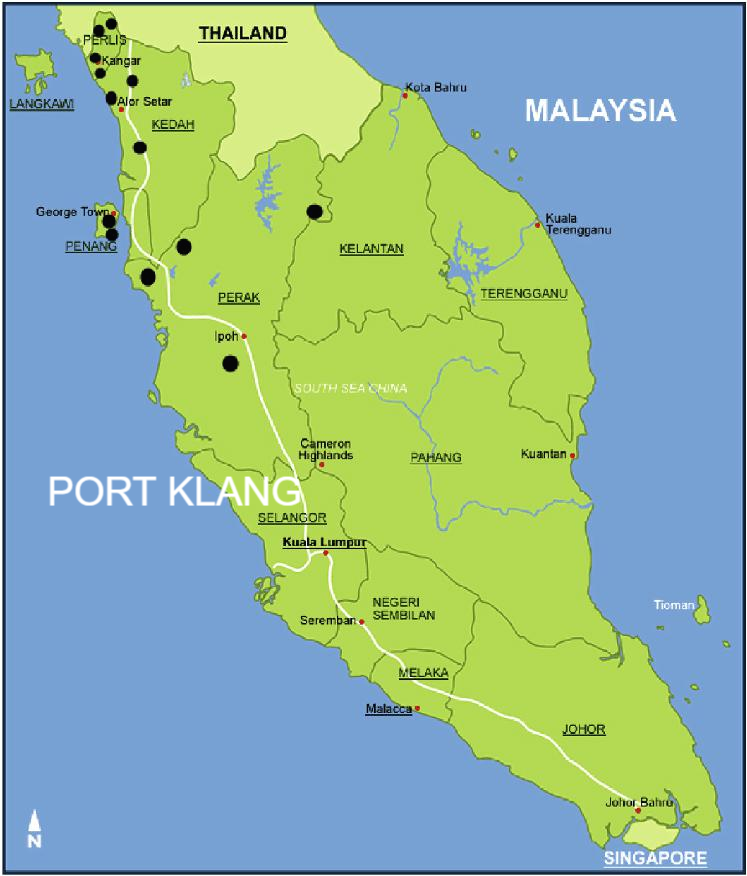

PORT KELANG IS A NEAREST PORT OF KUALA LUMPUR. THERE ARE 3 MAIN TERMINAL. NORTH / SOUTH / WEST.

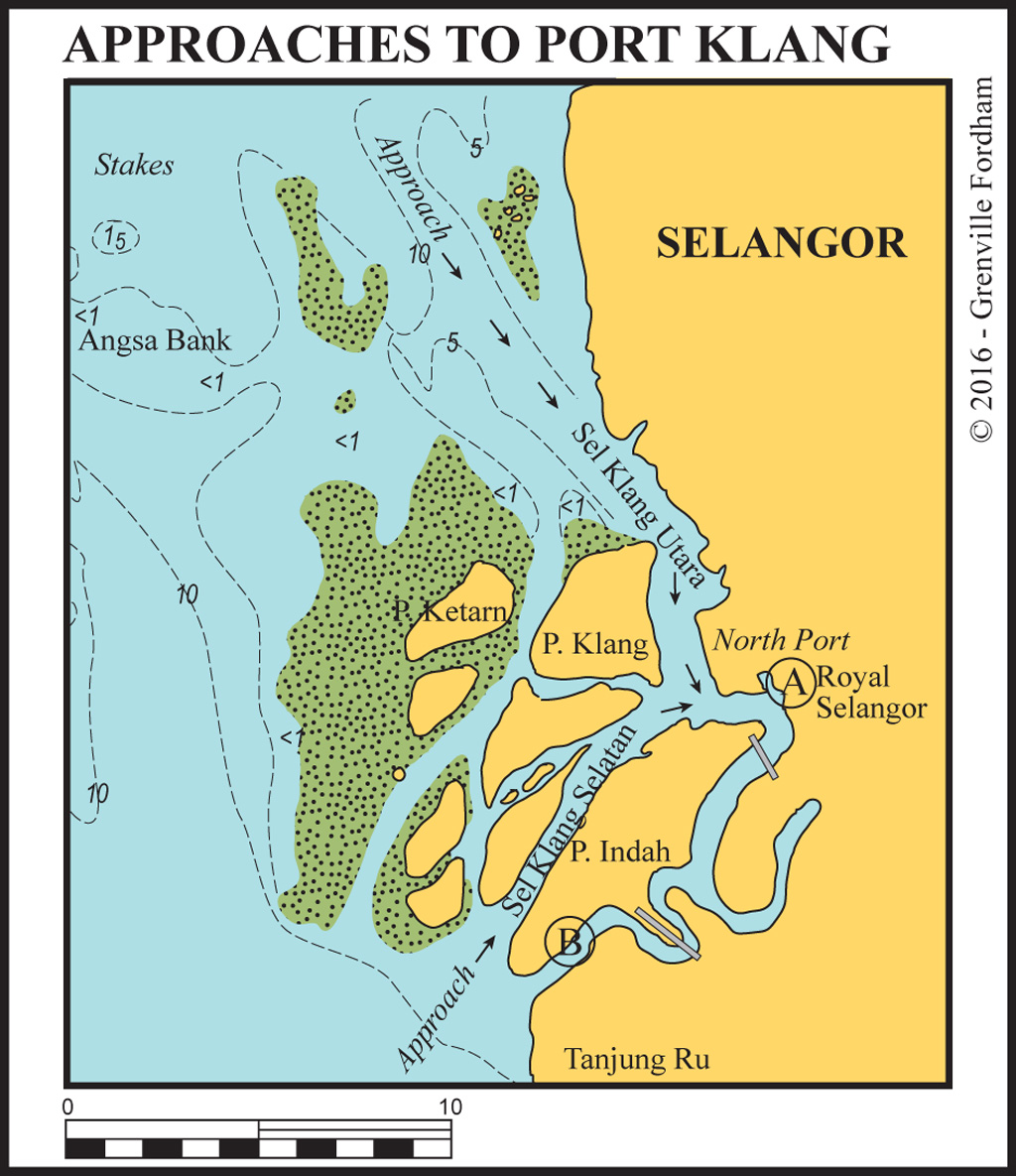

    SEL KLANG SELATAN : SOUTH CHANNEL APPROACH (Pintu Gedong)

    SEL KLANF UTARA    : NORTH CHANNEL APPROACH (Pulau Angsa)

Approcahing channel(restriction)

    South pilot station(Pintu Gedong) 15.00 meters(BCD)

    North Pilot station(Pulau Angsa)  11.50 meters(BCD)

    Inner anchorage Max 10.00 meters

No restriction on LOA/BEAM/AIR DRAFT

Available berth (restriction) - Bulk / General Cargo Berth ONLY

North Port Wharf 15  -   LOA 243.8 meters/ depth alongside 11.50 meters(BCD)

                           Displacement 60,000mt(General cargo berth)

                           Loa 213 meters/depth alongside 12.00 meters(BCD)

                           Displacement 60,000mt(Container & general cargo berth)

North Port Wharf 21 - (24 / 25)

1. Location Of Berth - Lat 03 Deg 02 Min N Long 101 Deg 21 Min E

2. Distance From Pilot Station - 13 Nautical Miles

3. No Of Berths - 2 Berths 400M

4. Maximum Draft (Approach) - South Entrance @ 17.00M At Chart Datum

                                        - North Entrance @ 11.30M At Chart Datum

5. Maximum Draft (Berths) -  W21 - (12.9M)   //  W(24 & 25) -  (10.8M) At Chart Datum

6. LOA/Beam/Air Draft - No Restriction

7. Maximum Displacement - 80,000 Mtons

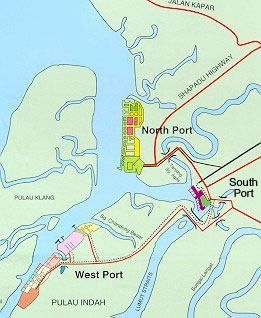

NORTH / SOUTH / WEST PORT

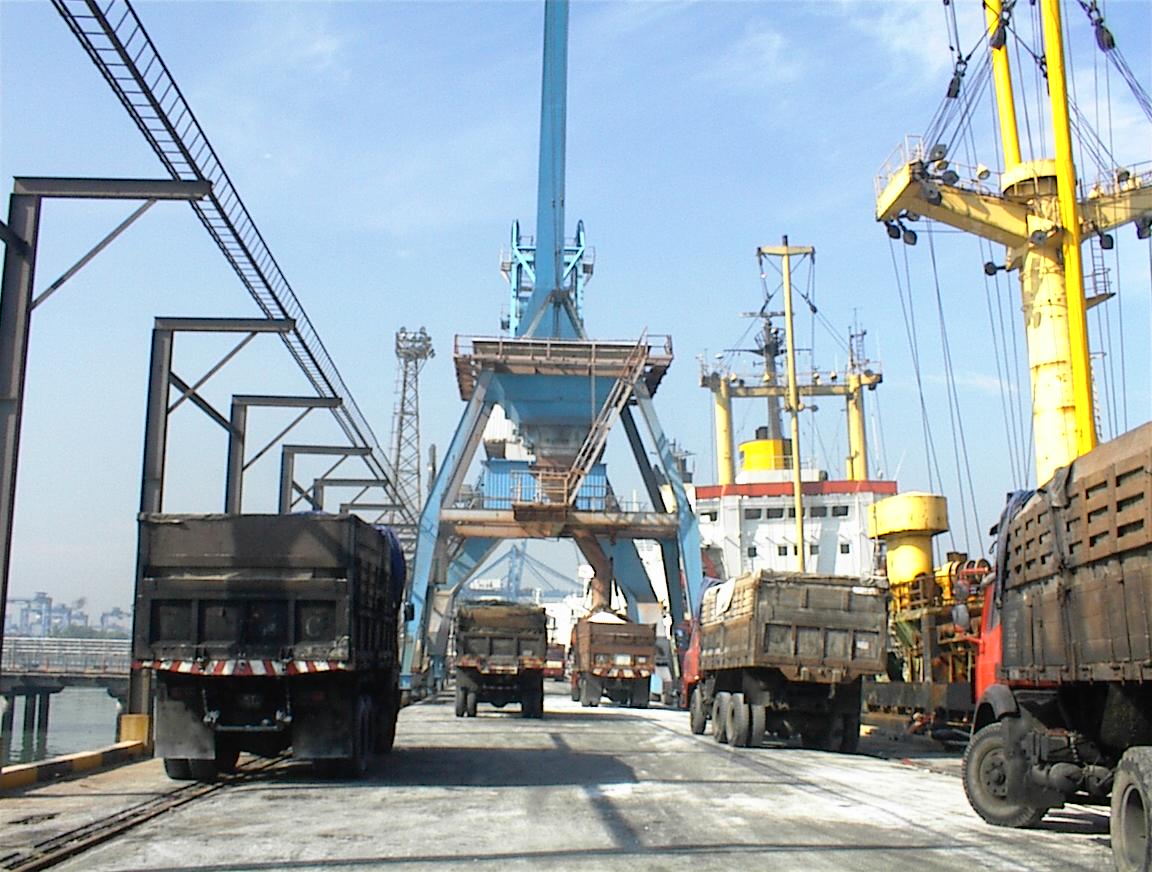

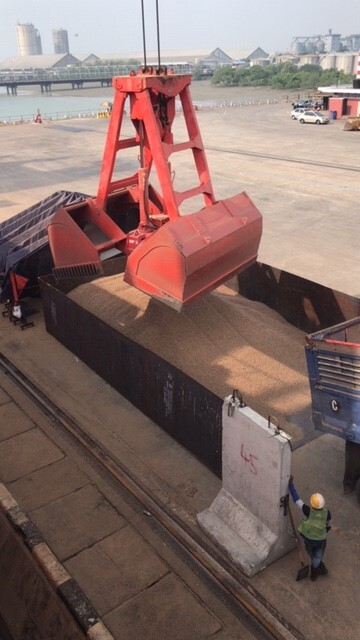

* North Port Wharf No. 14 (To load P.K.E)

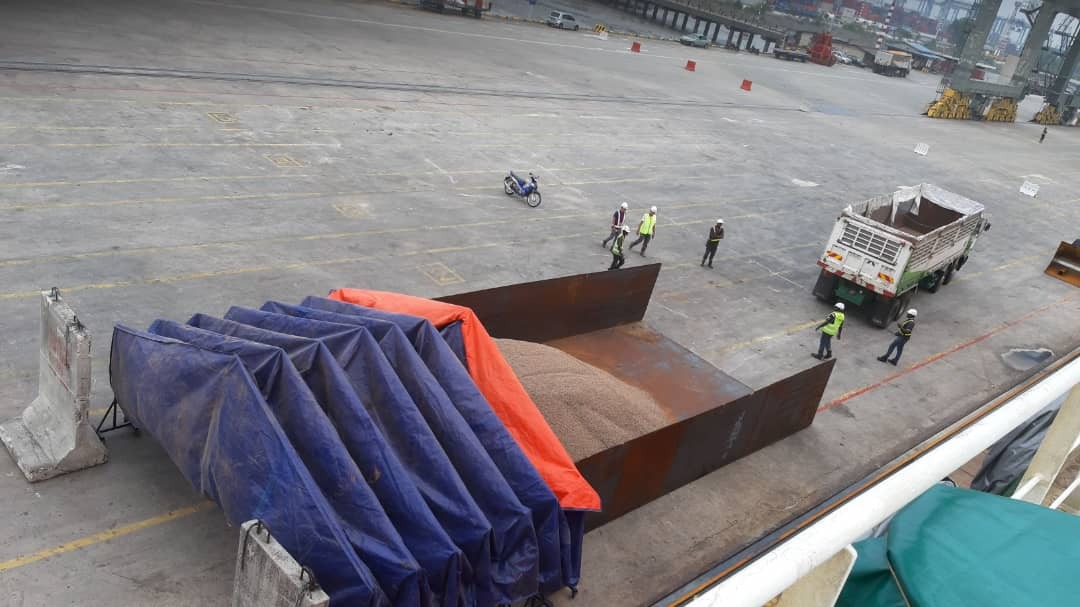

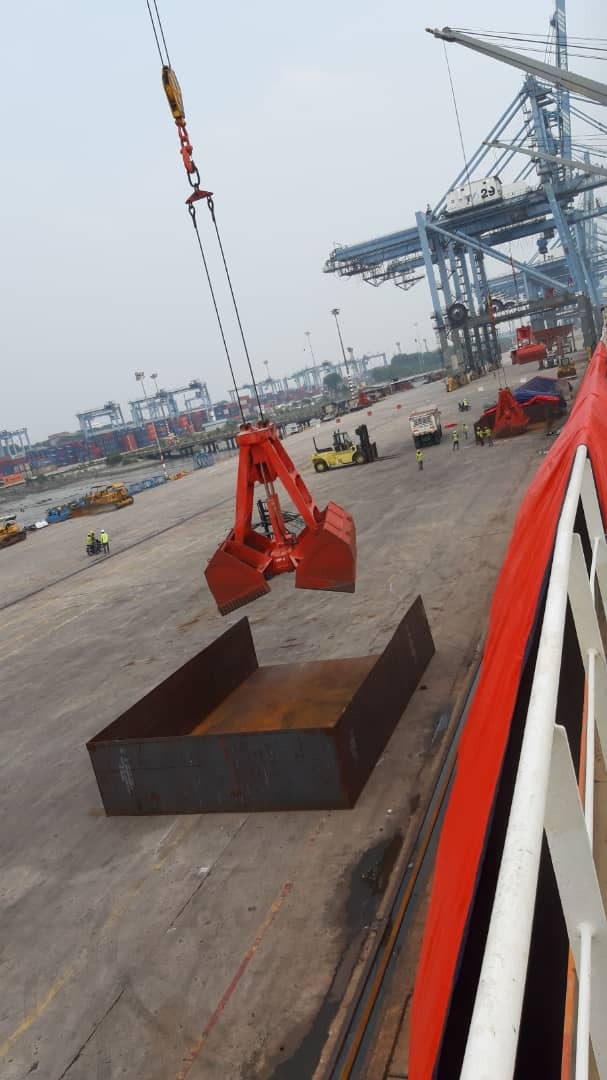

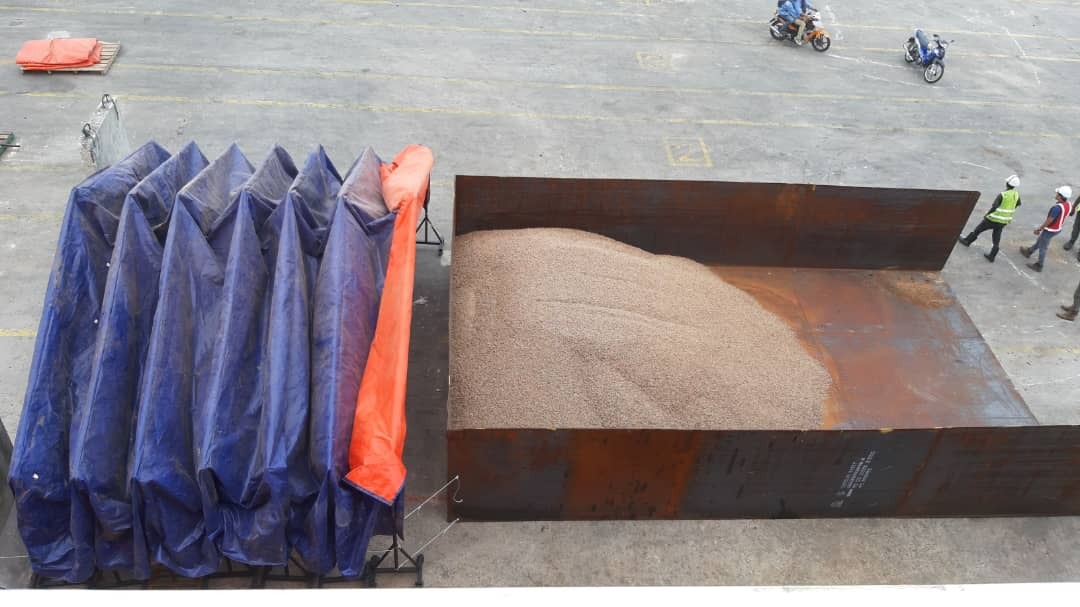

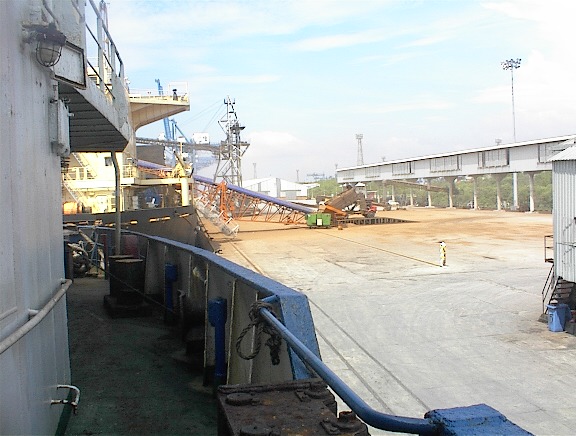

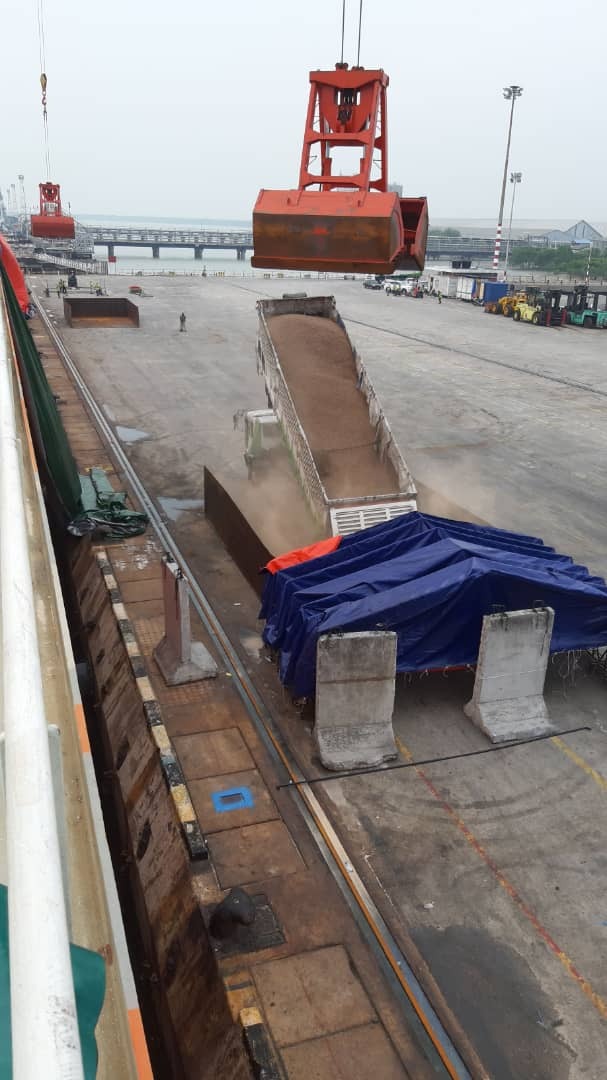

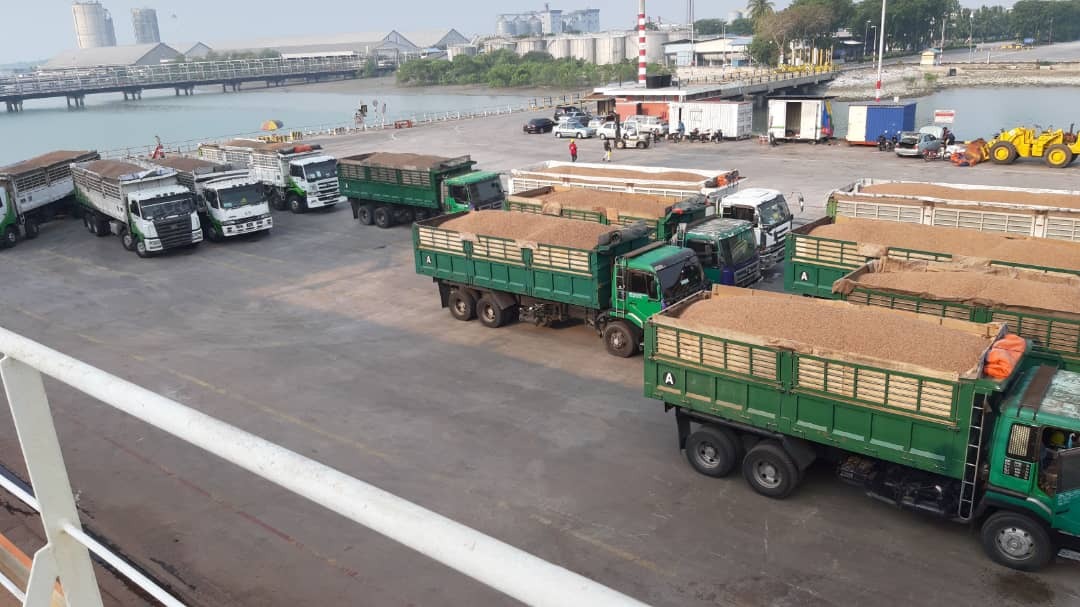

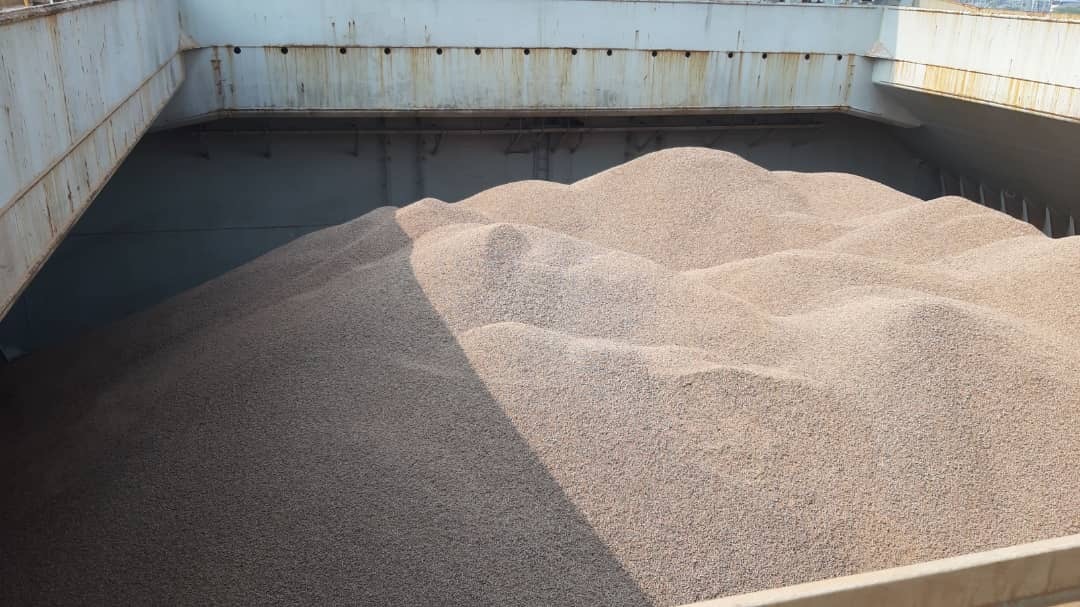

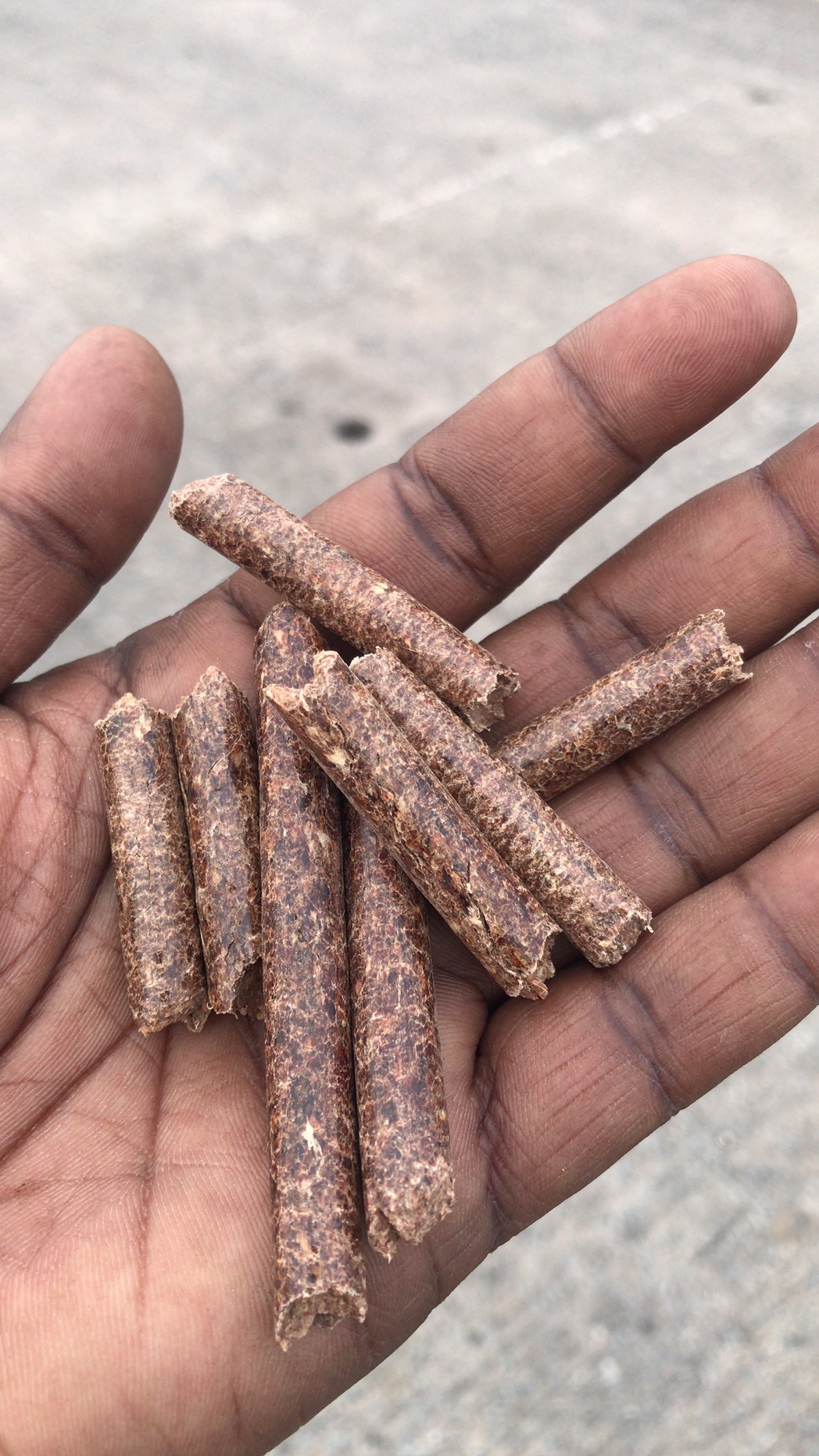

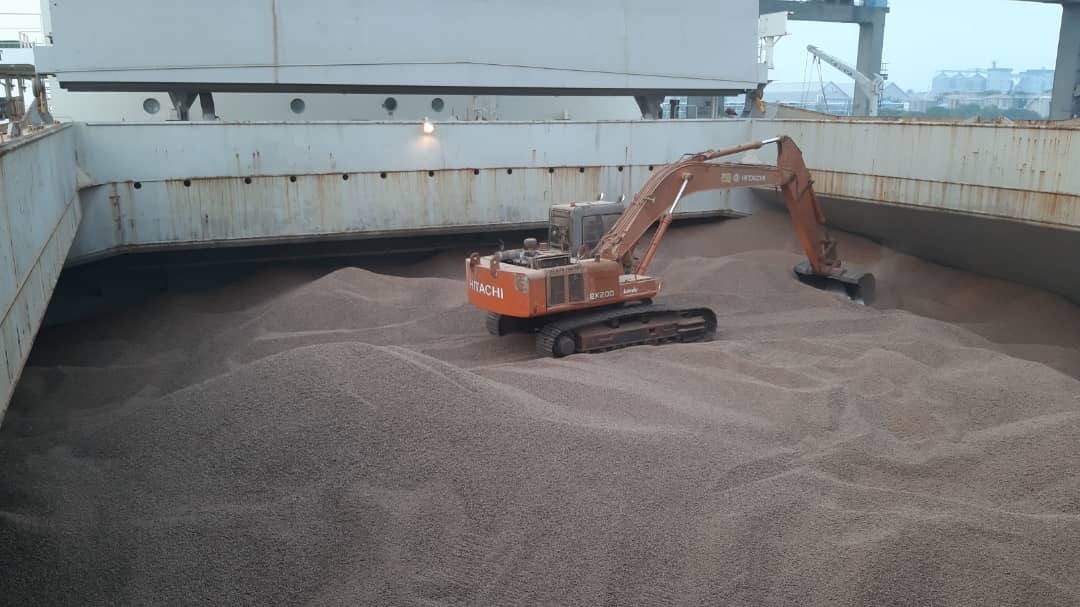

* North Port Wharf No. 21 (To Load Wood Pellet in Bulk)

 Loading Rate is about 80mt Per Hour Per Gang..  Maximum gang depend on Ship'sStowage.

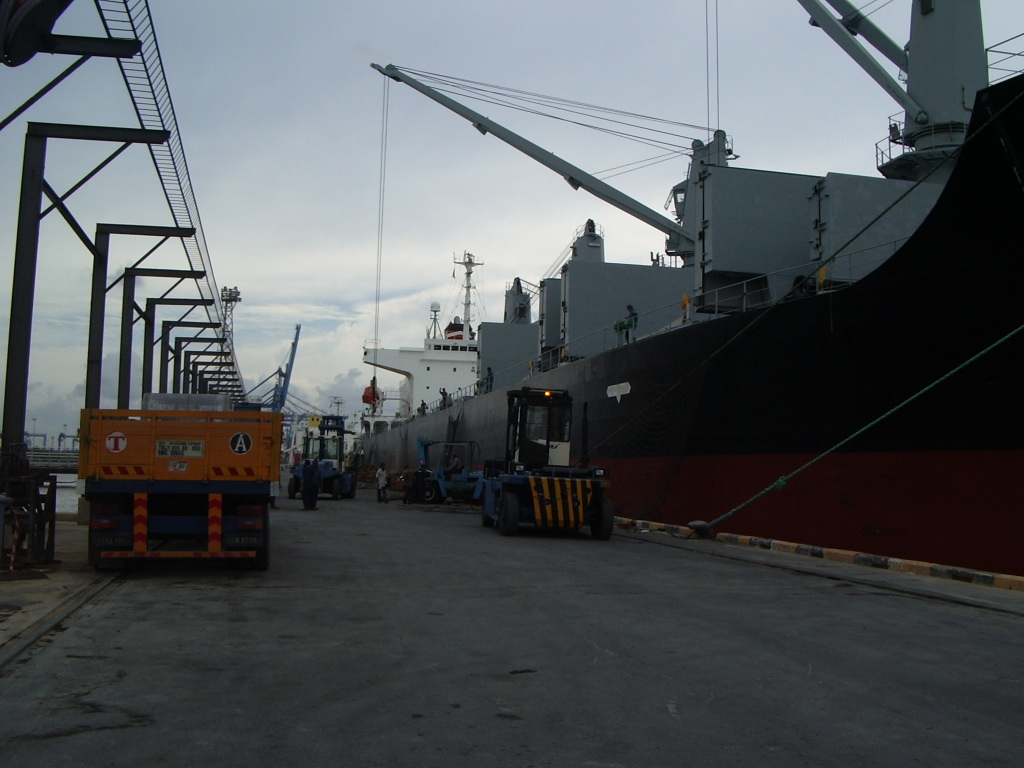

* North Port Wharf No. 15 (To Load/Disch General cargo)

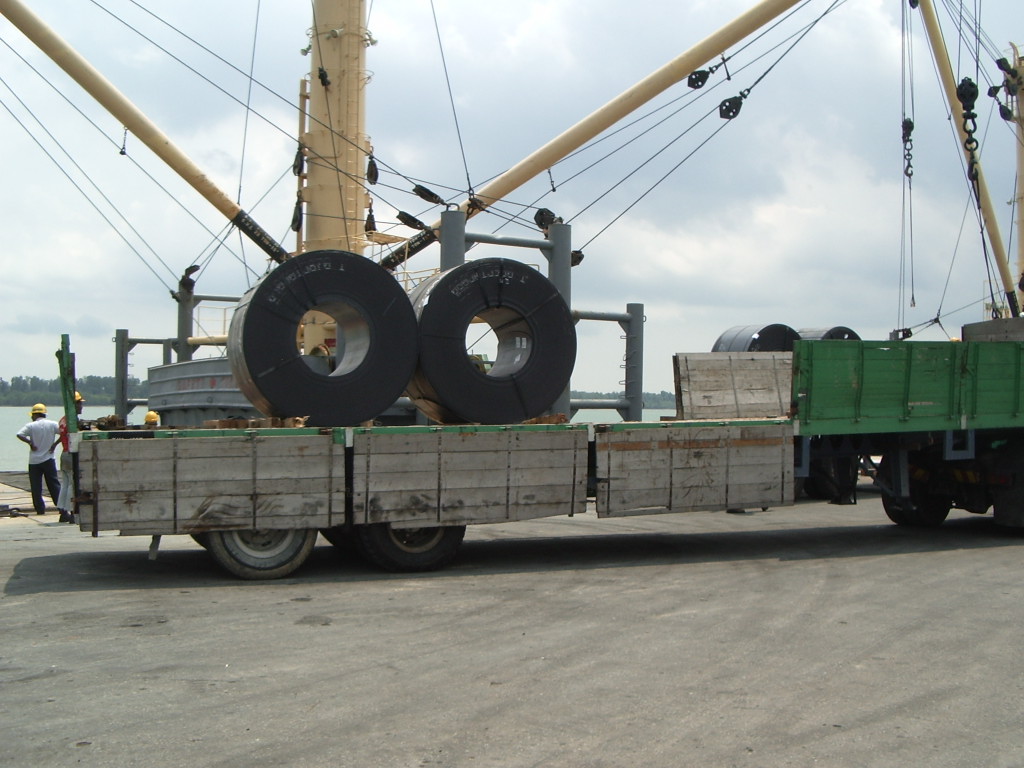

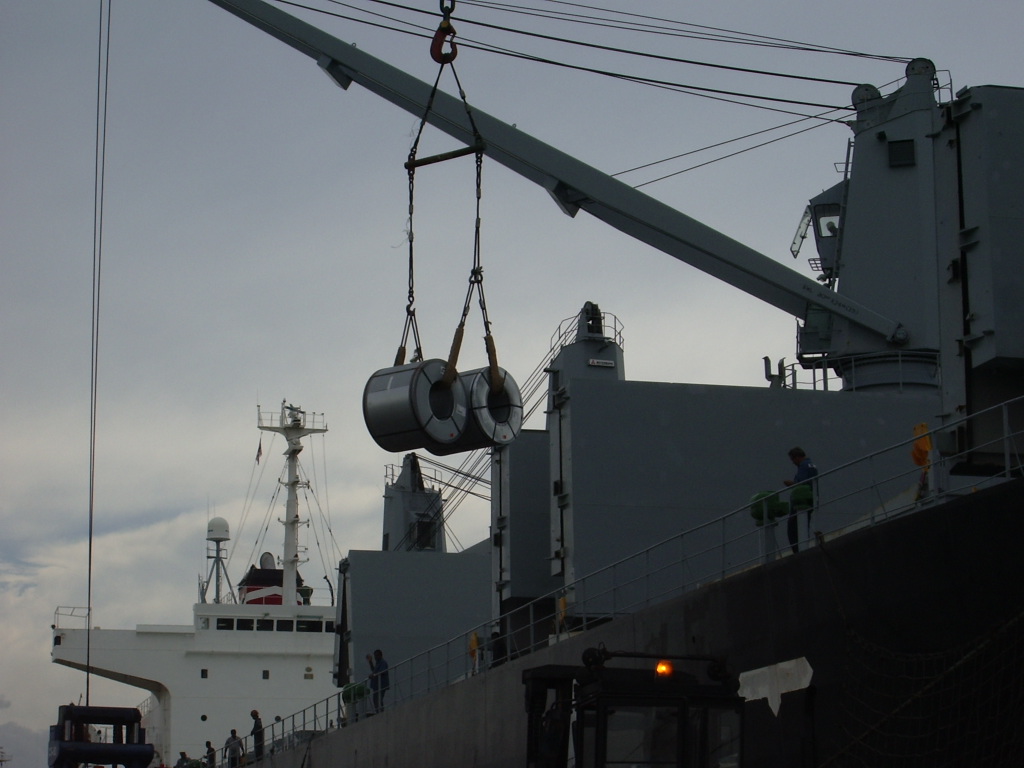

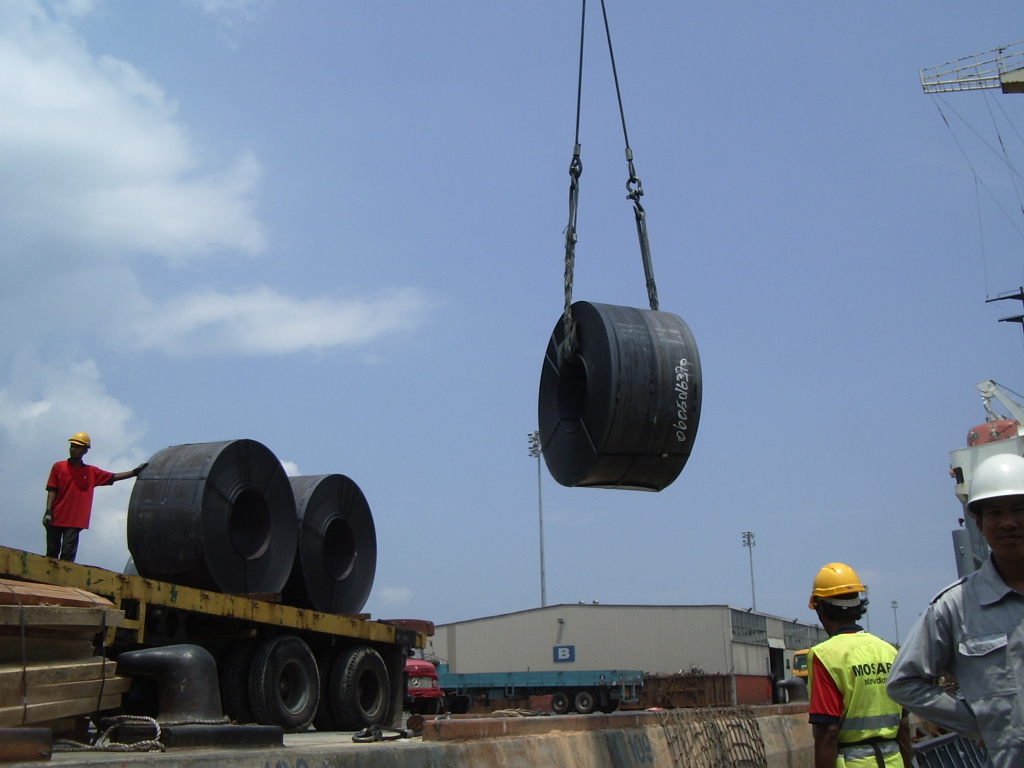

Load Steel Coil

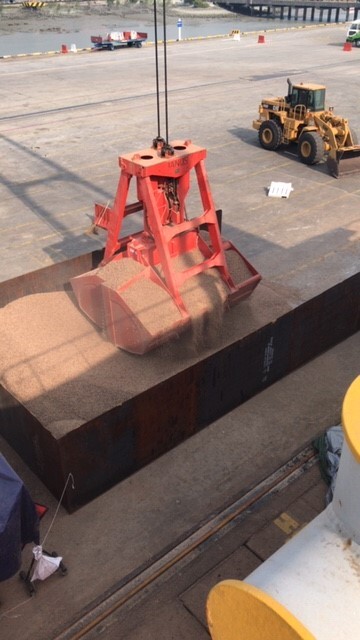

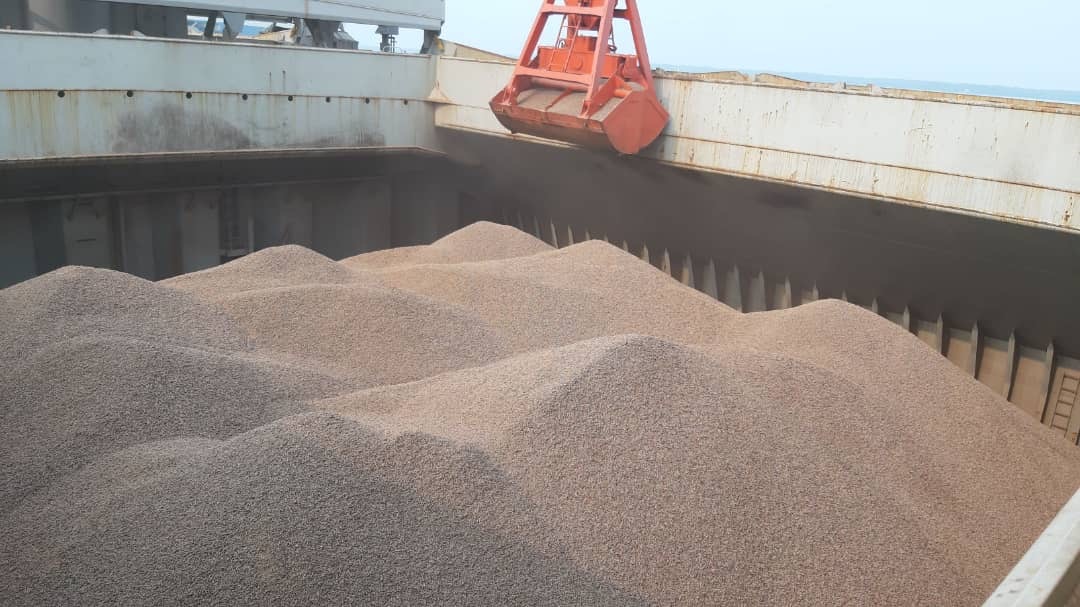

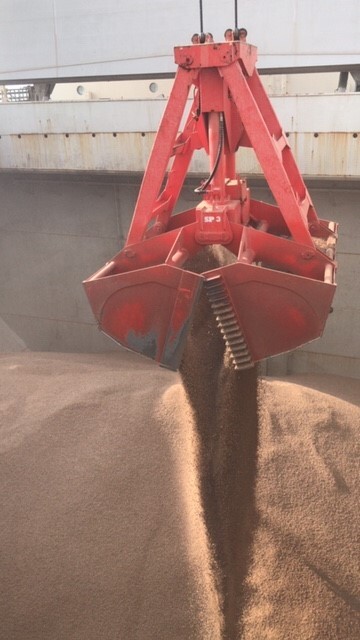

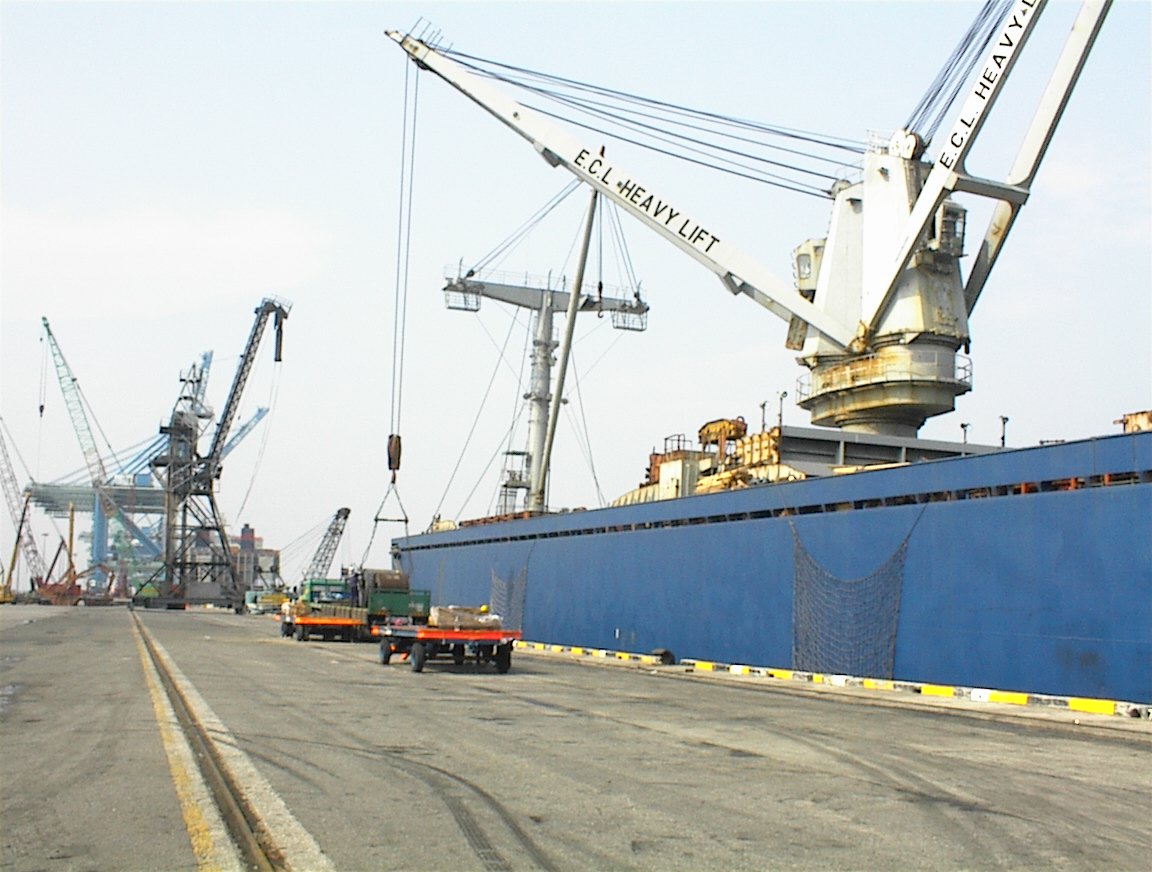

* North Port Wharf No. 24 / 25 (Bulk cargo / Bag cargo / Heavy cargo / General)

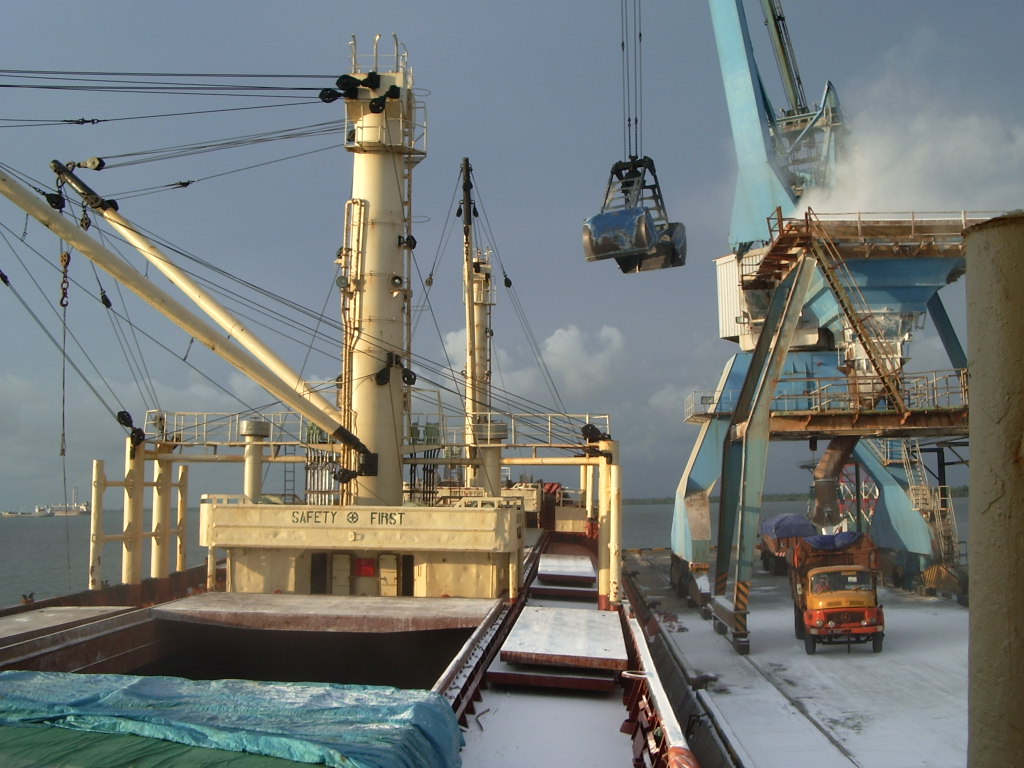

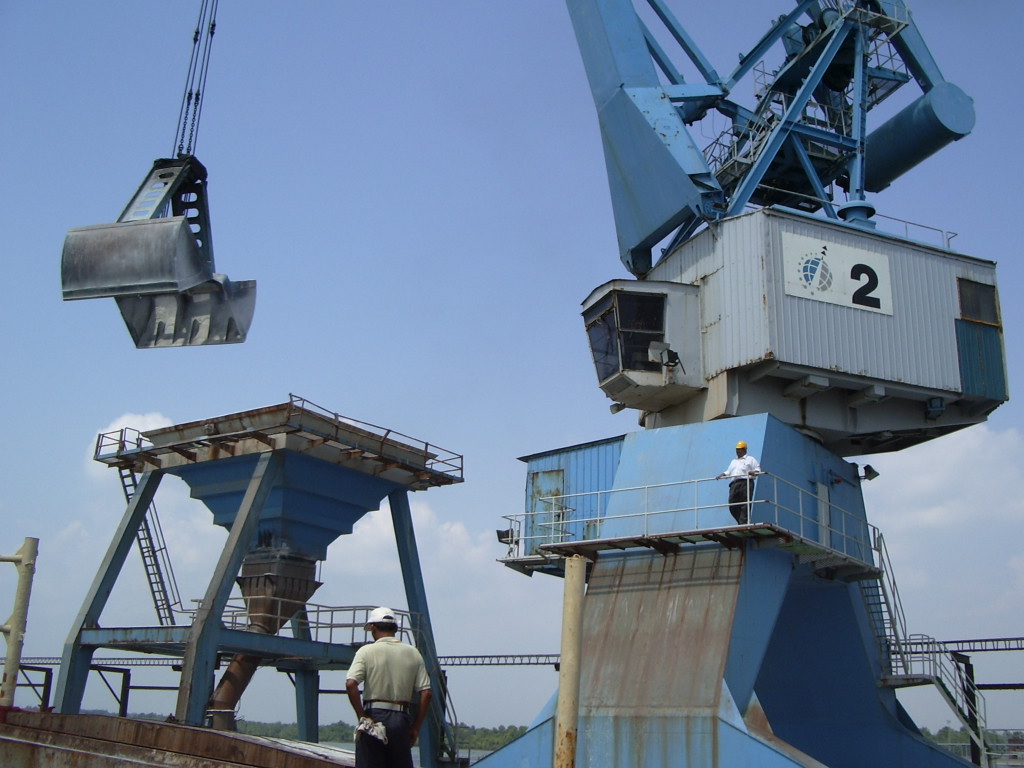

To disch Fertilizer by Gantry crane

To disch Steel Coil

To disch Steel Coil

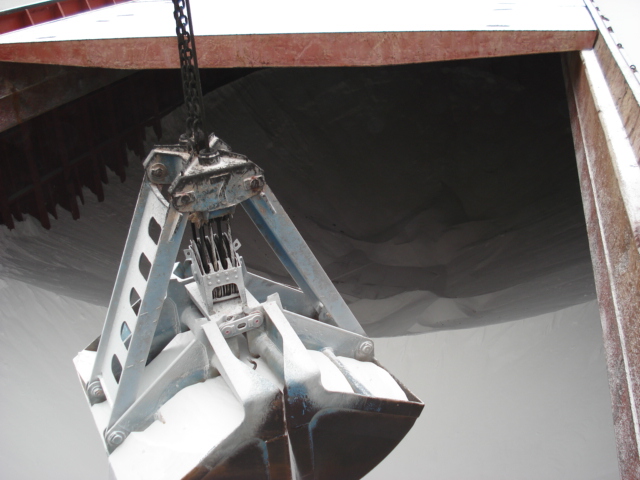

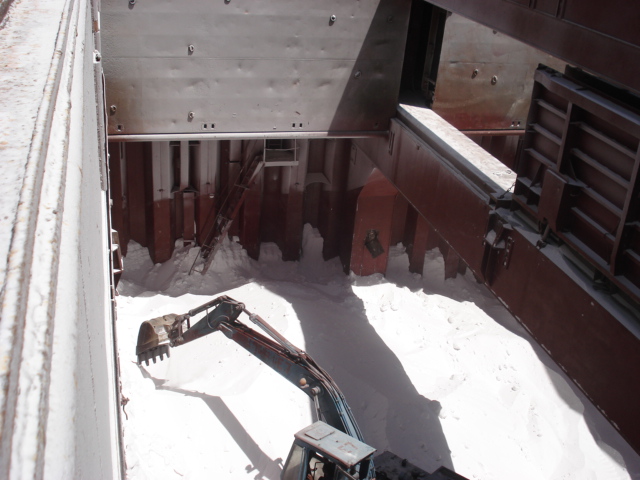

To disch Soda Ash

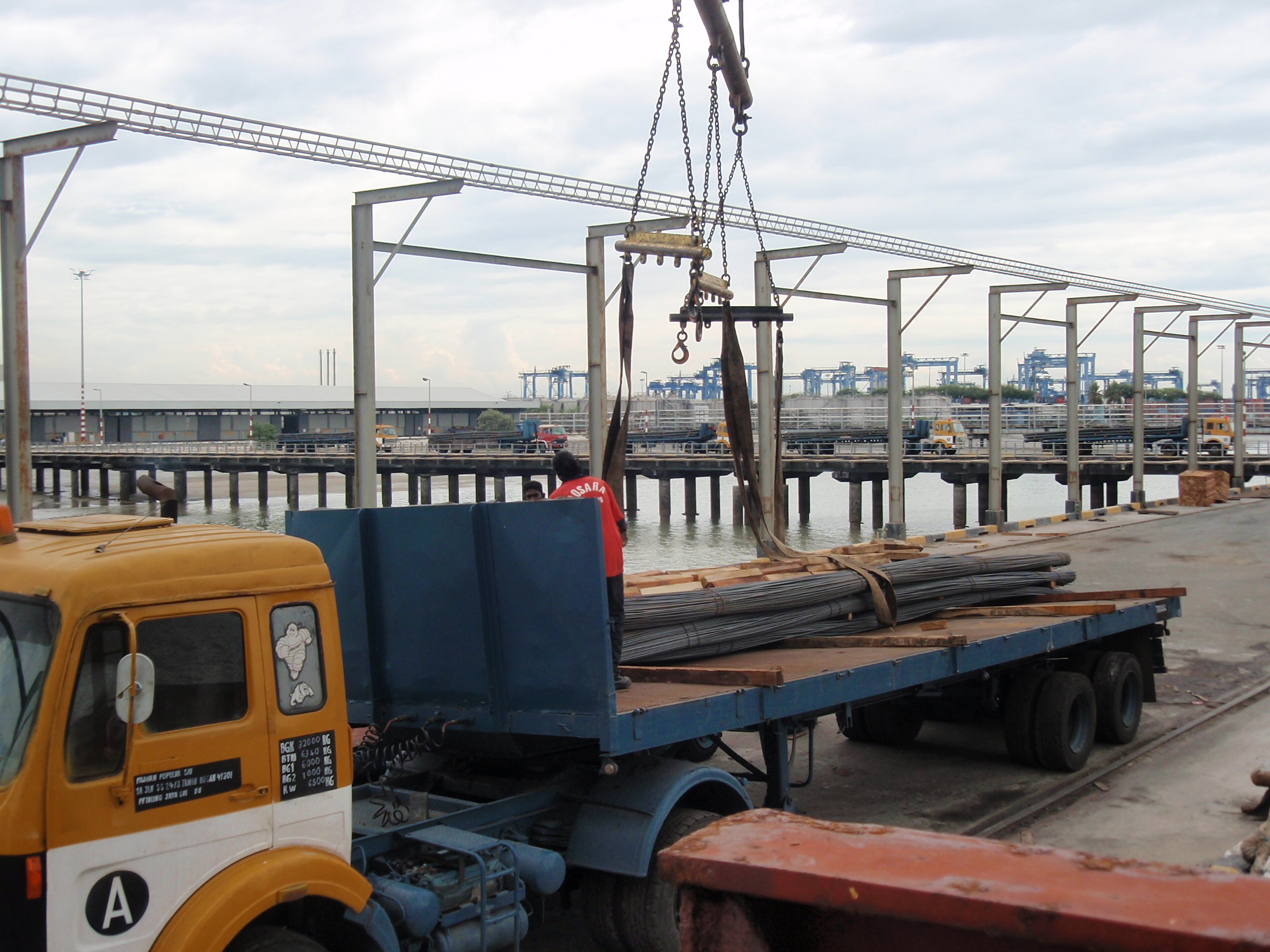

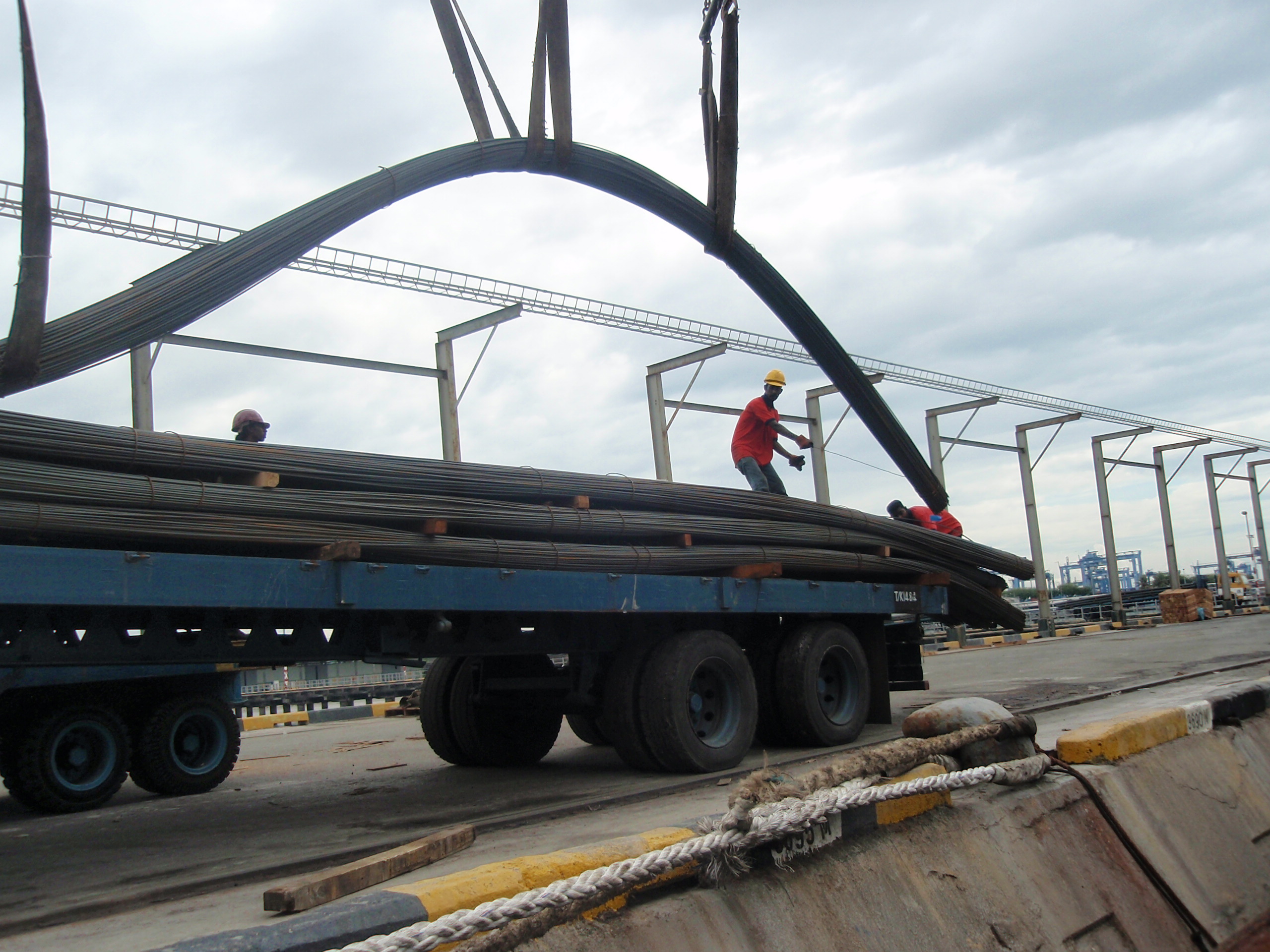

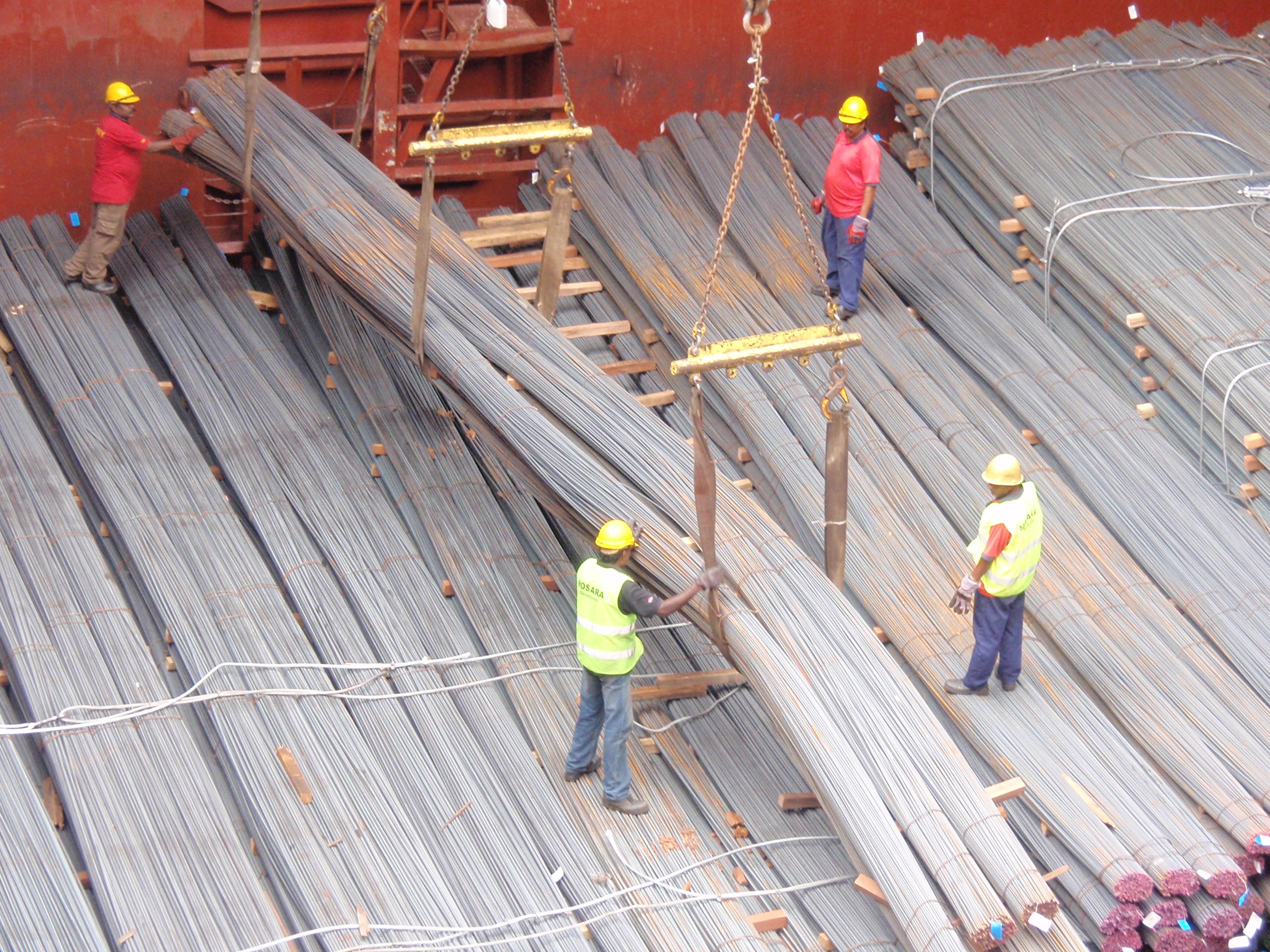

To load Debar

To load Debar

To load Debar

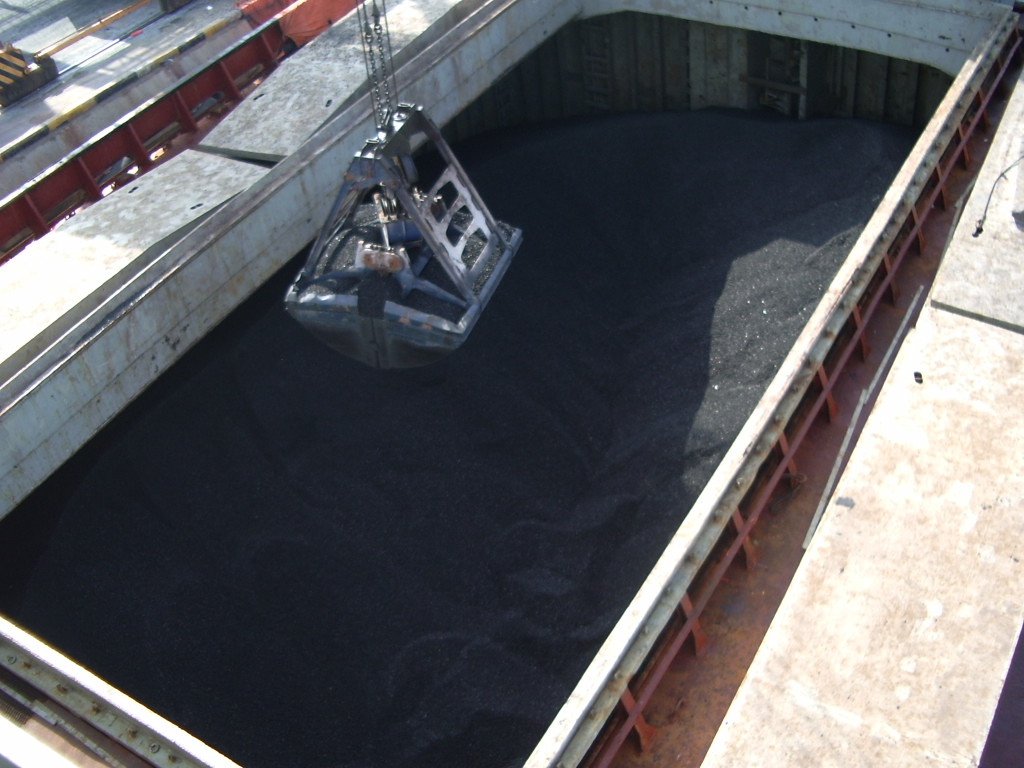

To disch Coal

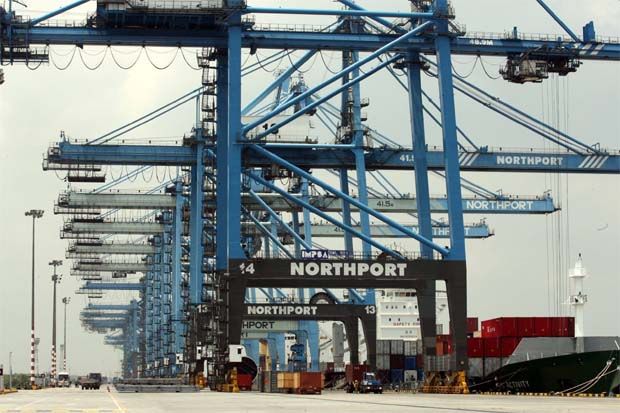

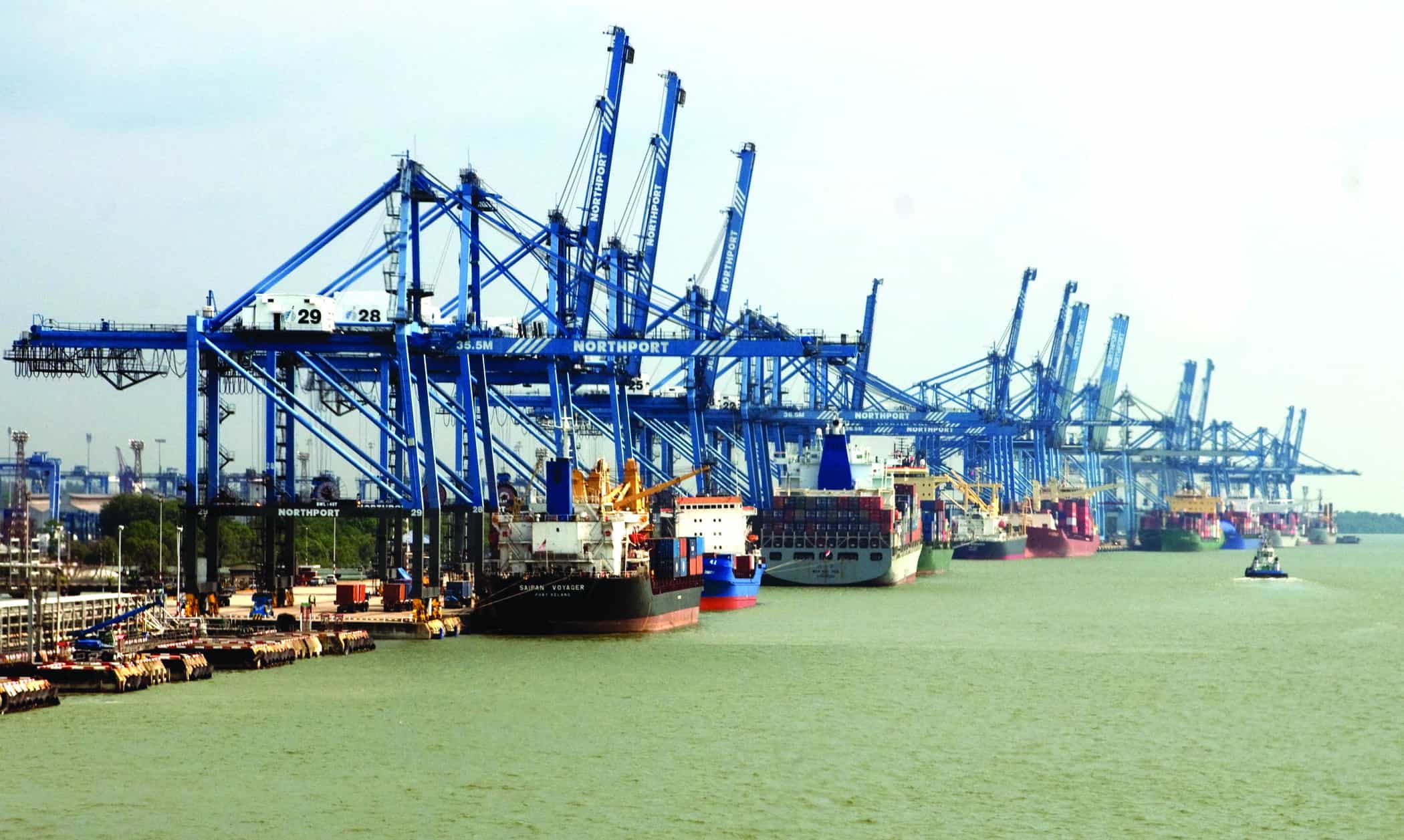

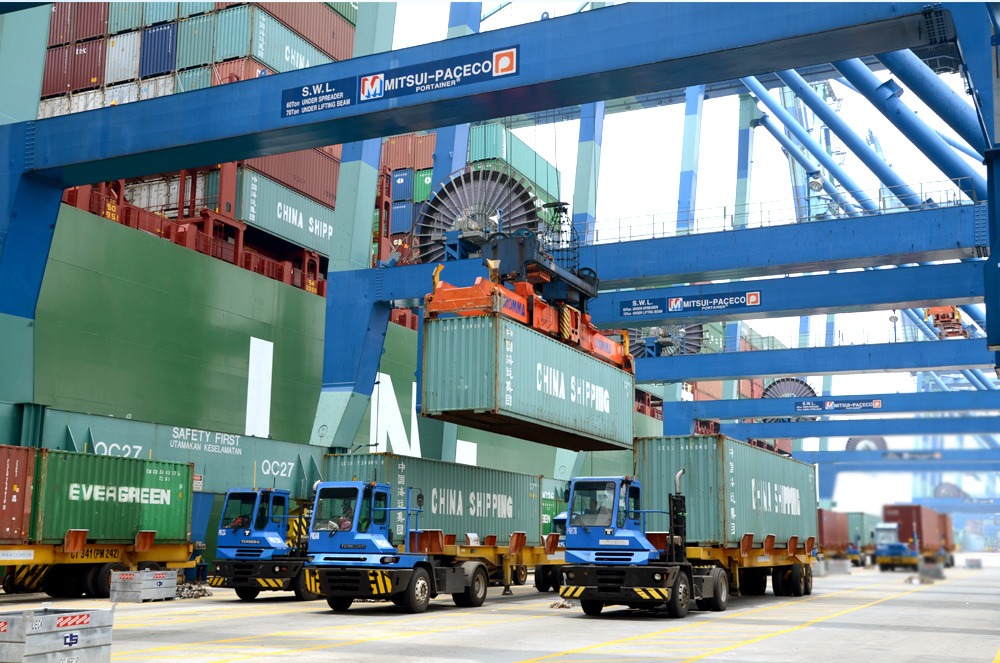

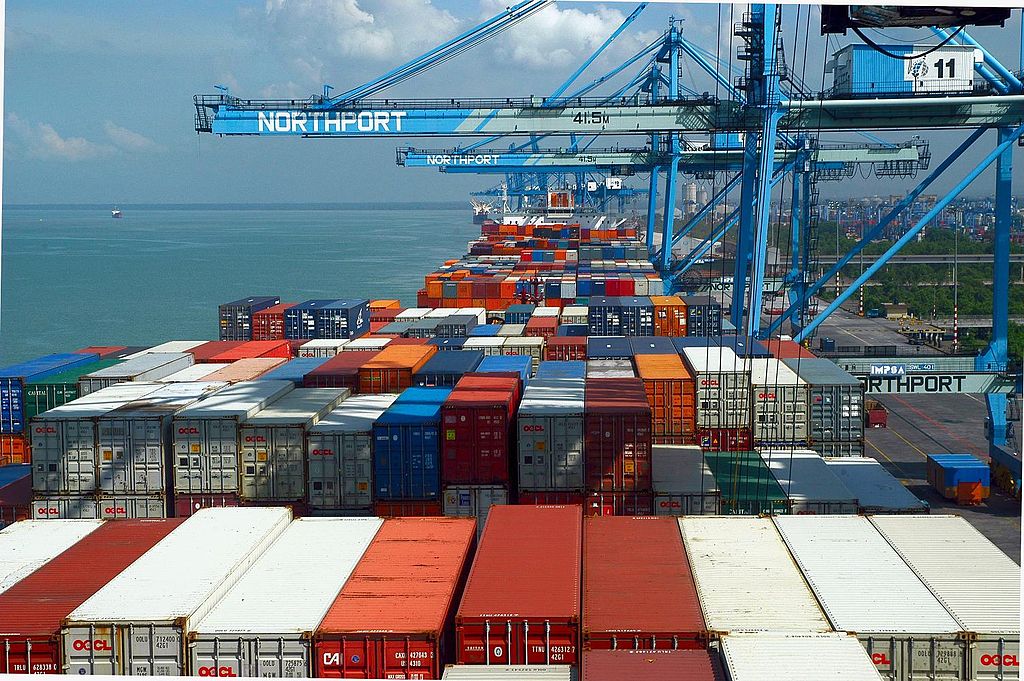

* CT1, CT2 (Container Terminal)
