BUTTERWORTH - BULK CARGO TERMINAL (BCT) AT PERAI
(OPPOSIT OF PENANG ISALND)

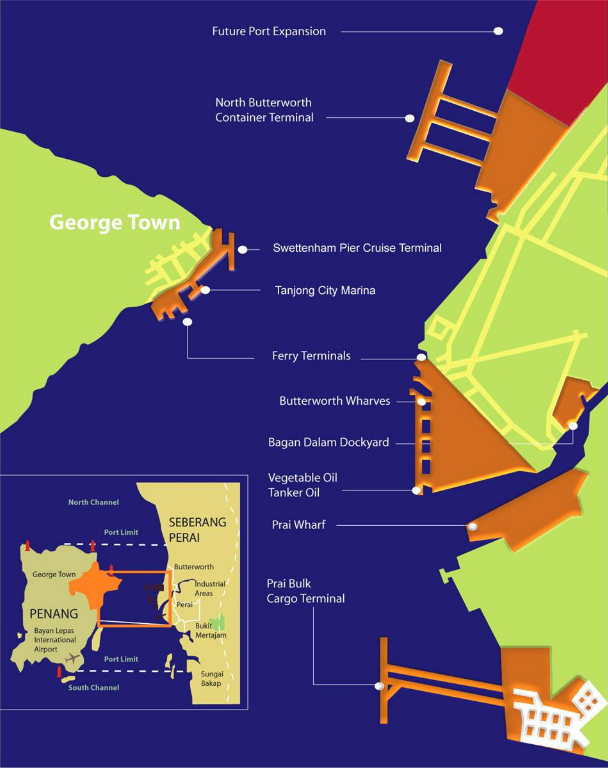

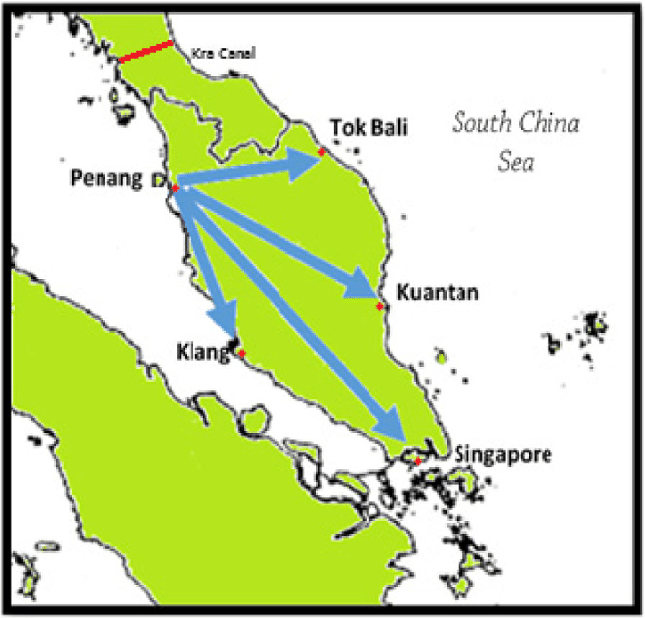

(1) BUTTERWORTH PORT MAP & LOCATION (BCT)
(2) BCT PORT INFORMATION
BERTH ARRANGEMENT AT BCT / BULK CARGO TERMINAL BERTH IS ALLOCATED ON FIRST COME FIRST BERTH BASIS AND VSLS WHICH COMPLIES TO THE SYSTEM (FINAL ADVANCE NOTIFICATION) PORT TO BE NOTIFIED 7 DAYS BEFORE ARRVL BERTH AND DISCHARGING POINT
| BERTH NO | LOA | DRAFT | DSPLACEMENT | DWT |
| 1 | 198 M | 11.0 M | 66,667 T | 50,000 T |
| 2 | 140 M | 11.0 M | 33,000 T | 25,000 T |
| 3 | 250 M | 11.0 M | 66,667 T | 50,000 T |
| Overall length 588mtrs (berth useable 500mtrs due to berth 3 close to dg berth) All gearless vessels have to berth at BCT Berth No 1 for using Port Shore Crane) | ||||
| RESTRICTION | 1) Loa above 167m berthing allowed for Portside only fm 1800hrs to 0700hrs during low tide or with senior Pilot’s discretion. 2) No Restriction for unberthing. 3) No Beam restriction. 4) Arrival must not exceed 11.00mtrs,if above will require Senior Pilot approval and also depends on the tidal range 5) Max vessel Loa allowable 230mtrs(panamax size) 6) Limitation of draft at BCT average discharging quantity Maize about 40000mt to 45000mt | |||
| STEVEDORE | 1st Shift 0730 to 1530 Hours 2nd Shift 1530 to 2330 Hours 3rd Shift 2330 to 0730 Hours | |||
PILOT POSITION ENTRANCE TO PENANG VIA NORTH CHANNNEL ONLY
PILOT STATION POSTN LAT 05DEC 35MIN 53SEC NORTH LONG 100DEG 12MIN 27SEC EAST
PLEASE CONTACT PENANG PILOT OFFICE THRU VIA CHANNEL 12 TO CFM YR ETA PILOT STN EVERY 4/3/2/1 HOURS PRIOR ARRVL/UPON ARRVL
PLEASE HOIST IMMIGRATION FLAG 2/5 OR LIGHT RED OVER WHITE DURING DARK HRS/TO COMMUNICATE WITH AGENT
PLEASE USE PENANG RADIO CHANNEL 16. Draft at North Channel Pilot Station entrance - 10.40mtrs ACD PORT OPERATION AND WORKING HOURS
Port operation round the clock including Sunday and Public Holidays.

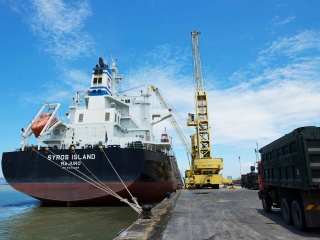

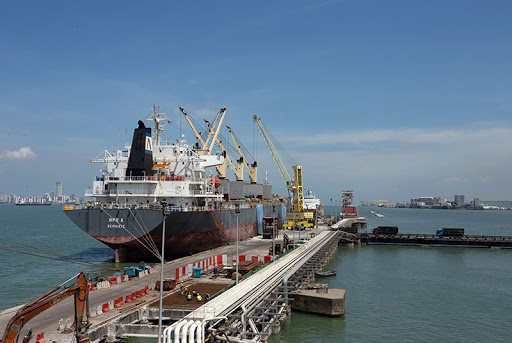

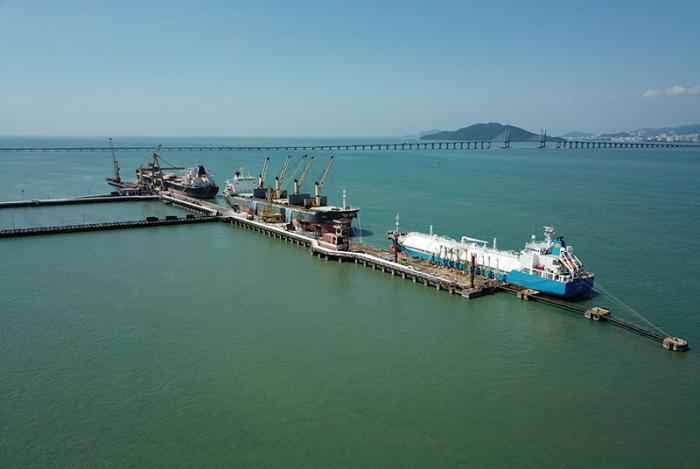

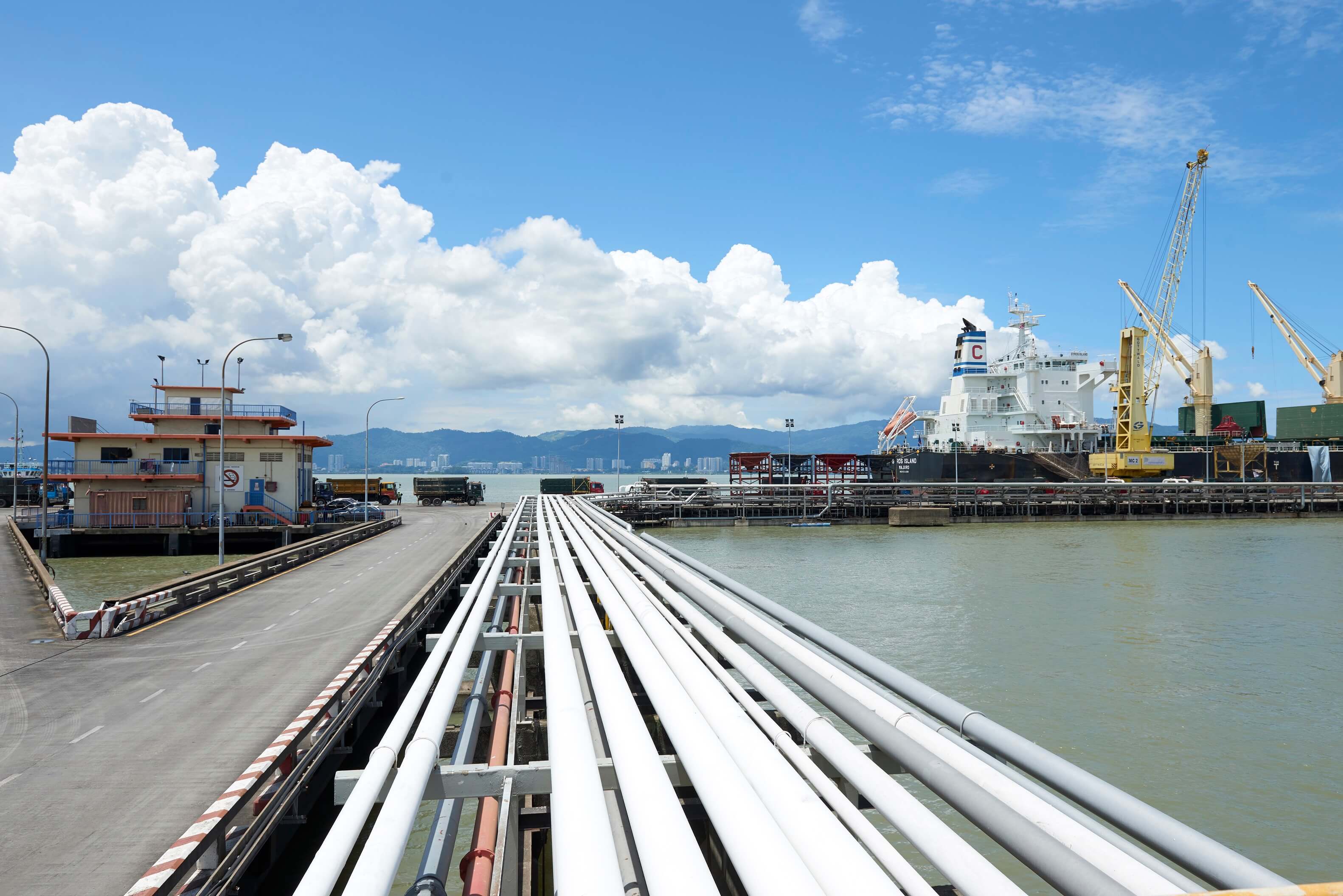

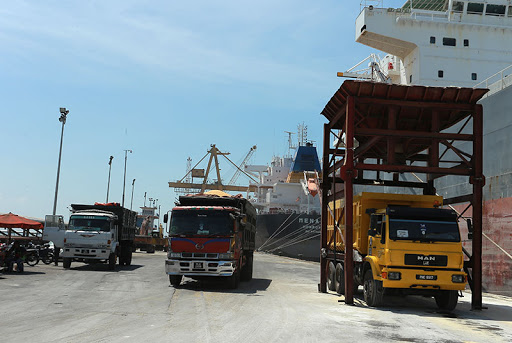

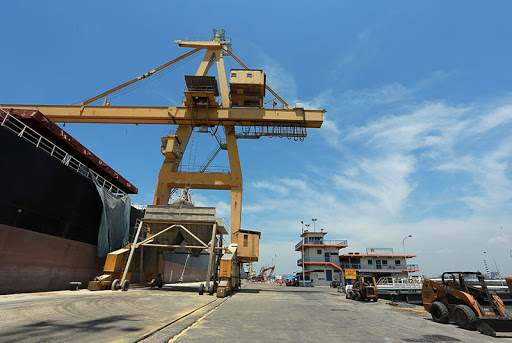

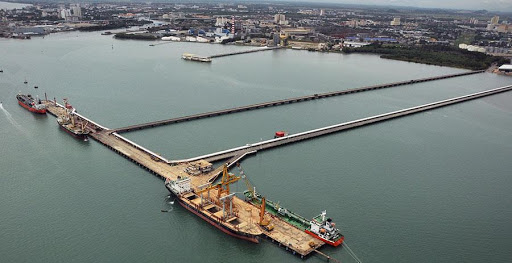

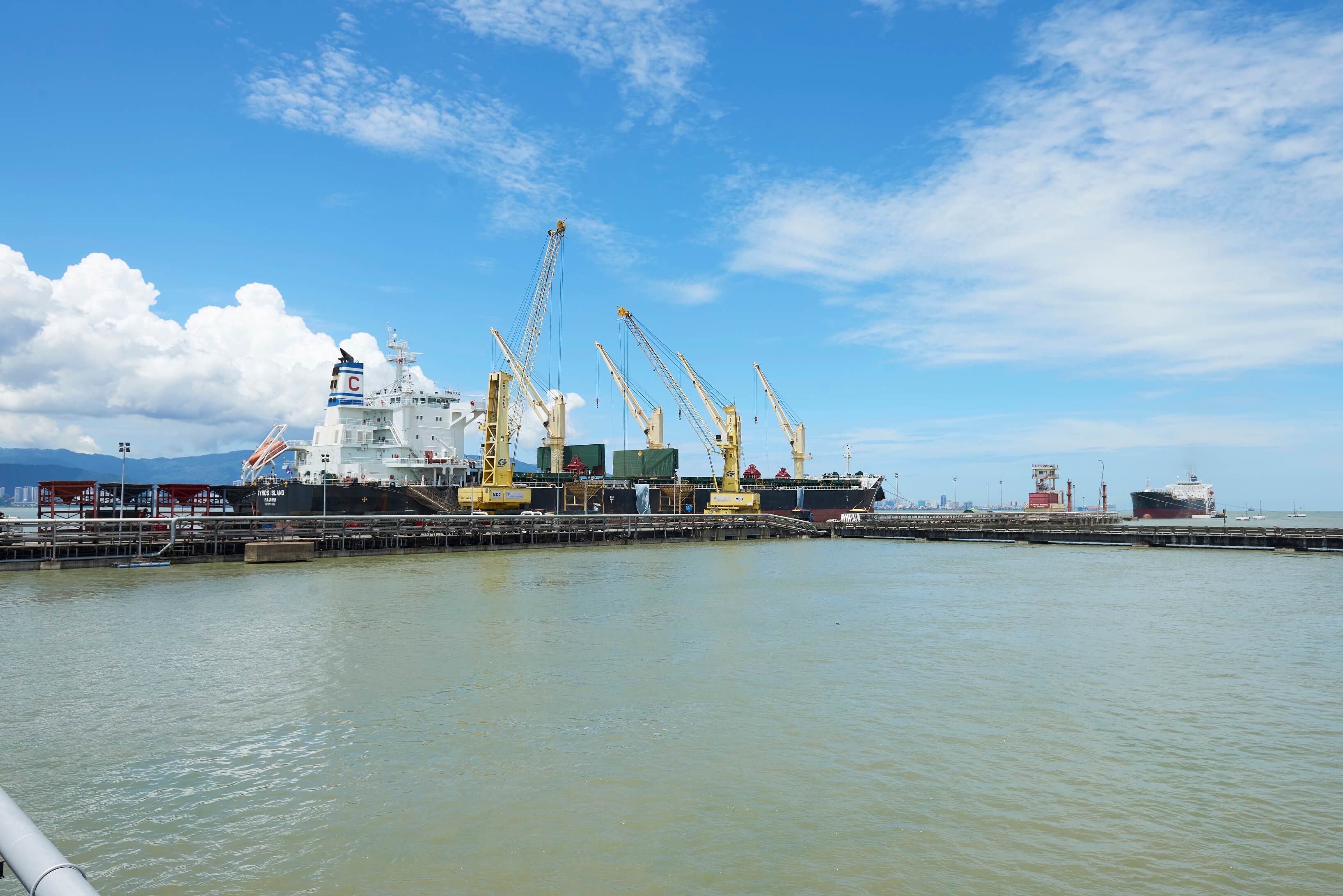

(3) BCT PORT IMAGES

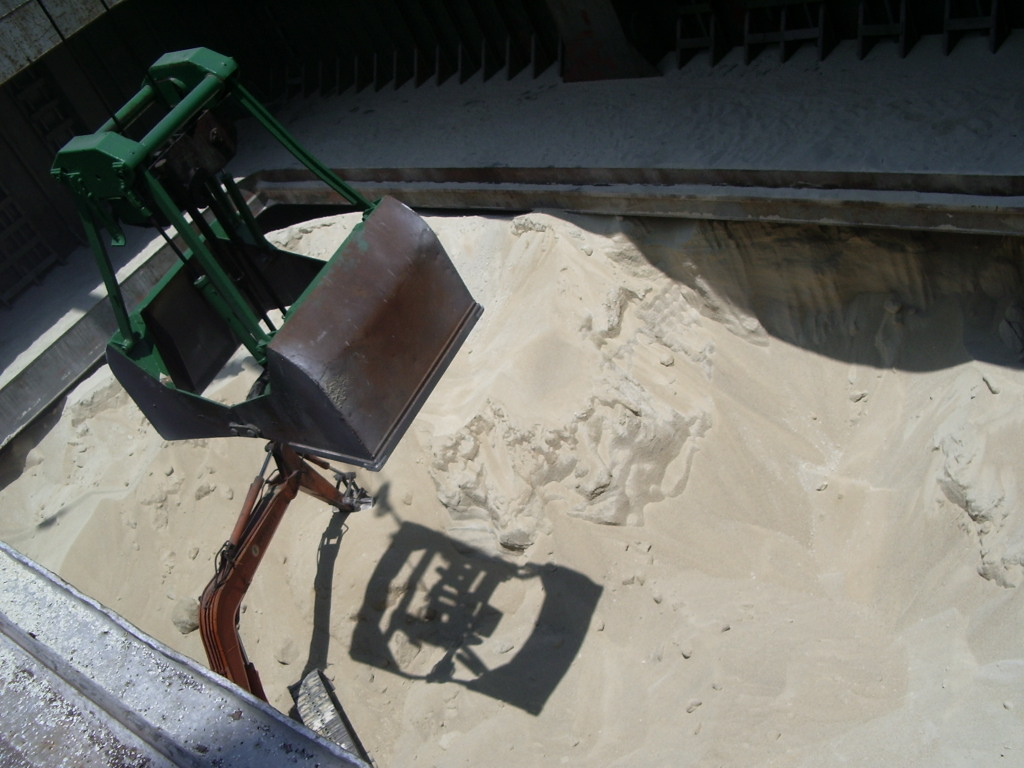

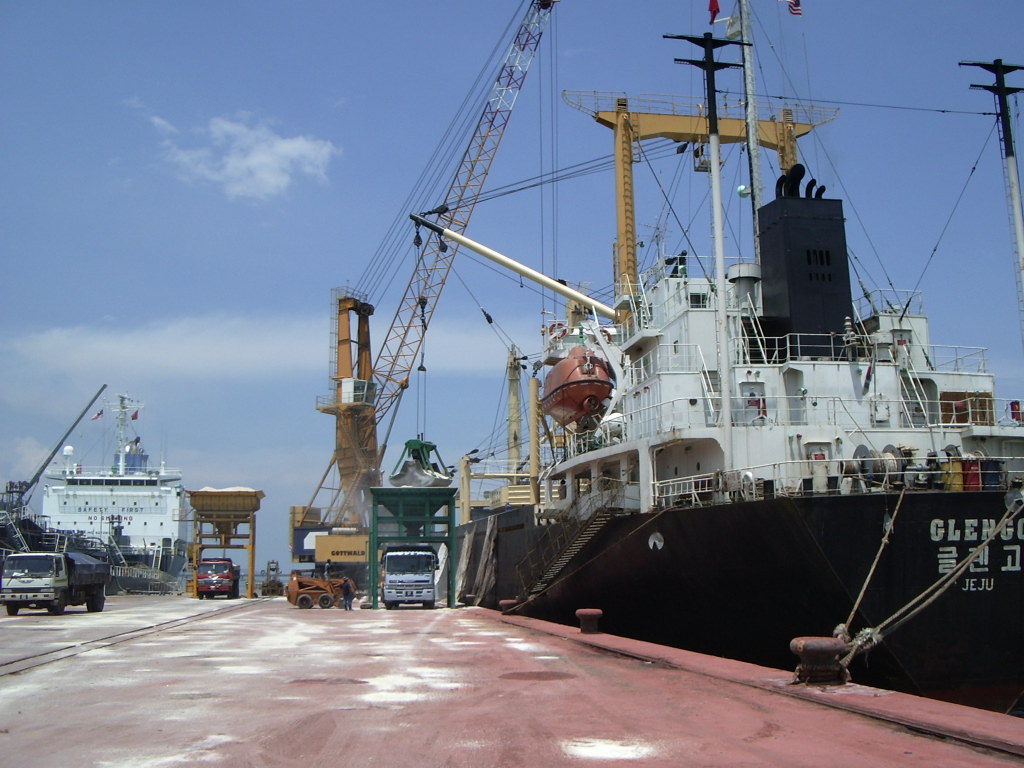

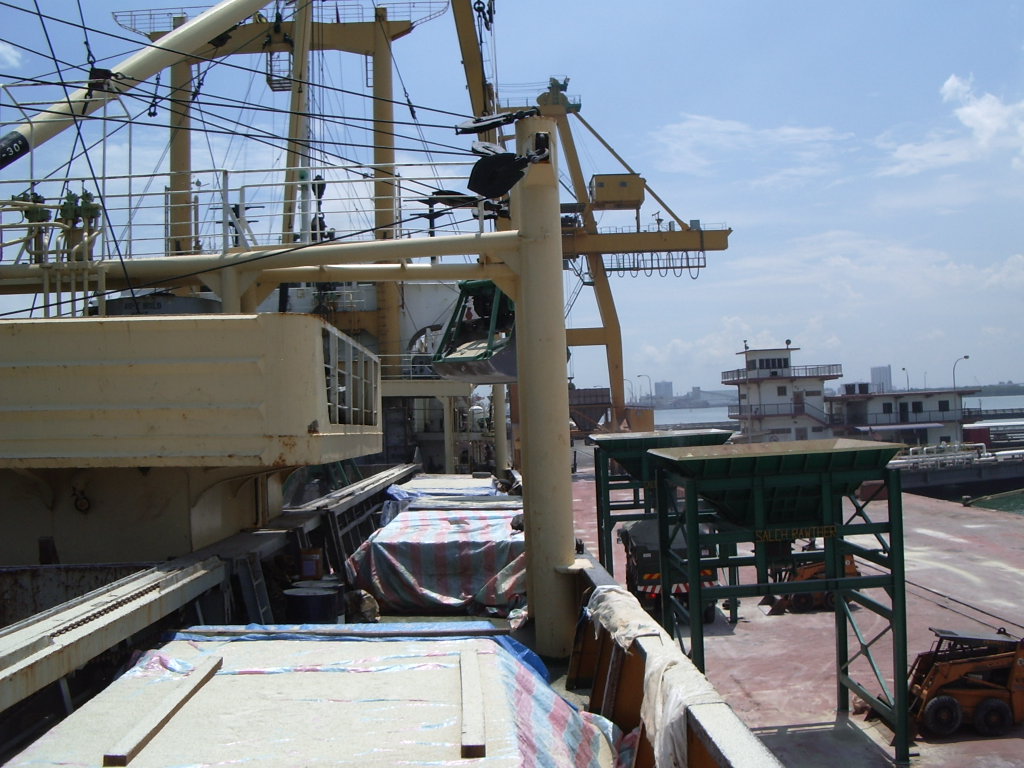

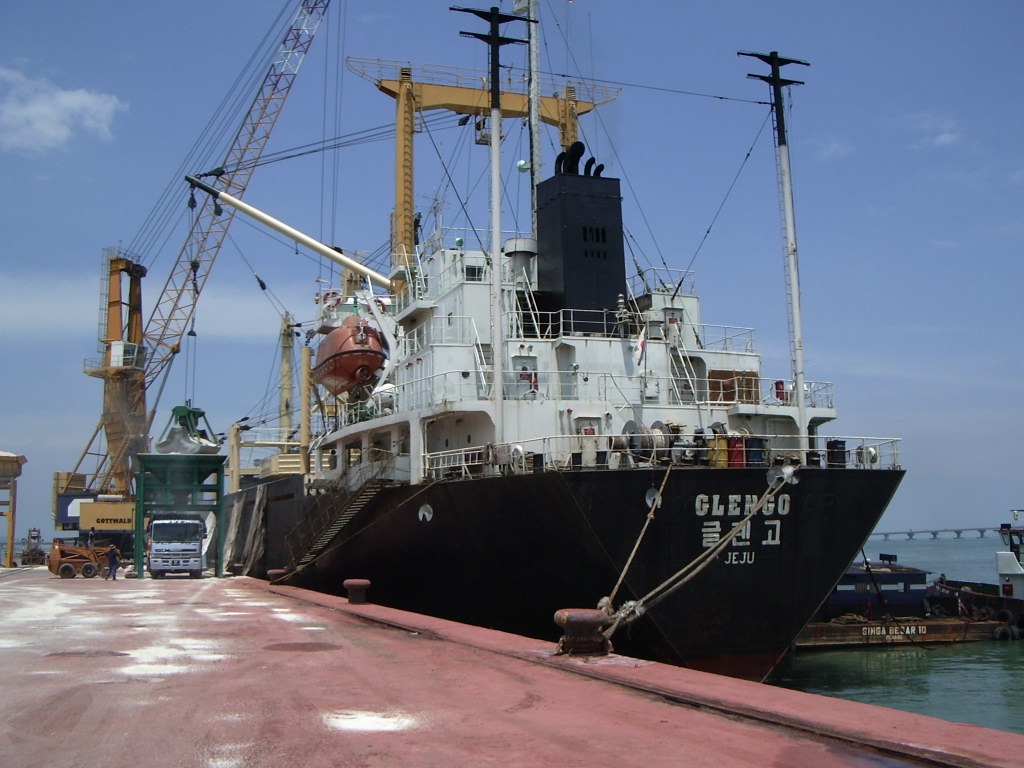

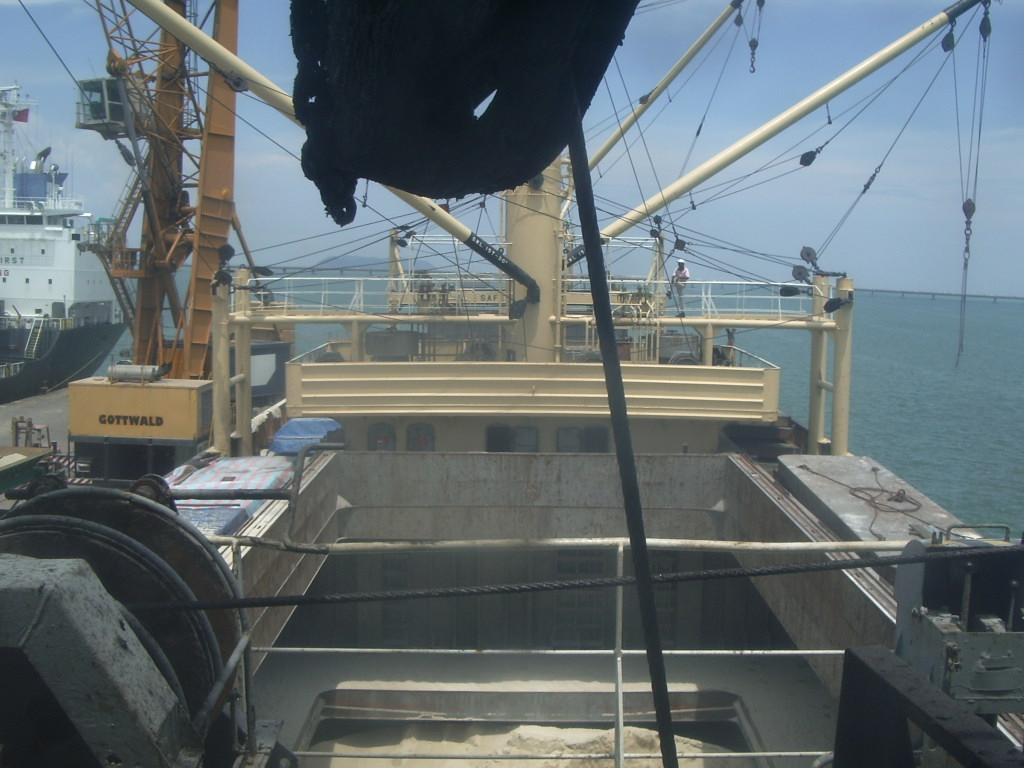

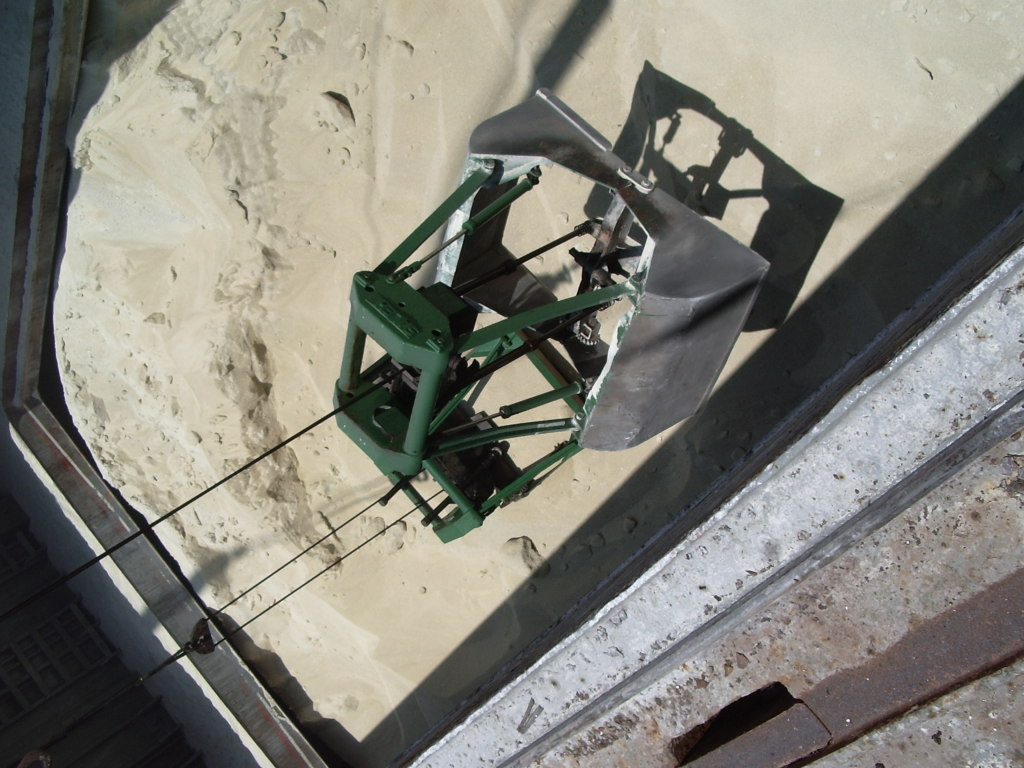

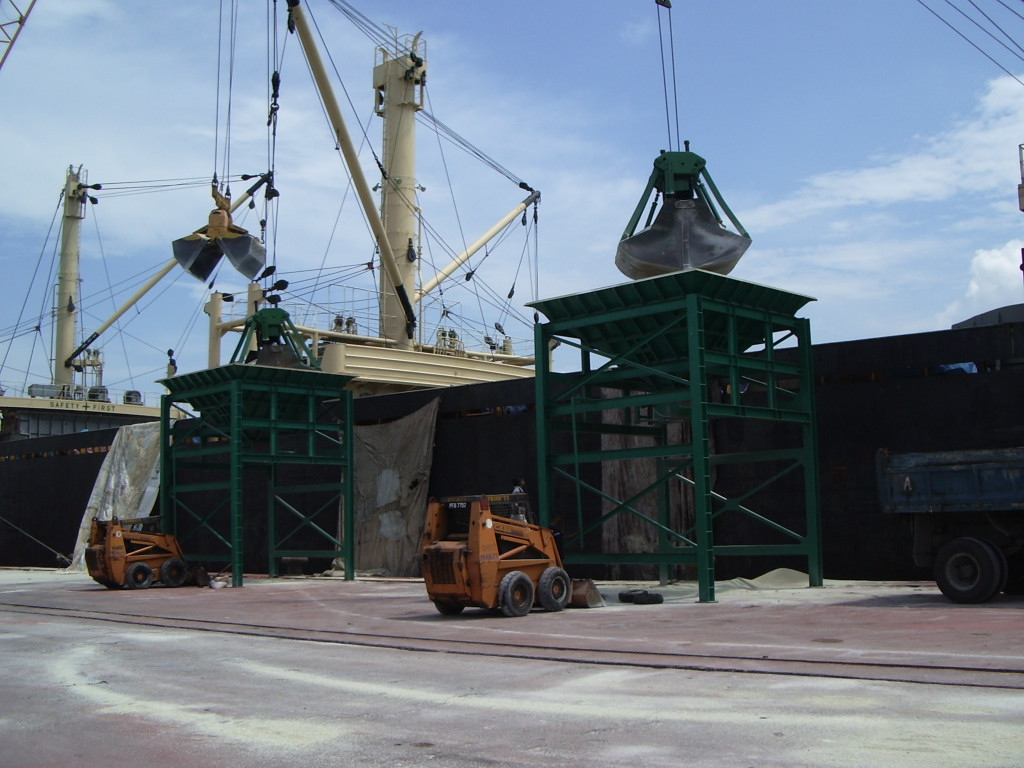

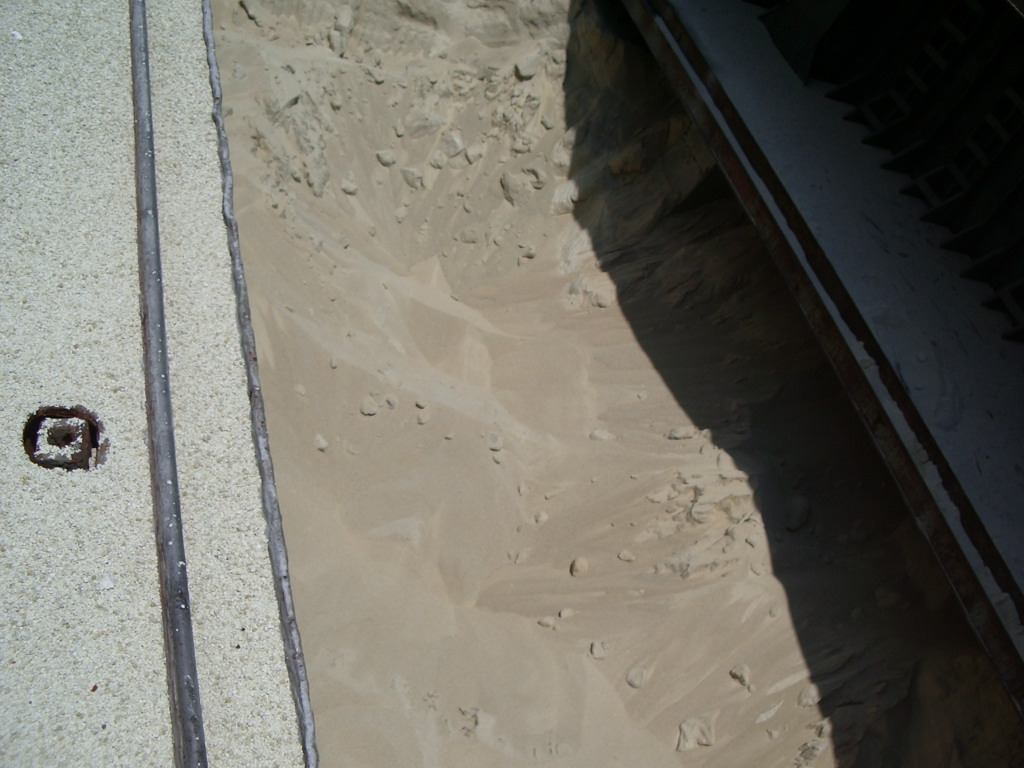

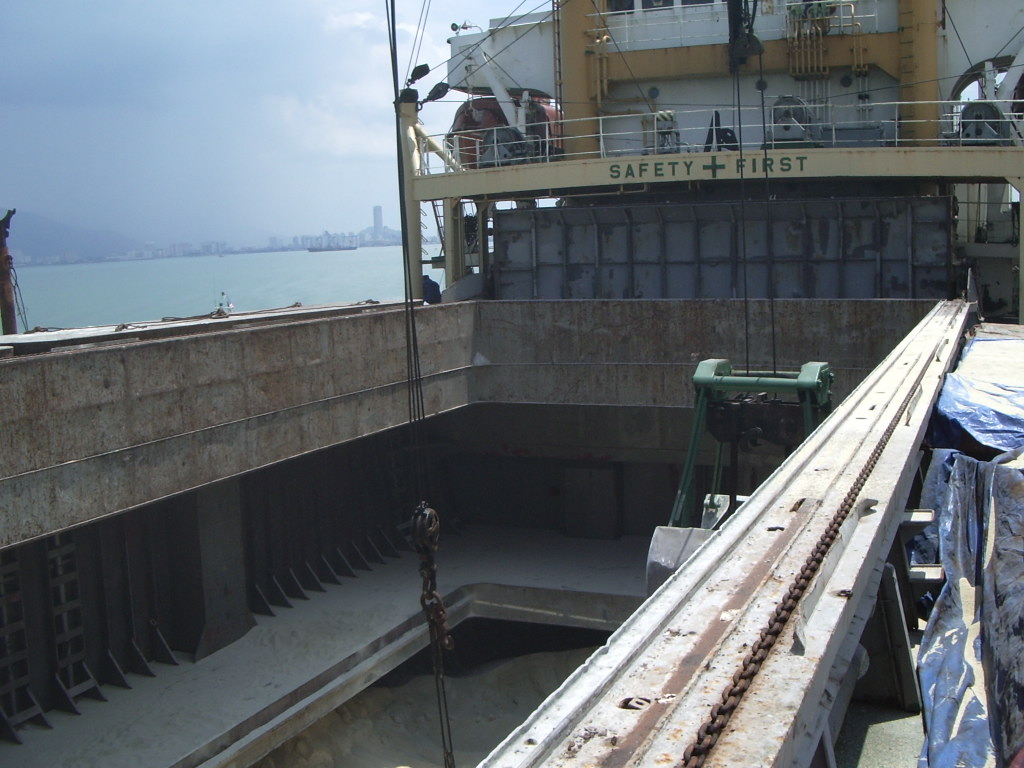

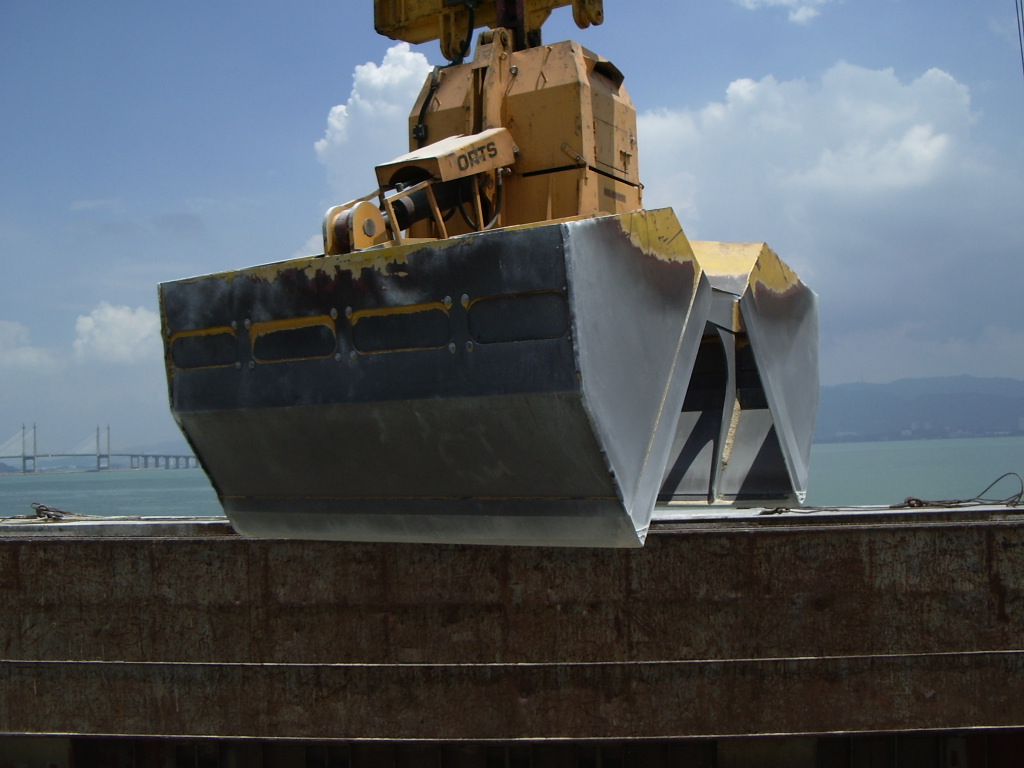

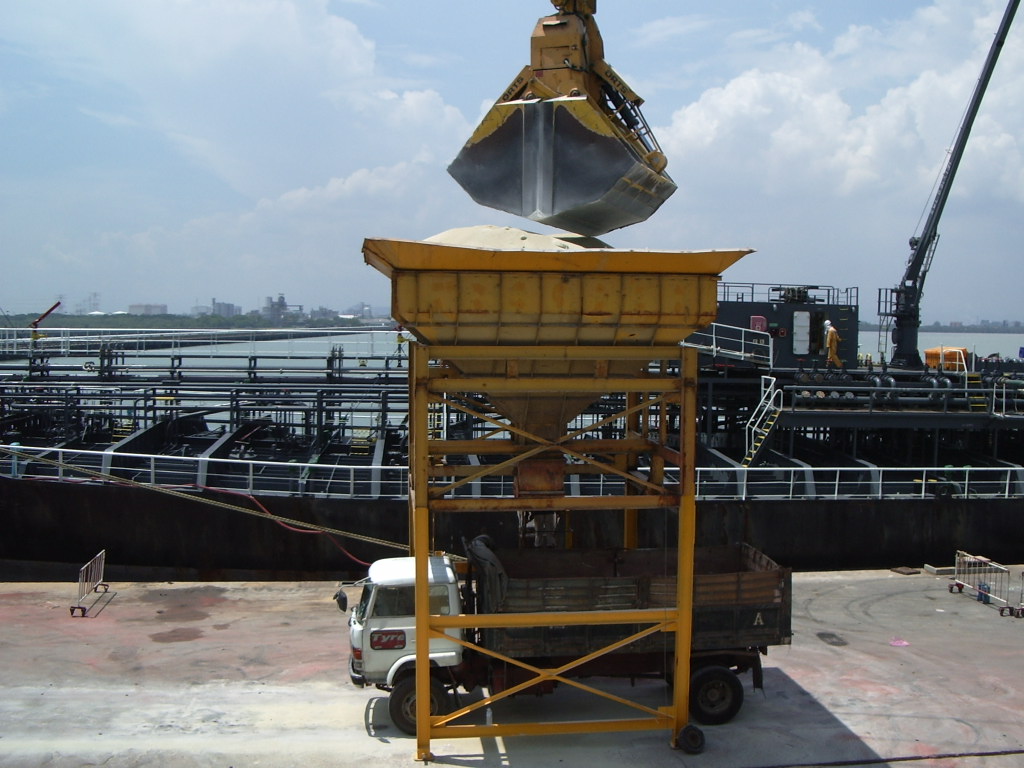

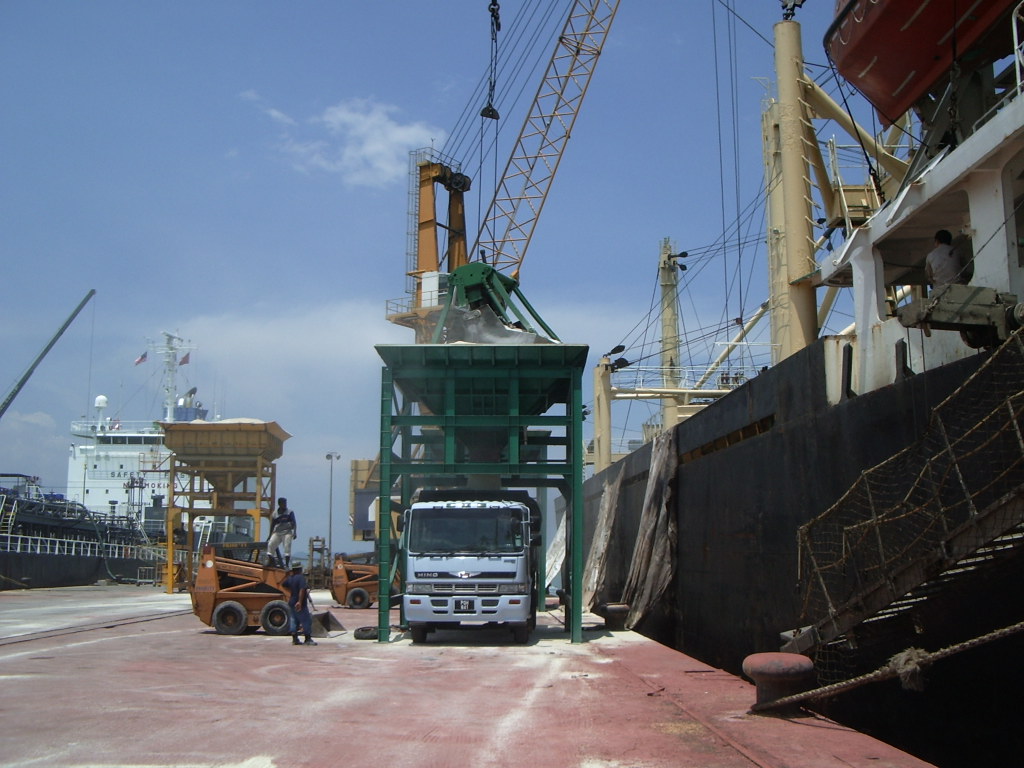

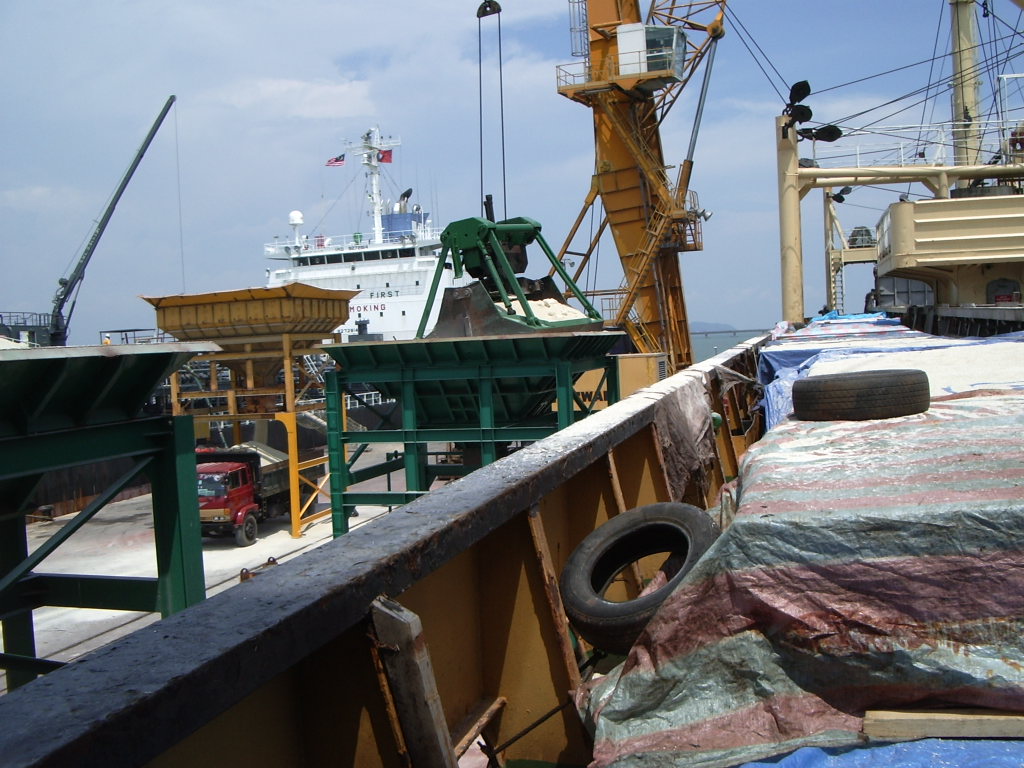

(5) DISCHARGE FERTILIZER IN BULK AT BCT (MV GLENGO)
