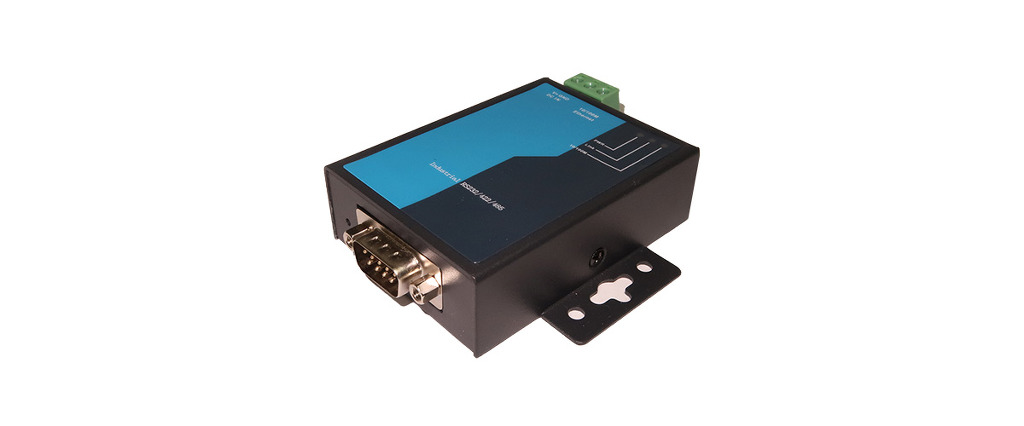

MC-8501C: RS-232/422/485 *1Port 이더넷 시리얼 디바이스 서버
-특 징
-RS-232/422/485 Serial Interface와 10/100Tx Interface 통신 지원
-15KV ESD 보호 기능 내장
-TCP Server,TCP Client,UDP,Remote Pair mode 지원
-RS-232/422/485 Software로 선택가능
-이더넷 시리얼 디바이스 서버
-Standard TCP/IP Socket application access
-IP,ICMP,UDP,TCP,HTTP,Telnet,DNS,DHCP.
-Web Browser,Telnet Mode 설정 지원
-10/100M Fast Ethernet Half or Full duplex auto negotiation
-Supports 4 hosts stimultaneous connection
-Specification
-Ethernet Network Interface
Description
| Specification
| Standard
| IEEE802.3-10BaseT, IEEE802.3u-100BaseTX,Auto MDI/MDI-X
| Port
| 10/100Base-Tx * 1Port
| Port Connector
| RJ-45 Connector
| Protection
| 2KV Isolation Protection,15KV ESD Protection
|
-Serial Interface
Serial Port
| RS-232/422/485*1Port
| RS-232
| Tx,RX,GND,RTS,CTS,DTR,DSR
| RS-422
| Tx,+,Tx-,Rx+,Rx-,2/4Wire,Half/Full Duplex Operation
| RS-485
| Data A+, Data B-,2wire, Half Duplex Mode
| Flow Control
| RTS/CTS,DTR/DSR,XON/XOFF
| Data Baud rate
| 300bps~460kbps
| Data bit
| 7,8
| Stop bit
| 1, 1.5, 2
| Parity Bit
| None, Odd, Even,Space,Mark
| Port Connector
| RS-232/422/485,DB9 Connector
| Protection
| 15KV ESD Protection
|
-Software Operation Mode
Network Protocol
| TCP.IP,DHCP,Telnet,UDP,HTTP,ICMP,DNS,ARP
Modbus RTU,Modbus TCP
| Operation Mode
| TCP Server,TCP Client,UDP,Pair Connection mode
| Configuration Setting
| Web Browser,Telnet mode
| Communication mode
| TCP/IP Socket 통신,Virtual COM
| OS support
| Windows/XP/2003/Win 7/8/10 32/64 bit
|
-환경
동작온도
| -15℃~70℃
| 보관온도
| -20℃~80℃
| 습 도
| 5~95% (non-condensing)
| 전 원
| DC 5V,1A Socket
| 크 기
| 76.6x82x22(WxDxH)mm,Desk type
|
-Ordering Information
Model
| Specification
| MC-8501A
| RS-232*1Port,10/100Tx*1Port
| MC-8501B
| RS-422/485*1Port,10/100Tx * 1Port
| | MC-8501C | RS-232/422/485*1Port,10/100Tx * 1Port
|
|
