ME-300B50

Low/Mid Frequency Loudspeaker

정격50W,최대100W / ME300B50

12", 삼미 중/저음 뮤직 스피커

기타 앰프,노래방 장착, 악기 앰프등 사용

* 제품의 특징 및 사양 ( ME300B50 )

- Low/Mid Frequency Loudspeaker *Impedance : 8 ohms

- Power Nominal : 50 Watt *Max 100 Watt

- 대구경 중,저음 뮤직 스피커 기타 앰프 및 이동식 노래방 장착용 스피커 등 다수 사용.

LOW/MID FREQUENCY LOUDSPEAKER	IMPEDANCE: 8homs
	Power Nominal: 50WATT
	MAX: 100WATT

Musical Instrument Speaker Series


Low/Mid Frequency Loudspeaker
	- impedance : 8 Ohms
	- Power Nominal : 50Watt
	- Max : 100Watt

■ Specification
Nominal Diameter	300mm (12inch)
SPL	98.0 dB/W/M

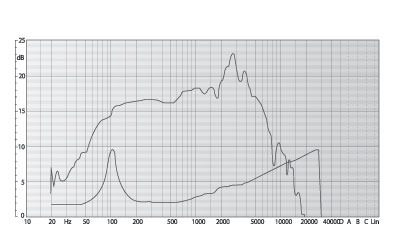

Frequency Range	95.9~5,000 Hz
Voice Coil Diameter	39.05mm (1.54inch)
Voice Coil Material	Copper
Magnet Weight	1.10Kg (38.8oz)
Piston Diameter	255.0mm (10.04inch)
Magnet Gap Depth	7.0mm (0.28inch)
Coil Winding Depth	8.5mm (0.33inch)
■ Thiele/ Small Parameter
D.C. Resistance	6.3 Ohm
Fs	95.9 Hz
Qts/ Qes/ Qms	1.2949/1.4358/13.2
Vas	27.03L (0.95ft³)
Sd	0.0511m²(79.21in²)
Xmax	1.0mm(0.04in)
Half-Space Reference Efficiency	1.59 %
Efficiency Bandwidth Product	66.79 Hz
Le	0.68 mH
Cms	0.00007 m/N
BL	9.92 TM
Rms	1.27 Kg/s
Vd	51.1 ccm
■ Mounting Information
Overall Diameter	310.0mm (12.20inch)
Bolt Circle Diameter	292.0mm (11.50inch)
Baffle Cutout Diameter	275.0mm (10.83inch)
Depth	131.0mm (5.16inch)
Net Weight	3.5Kg (7.72lb)
