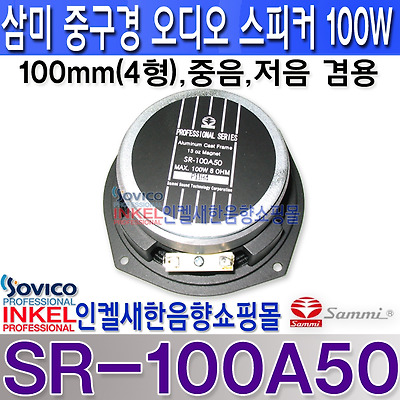

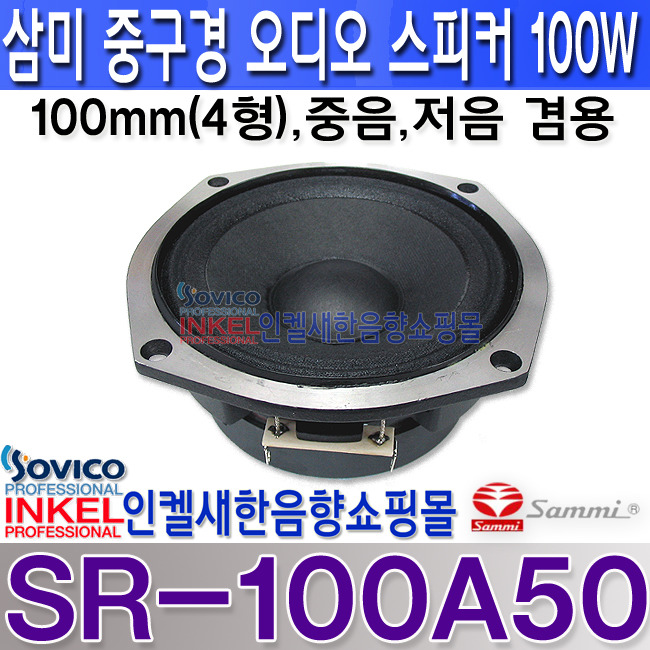

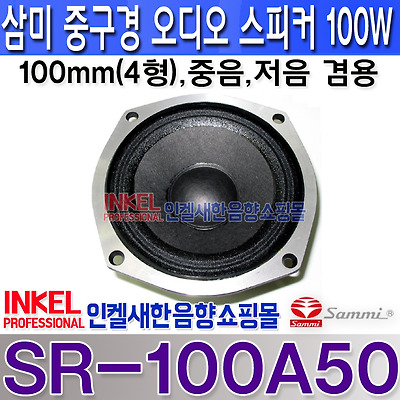

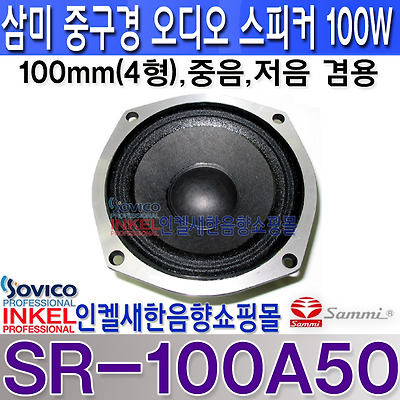

SR-100A50

Sound Reinforcement Speaker

삼미 100mm(4") 중구경 중음,저음스피커

정격출력 50W,최대출력 100W,8ohm

오디오,하이파이 스피커,이벤트 스피커,공연장스피커등

* 제품의 사양 및 특징 ( SR100A50 )

- Mid Frequency Loudspeaker

- Impedance : 8 ohms

- Power Nominal : 50 Watt *Max 100 Watt

- 중구경 중음용 스피커 이벤트,공연장 등 다수 사용.

■ Specification
Nominal Diameter	100mm (4inch)
SPL	94.0 dB/W/M

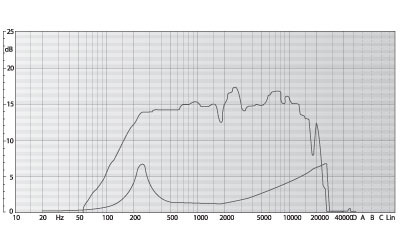

Frequency Range	189.7~17,000 Hz
Voice Coil Diameter	29.56mm (1.16inch)
Voice Coil Material	AL
Magnet Weight	0.36Kg (12.73oz)
Piston Diameter	88.0mm (3.46inch)
Magnet Gap Depth	5.0mm (0.20inch)
Coil Winding Depth	5.0mm (0.20inch)
■ Thiele/ Small Parameter
D.C. Resistance	7 Ohm
Fs	189.7 Hz
Qts/ Qes/ Qms	0.9500/ 1.2110/ 4.41
Vas	1.0L (0.04ft³)
Sd	0.0061m²(9.46in²)
Xmax	1.0mm(0.04in)
Half-Space Reference Efficiency	0.54 %
Efficiency Bandwidth Product	156.65 Hz
Le	0.3 mH
Cms	0.00019 m/N
BL	4.24 TM
Rms	0.88 Kg/s
Vd	6.1 ccm

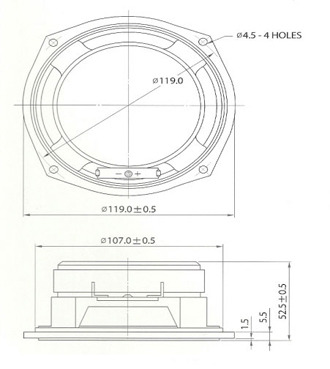

■ Mounting Information
Overall Diameter	119.0mm (4.68inch)
Bolt Circle Diameter	119.0mm (4.68inch)
Baffle Cutout Diameter	107.0mm (4.21inch)
Depth	52.5mm (2.07inch)
Net Weight	0.82Kg (1.81lb)
