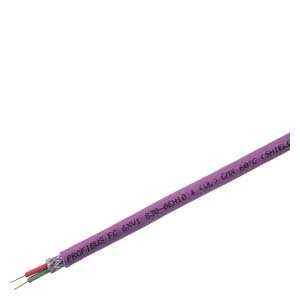

PROFIBUS bus cables 6XV1830-3FH10 6XV18303FH10/6XV1831-2K 6XV18312K/6XV1830-3EH10 6XV18303EH10/6XV1831-2L 6XV18312L

[Lewis]

Order No.	6XV1 830-3FH10	6XV1 831-2K	6XV1 830-3EH10	6XV1 831-2L
Product-type designation
Product description
Acceptability for application
Cable designation
Cable length	-	-	-	-
Electrical data
Damping ratio per length
at 9.6 kHz maximum	2.5 dB/km	3 dB/km	3 dB/km	3 dB/km
at 38.4 kHz maximum	4 dB/km	4 dB/km	4 dB/km	4 dB/km
at 4 MHz maximum	22 dB/km	25 dB/km	25 dB/km	25 dB/km
at 16 MHz maximum	42 dB/km	49 dB/km	49 dB/km	49 dB/km
Impedance
Nominal value	150 Ω	150 Ω	150 Ω	150 Ω
at 9.6 kHz	270 Ω	270 Ω	270 Ω	270 Ω
at 38.4 kHz	185 Ω	185 Ω	185 Ω	185 Ω
for frequency range 3 MHz … 20 MHz	150 Ω	150 Ω	150 Ω	150 Ω
Relative symmetrical tolerance
of the surge impedance at 9.6 kHz	10 %	10 %	10 %	10 %
of the surge impedance at 38.4 kHz	10 %	10 %	10 %	10 %
of the surge impedance at 3 MHz … 20 MHz	10 %	10 %	10 %	10 %
Loop resistance per length maximum	110 Ω/km	133 Ω/km	133 Ω/km	133 Ω/km
Shield resistance per length maximum	9.5 Ω/km	15 Ω/km	14 Ω/km	14 Ω/km
Capacity per length at 1 kHz	28.5 pF/m	28 pF/m	28 pF/m	28 pF/m
Operating voltage RMS value	100 V	100 V	100 V	100 V
Mechanical data
Number of electrical wires	2	2	2	2
Design of shield
Design of the electrical connection FastConnect	Yes	Yes	Yes	Yes
Outer diameter
of the inner conductor	0,65 mm	0,67 mm	0,67 mm	0.67 mm
of the wire insulation	2,55 mm	2,56 mm	2,56 mm	2.56 mm
of the inner sheath of the cable	5,4 mm	5,4 mm	5,4 mm	5.4 mm
of the cable sheath	10,8 mm	8 mm	8 mm	8 mm
Symmetrical tolerance of outer diameter of cable sheath	0,5 mm	0.4 mm	0.4 mm	0.4 mm
Outer diameter of the cable sheath Note		-	-	-
Material
of the wire insulation	PE	PE	PE	PE
of the inner sheath of the cable	PVC	FRNC	PVC	PVC
of the cable sheath		PUR	PUR	PUR
Note	PVC (cable casing), PE (additional outer sheath)	-	-	-
Color
of the insulation of data wires	red / green	red / green	red / green	red / green
of the cable sheath	Black	Violet		Violet
Bending radius
with single bend	41 mm	40 mm	40 mm	40 mm
with multiple bends	81 mm	120 mm	120 mm	120 mm
with continuous bending	-	-	-	-
Number of bending cycles	-	-	3 000 000	3 000 000
Note	-	-	For use in cable carriers, for 3 million bending cycles with a bending radius of 120 mm (15x D) and an acceleration of 4 m/s²	For use in cable carriers, for 3 million bending cycles with a bending radius of 120 mm (15x D) and an acceleration of 4 m/s²
Number of torsion cycles with torsion by ± 180° on 1 m cable length	-	-	-	-
Traction stress maximum	100 N	100 N	100 N	100 N
Weight per length	117 kg/km	70 kg/km	77 kg/km	77 kg/km
Permitted ambient conditions
Ambient temperature
during operating	-40 … +60 °C	-20 … +60 °C	-40 … +60 °C	-40 … +60 °C
during storage	-40 … +60 °C	-40 … +60 °C	-40 … +60 °C	-40 … +60 °C
during transport	-40 … +60 °C	-40 … +60 °C	-40 … +60 °C	-40 … +60 °C
during installation	-40 … +60 °C	-40 … +60 °C	-40 … +60 °C	-40 … +60 °C
Ambient condition for (standard) operation mode	-	Limited segment length (see manual for PROFIBUS networks)	Limited segment length (see manual for PROFIBUS networks)	Limited segment length (see manual for PROFIBUS networks)
Protection class IP	-	-	-	-
Burning behaviour
Chemical resistance
to mineral oil
to grease
to water	-	-	-	-
Radiological resistance to UV radiation
Product properties, functions, components general
Product feature
halogen-free	No	Yes	No	No
[not supplied - silicon-free]	Yes	Yes	Yes	Yes
Cable length
at max. 1.5 Mbit/s	-	-	-	-
at max. 12 Mbit/s	-	-	-	-
Standards, specifications, approvals
UL listing with 300 V rating
UL style with 600 V rating
Verification of suitability
CE mark	Yes	Yes	Yes	Yes
UL-registration	-	-	-	-
RoHS conformity	Yes	Yes	Yes	Yes
Marine classification association
Germanische Lloyd (GL)	No	No	No	No
Lloyds Register of Shipping (LRS)	No	No	No	No
